ADAM Audio S3V Premium Vertical Active 3-Way Midfield Monitor (Single)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

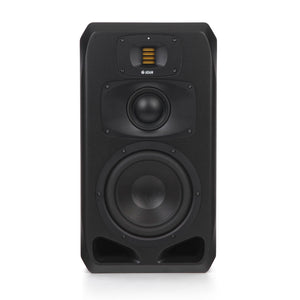

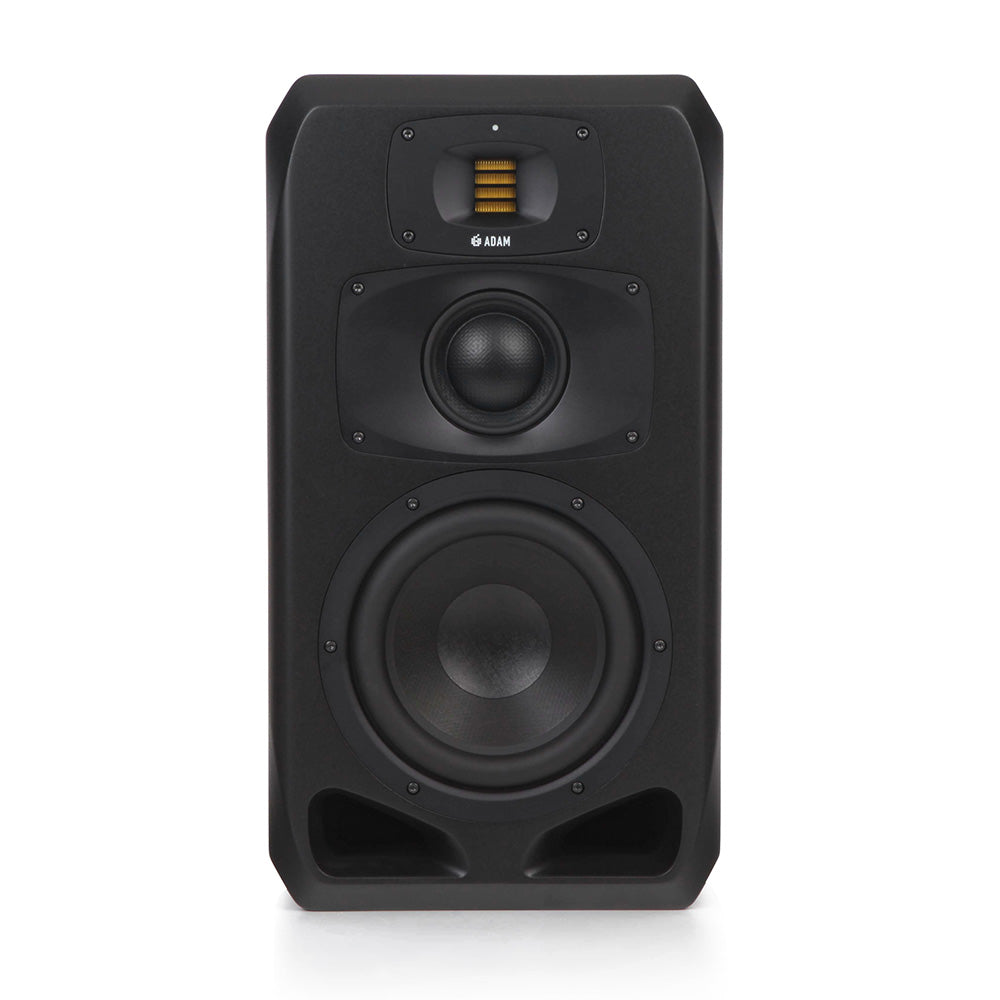

The S3V is a three-way studio monitor optimized for vertical use and designed primarily for midfield applications, although it may also be used in more compact listening environments. Bass frequencies from 32 Hz to 250 Hz are handled by ADAM Audio's entirely new 9-inch Extended Linear Excursion (ELE) LF driver, which incorporates the company's equally groundbreaking Symmetrical Magnet Assembly (SMA) and delivers a powerful, extremely accurate low end extending right down into the sub-bass region. Mid-range and HF information is reproduced with equally analytical precision thanks to the combination of ADAM Audio's newly developed 4-inch DCH mid-range driver and the highly refined S-ART folded-ribbon HF driver. Together with the brand-new HPS waveguide, the latter offers high-frequency reproduction with an extremely broad sweet spot with fine, highly detailed imaging and a natural-sounding sense of depth.
The S Series' custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers' DSP functions via a software front-end.
The S3V's built-in amplification is generously specified, comprising Class D units for the bass and mid-range drivers (500 W and 300W RMS respectively) and a 50 W Class A/B amplifier for the S-ART tweeter.
Offering flawless reproduction of audio frequencies between 32 Hz and 50 kHz, the S3V is a standout offering for anyone demanding highly accurate imaging and localization from their reference monitors.
Features:
- German Handmade Precision S-ART Tweeter with HPS Waveguide
- 4" Dome / Cone Hybrid (Carbon Composite)
- 9" Woofer (Hexacone)
- Amp. Power RMS: 850 W
- Frequency Response: 32 Hz - 50 kHz
- Max. SPL Per Pair at 1 m: ?124 dB
- AES3 Digital Inputs And Various Expansion Options
| WOOFER | |
| Number | 1 |
| Basket | ¯ 9Ò (223 mm) |
| Voice Coil | ¯ 2" (50 mm) |
| Cone Material | HexaCone |
| MIDRANGE | |
| Number | 1 |
| Type | Dome / Cone Hybrid |
| Basket | ¯ 4" (100 mm) |
| Voice Coil | ¯ 2.4" (60 mm) |
| Cone Material | Carbon Composite |
| TWEETER | |
| Number | 1 |
| Type | S-ART |
| Diaphragm Area | 4 inch_ (2420 mm_) |
| Equiv. Diaphragm ¯ | 2" (56 mm) |
| Velocity Transform Ratio | 4:1 |
| Diaphragm Weight | 0.17 g |
| Waveguide | HPS |
| BUILT-IN AMPLIFIERS | |
| Number | 3 |
| Woofer | 1 |
| Type | PWM |
| Amp. Power RMS | 500 W |
| Midrange | 1 |
| Type | PWM |
| Amp. Power RMS | 300 W |
| Tweeter | 1 |
| Type | A/B |
| Amp. Power RMS | 50 W |
| CONTROL OPTIONS | |
| Input Sensivity | Adjustable |
| Parametric EQs | 6 |
| Room Compensation High-Shelf EQ | 1 |
| Room Compensation Low-Shelf EQ | 1 |
| Preset Memories | 5 |
| Delay | 0 ms to 5 ms |
| INPUT CONNECTORS | |
| Analog | XLR Input Impedance 48 kOhm Max. Input Level +24 dBu |
| Digital | AES3 |
| GENERAL DATA | |

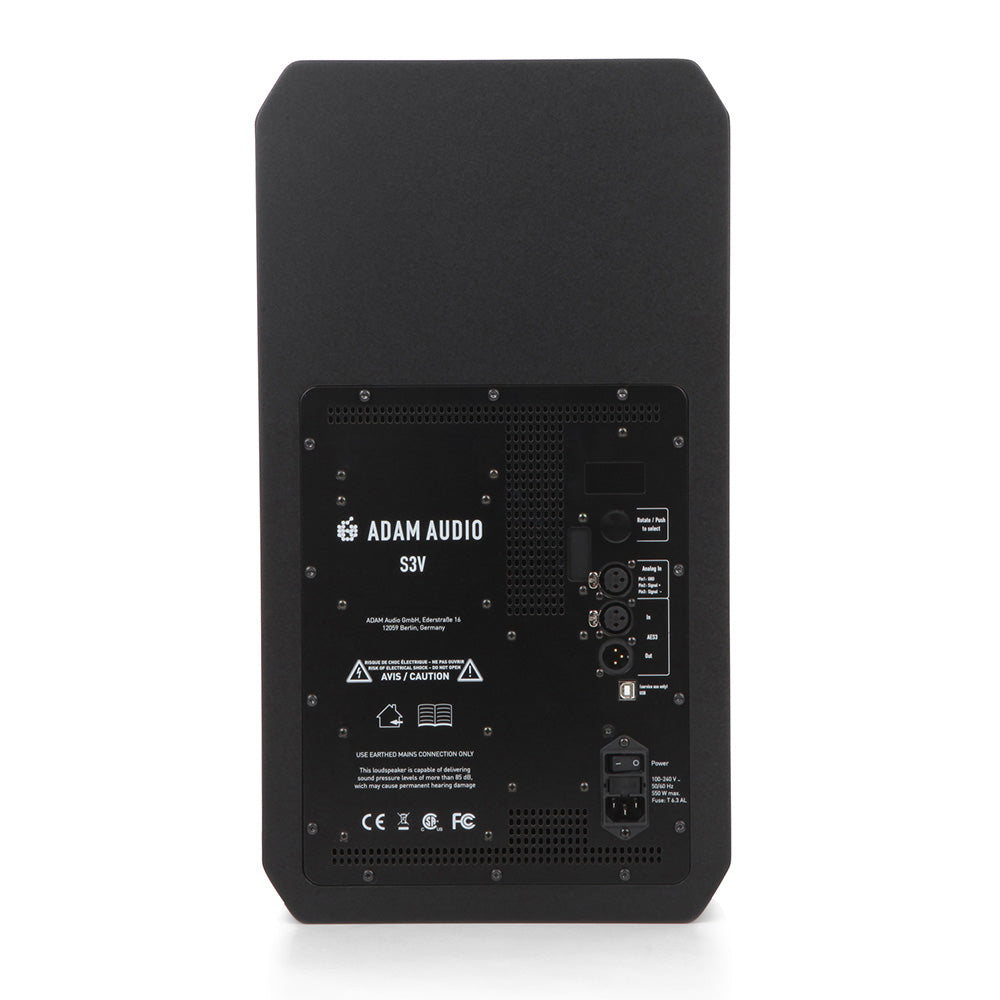

| Panel | Rear |
| Frequency Response | 32 Hz - 50 kHz |
| THD | > 100 Hz ²0.4 % |
| Max. SPL per pair at 1 m | ³124 dB |
| Crossover Frequencies | 250 Hz / 3 kHz |
| Weight | 55.0 lb (25.0 kg) |
| Height x Width x Depth | 21.1" (536 mm) x 11.5" (293 mm) x 15.0Ò (380 mm) |
| Warranty | 5 years (2 years warranty plus 3 years optional with product registration) |
| Delivery Contents | Power cord, Manual |
The S3V is a three-way studio monitor optimized for vertical use and designed primarily for midfield applications, although it may also be used in more compact listening environments. Bass frequencies from 32 Hz to 250 Hz are handled by ADAM Audio's entirely new 9-inch Extended Linear Excursion (ELE) LF driver, which incorporates the company's equally groundbreaking Symmetrical Magnet Assembly (SMA) and delivers a powerful, extremely accurate low end extending right down into the sub-bass region. Mid-range and HF information is reproduced with equally analytical precision thanks to the combination of ADAM Audio's newly developed 4-inch DCH mid-range driver and the highly refined S-ART folded-ribbon HF driver. Together with the brand-new HPS waveguide, the latter offers high-frequency reproduction with an extremely broad sweet spot with fine, highly detailed imaging and a natural-sounding sense of depth.
The S Series' custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers' DSP functions via a software front-end.
The S3V's built-in amplification is generously specified, comprising Class D units for the bass and mid-range drivers (500 W and 300W RMS respectively) and a 50 W Class A/B amplifier for the S-ART tweeter.
Offering flawless reproduction of audio frequencies between 32 Hz and 50 kHz, the S3V is a standout offering for anyone demanding highly accurate imaging and localization from their reference monitors.
Features:
- German Handmade Precision S-ART Tweeter with HPS Waveguide
- 4" Dome / Cone Hybrid (Carbon Composite)
- 9" Woofer (Hexacone)
- Amp. Power RMS: 850 W
- Frequency Response: 32 Hz - 50 kHz
- Max. SPL Per Pair at 1 m: ?124 dB
- AES3 Digital Inputs And Various Expansion Options
| WOOFER | |
| Number | 1 |
| Basket | ¯ 9Ò (223 mm) |
| Voice Coil | ¯ 2" (50 mm) |
| Cone Material | HexaCone |
| MIDRANGE | |
| Number | 1 |
| Type | Dome / Cone Hybrid |
| Basket | ¯ 4" (100 mm) |
| Voice Coil | ¯ 2.4" (60 mm) |
| Cone Material | Carbon Composite |
| TWEETER | |
| Number | 1 |
| Type | S-ART |
| Diaphragm Area | 4 inch_ (2420 mm_) |
| Equiv. Diaphragm ¯ | 2" (56 mm) |
| Velocity Transform Ratio | 4:1 |
| Diaphragm Weight | 0.17 g |
| Waveguide | HPS |
| BUILT-IN AMPLIFIERS | |
| Number | 3 |
| Woofer | 1 |
| Type | PWM |
| Amp. Power RMS | 500 W |
| Midrange | 1 |
| Type | PWM |
| Amp. Power RMS | 300 W |
| Tweeter | 1 |
| Type | A/B |
| Amp. Power RMS | 50 W |
| CONTROL OPTIONS | |
| Input Sensivity | Adjustable |
| Parametric EQs | 6 |
| Room Compensation High-Shelf EQ | 1 |
| Room Compensation Low-Shelf EQ | 1 |
| Preset Memories | 5 |
| Delay | 0 ms to 5 ms |
| INPUT CONNECTORS | |
| Analog | XLR Input Impedance 48 kOhm Max. Input Level +24 dBu |
| Digital | AES3 |
| GENERAL DATA | |
| Panel | Rear |
| Frequency Response | 32 Hz - 50 kHz |
| THD | > 100 Hz ²0.4 % |
| Max. SPL per pair at 1 m | ³124 dB |
| Crossover Frequencies | 250 Hz / 3 kHz |
| Weight | 55.0 lb (25.0 kg) |
| Height x Width x Depth | 21.1" (536 mm) x 11.5" (293 mm) x 15.0Ò (380 mm) |
| Warranty | 5 years (2 years warranty plus 3 years optional with product registration) |
| Delivery Contents | Power cord, Manual |
