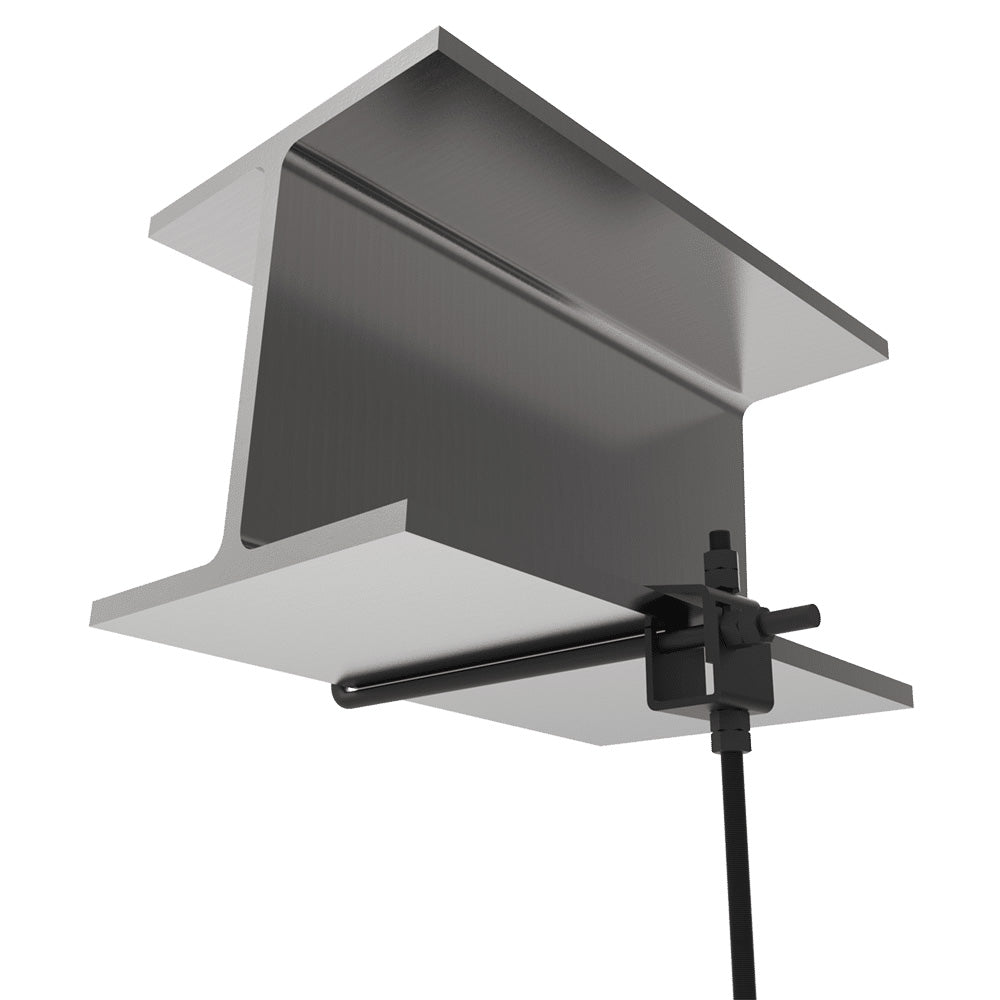

Adaptive Technologies BC-2824-12 - Speaker Rigging Offset Channel Beam Clamp (12 Inch Offset)

Standard, pre-engineered channel style beam clamps anchor to a building's structure and offer a safe and predictable method of rigging grids and other objects from overhead. This hook style beam clamp is adjustable and mounts flush underneath the building's I-Beam's flange. Use the BC-2824-series hook style beam clamp to provide a load rated overhead rigging point from structural I-Beams with widths ranging between 2" and 6", 6" and 9" or 9" and 12".

This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches from overhead and a hand wrench is all that is required to secure this clamp. The beam flanges must be parallel to the floor.secure this clamp. The beam flanges must be parallel to the floor.

Features:

• For beam flange widths between 9" and 12"
• Accommodates _ - 13 threaded rod.
• For overhead vertical suspension applications.
