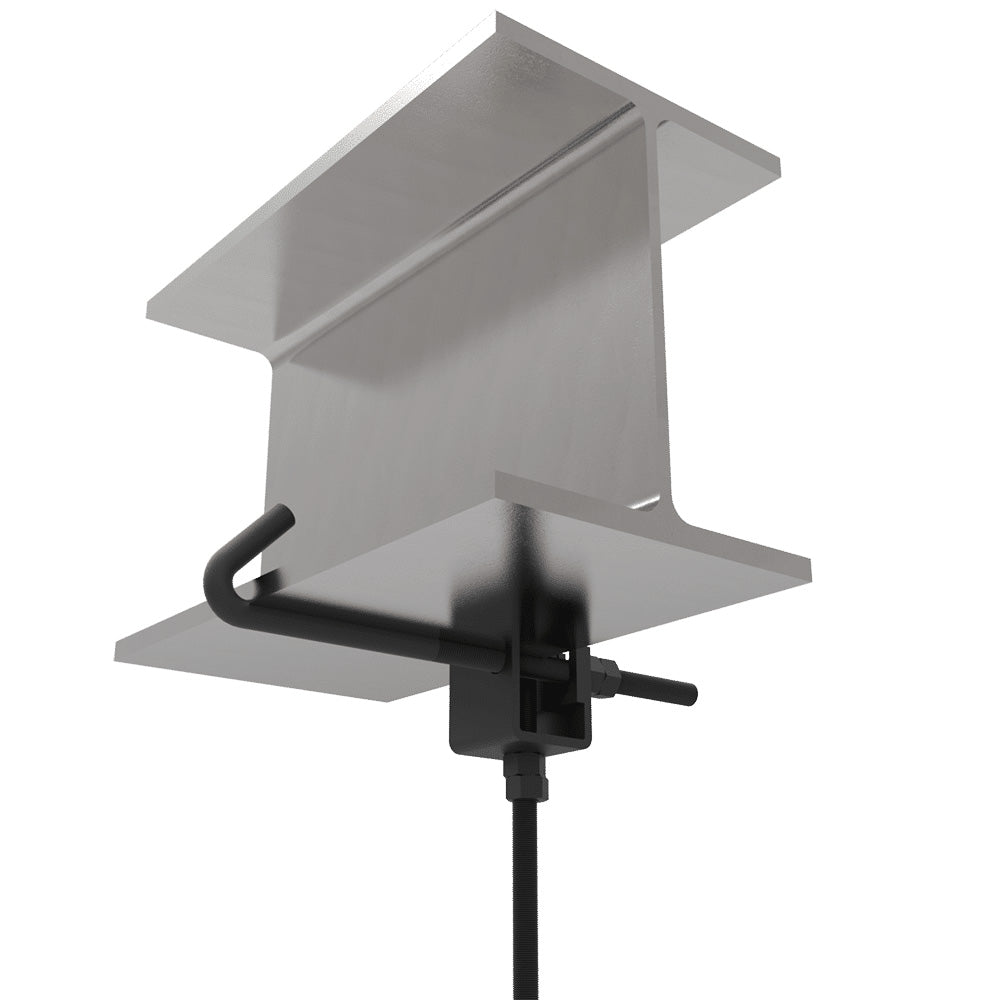

Adaptive Technologies BC-2824-9 - Speaker Rigging Offset Channel Beam Clamp (9 Inch Offset)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Standard, pre-engineered channel style beam clamps anchor to a building's structure and offer a safe and predictable method of rigging grids and other objects from overhead. This hook style beam clamp is adjustable and mounts flush underneath the building's I-Beam's flange. Use the BC-2824-series hook style beam clamp to provide a load rated overhead rigging point from structural I-Beams with widths ranging between 2" and 6", 6" and 9" or 9" and 12". This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches from overhead and a hand wrench is all that is required to secure this clamp. The beam flanges must be parallel to the floor.
Features:
- For beam flange widths between 6" to 9"
- Accommodates _ - 13 threaded rod.
- For overhead vertical suspension applications.
| Material | Structural Steel Grade B7 Threaded Rod |
| Finish | Bright Zinc |
| Color | Silver |
| Design Factor | 7:1 |
| Working Load Limit | 178.5 lbs / 81.1 Kg |
| Shipping Weight | 1.25 lbs / .57 Kg |
| Contents | 1 pc Beam Clamp 6 pcs Hex Nut, _-13 1 pc 12" All Threaded Rod |
Standard, pre-engineered channel style beam clamps anchor to a building's structure and offer a safe and predictable method of rigging grids and other objects from overhead. This hook style beam clamp is adjustable and mounts flush underneath the building's I-Beam's flange. Use the BC-2824-series hook style beam clamp to provide a load rated overhead rigging point from structural I-Beams with widths ranging between 2" and 6", 6" and 9" or 9" and 12". This beam clamp model provides a fast, easy and safe way to rig direct loads, bridles and hitches from overhead and a hand wrench is all that is required to secure this clamp. The beam flanges must be parallel to the floor.
Features:
- For beam flange widths between 6" to 9"
- Accommodates _ - 13 threaded rod.
- For overhead vertical suspension applications.
| Material | Structural Steel Grade B7 Threaded Rod |
| Finish | Bright Zinc |
| Color | Silver |
| Design Factor | 7:1 |
| Working Load Limit | 178.5 lbs / 81.1 Kg |
| Shipping Weight | 1.25 lbs / .57 Kg |
| Contents | 1 pc Beam Clamp 6 pcs Hex Nut, _-13 1 pc 12" All Threaded Rod |
