Adaptive Technologies BC-W7-12-9 - Rigging Wood Beam Suspension Bracket (7-12" by 9" / Swivel Eye)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

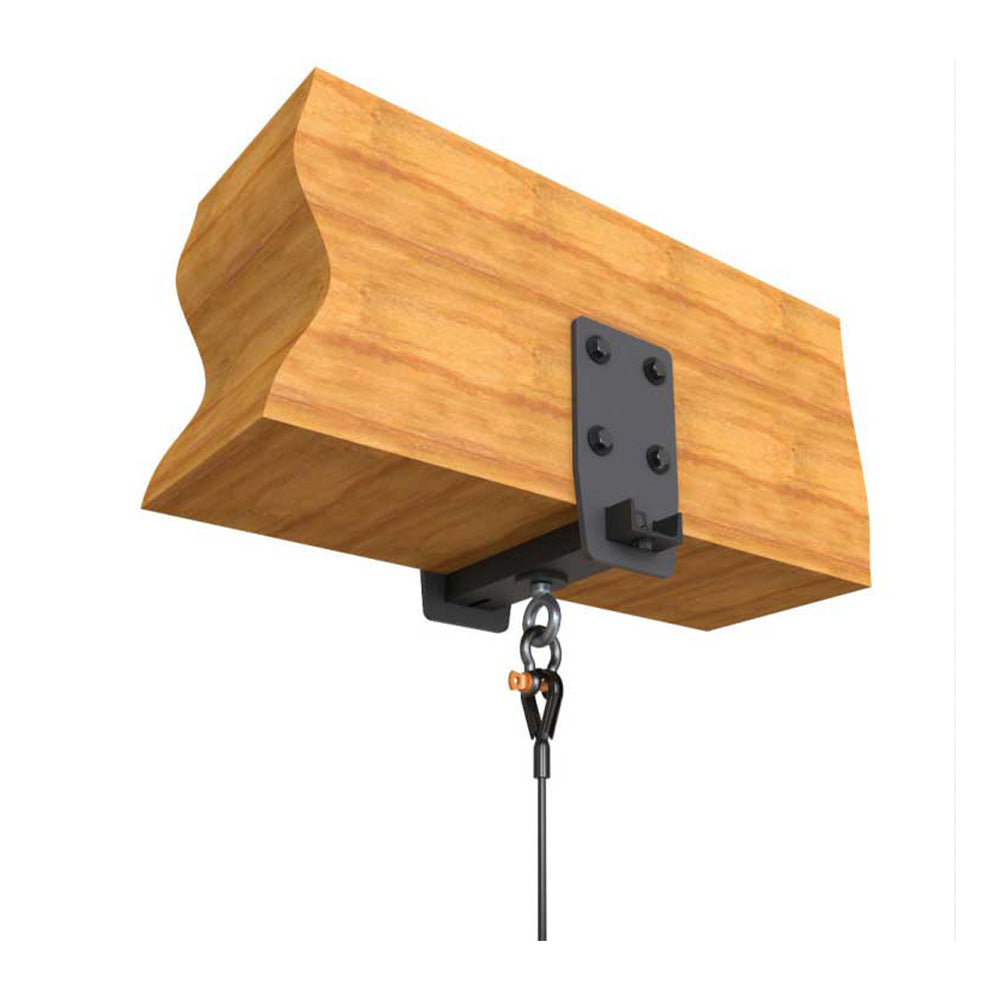

The BC-W7-12-9 provides a safe and secure overhead rigging point from underneath regular structural wood and Glulam overhead beams. This rugged, all-steel three-piece design will accommodate beam depths of 9" (230 mm) or more and widths from 7 inches wide to 12 inches wide (180-300 mm). Its hang point eye is secured to a loading channel which is oriented underneath and in the center of the wood beam and swivels in the direction of the pull to minimize the side loading when a load is not vertical and splayed out from center.
Two side plates anchor into the wood beam via lag bolts or through bolts, depending upon the application. If not certain, check with a structural engineer for the best method of attachment. The two side plates support the load channel below, which slides through both side plates and lock in permanently via two angle tabs.
Features:
- Load-rated suspension point
- Swiveling hang point
- Powder Coat finish
- Easy permanent installation
| Material | Structural steel |
| Weight | 21 lb/ 9.5 Kg |
| Finish | Powder coat |
| Color | Black |
| Working Load Limit | WLL: 980 lb at 0 degrees WLL: 380 lb at 45 degrees |
| Design factor | 5:1 |
| Contents | 2 pcs Side plates 1 pc. Load channel with swivel eye 2 pcs locking angle and fasteners |
The BC-W7-12-9 provides a safe and secure overhead rigging point from underneath regular structural wood and Glulam overhead beams. This rugged, all-steel three-piece design will accommodate beam depths of 9" (230 mm) or more and widths from 7 inches wide to 12 inches wide (180-300 mm). Its hang point eye is secured to a loading channel which is oriented underneath and in the center of the wood beam and swivels in the direction of the pull to minimize the side loading when a load is not vertical and splayed out from center.
Two side plates anchor into the wood beam via lag bolts or through bolts, depending upon the application. If not certain, check with a structural engineer for the best method of attachment. The two side plates support the load channel below, which slides through both side plates and lock in permanently via two angle tabs.
Features:
- Load-rated suspension point
- Swiveling hang point
- Powder Coat finish
- Easy permanent installation
| Material | Structural steel |
| Weight | 21 lb/ 9.5 Kg |
| Finish | Powder coat |
| Color | Black |
| Working Load Limit | WLL: 980 lb at 0 degrees WLL: 380 lb at 45 degrees |
| Design factor | 5:1 |
| Contents | 2 pcs Side plates 1 pc. Load channel with swivel eye 2 pcs locking angle and fasteners |
