Adaptive Technologies BC12-17 - Rigging Channel Beam Clamp (12-17" Open Hang Point / Swivel Eye)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

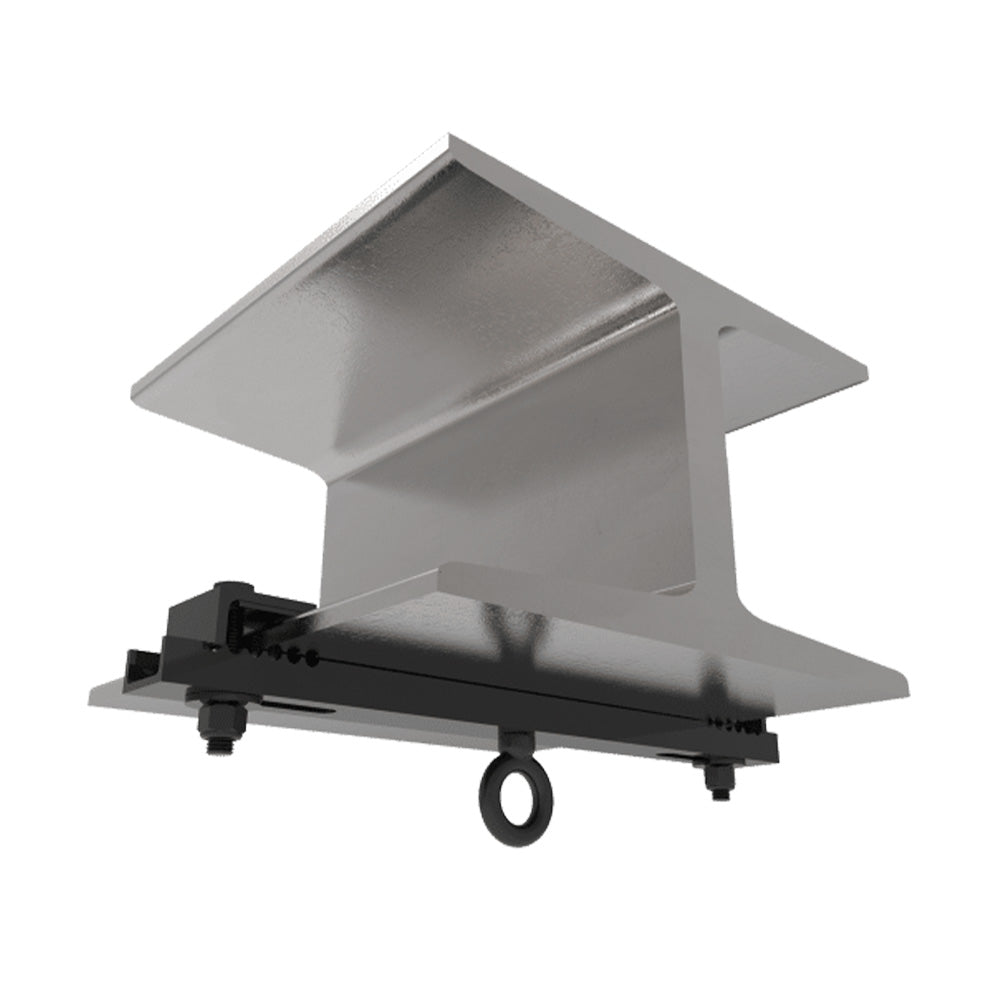

Adaptive's low-profile channel style beam clamps anchor permanently to structural I-Beams and provide a safe, predictable method for suspending loads from overhead. The channel style beam clamp is adjustable for beam flange widths ranging from between 12" and 17" (305-432mm). The body of the clamp mounts flush underneath the beam's flange and is equipped with a loadrated swiveling shoulder eye bolt that rotates in the direction of the load to minimize side loading.
Specify this beam clamp for many types of suspensions from horizontally oriented I-Beams, including wire rope assemblies, bridles, rigging chain and other equipment. A variety of spacers are included in the kits to accommodate beam flange thickness from .1875 to 1.0" (5mm to 25mm) and the only tools that are needed to install the clamp is a 1.0" and a 7/16" hex wrench.
Features:
- Single load-rated center suspension
- Provides safe load-rated hang point to 45¡ off center.
- Secures to beam flanges ranging from 12" - 17"
| Materials | All Steel Components |
| Width | 12" to 17" / 305mm to 432mm |
| Finish | Powder Coat |
| Color | Black |
| Working Load Limit | 980 lb / 445 kg WLL (VERTICAL) on Steel I-Beams 45 DEG. WL: 578 lb / 261 kg Steel I-Beams WLL: 300 lb / 136 kg max on wooden beams |
| Design Factor | 5:1 DO NOT EXCEED 45Á off hang points |
| Weight | 10.6 lb / 4.8 kg |
| Contents | 1 pc Beam Clamp Channel 2 pcs Locking Angle Plate 2 pcs Flat Washer, 5/8" 2 pcs Nyloc Nut, 5/8-11 |
Adaptive's low-profile channel style beam clamps anchor permanently to structural I-Beams and provide a safe, predictable method for suspending loads from overhead. The channel style beam clamp is adjustable for beam flange widths ranging from between 12" and 17" (305-432mm). The body of the clamp mounts flush underneath the beam's flange and is equipped with a loadrated swiveling shoulder eye bolt that rotates in the direction of the load to minimize side loading.
Specify this beam clamp for many types of suspensions from horizontally oriented I-Beams, including wire rope assemblies, bridles, rigging chain and other equipment. A variety of spacers are included in the kits to accommodate beam flange thickness from .1875 to 1.0" (5mm to 25mm) and the only tools that are needed to install the clamp is a 1.0" and a 7/16" hex wrench.
Features:
- Single load-rated center suspension
- Provides safe load-rated hang point to 45¡ off center.
- Secures to beam flanges ranging from 12" - 17"
| Materials | All Steel Components |
| Width | 12" to 17" / 305mm to 432mm |
| Finish | Powder Coat |
| Color | Black |
| Working Load Limit | 980 lb / 445 kg WLL (VERTICAL) on Steel I-Beams 45 DEG. WL: 578 lb / 261 kg Steel I-Beams WLL: 300 lb / 136 kg max on wooden beams |
| Design Factor | 5:1 DO NOT EXCEED 45Á off hang points |
| Weight | 10.6 lb / 4.8 kg |
| Contents | 1 pc Beam Clamp Channel 2 pcs Locking Angle Plate 2 pcs Flat Washer, 5/8" 2 pcs Nyloc Nut, 5/8-11 |
