Adaptive Technologies BC12-18-GE - Speaker Rigging Channel Beam Clamp with Gimbal Eye (12-18")
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

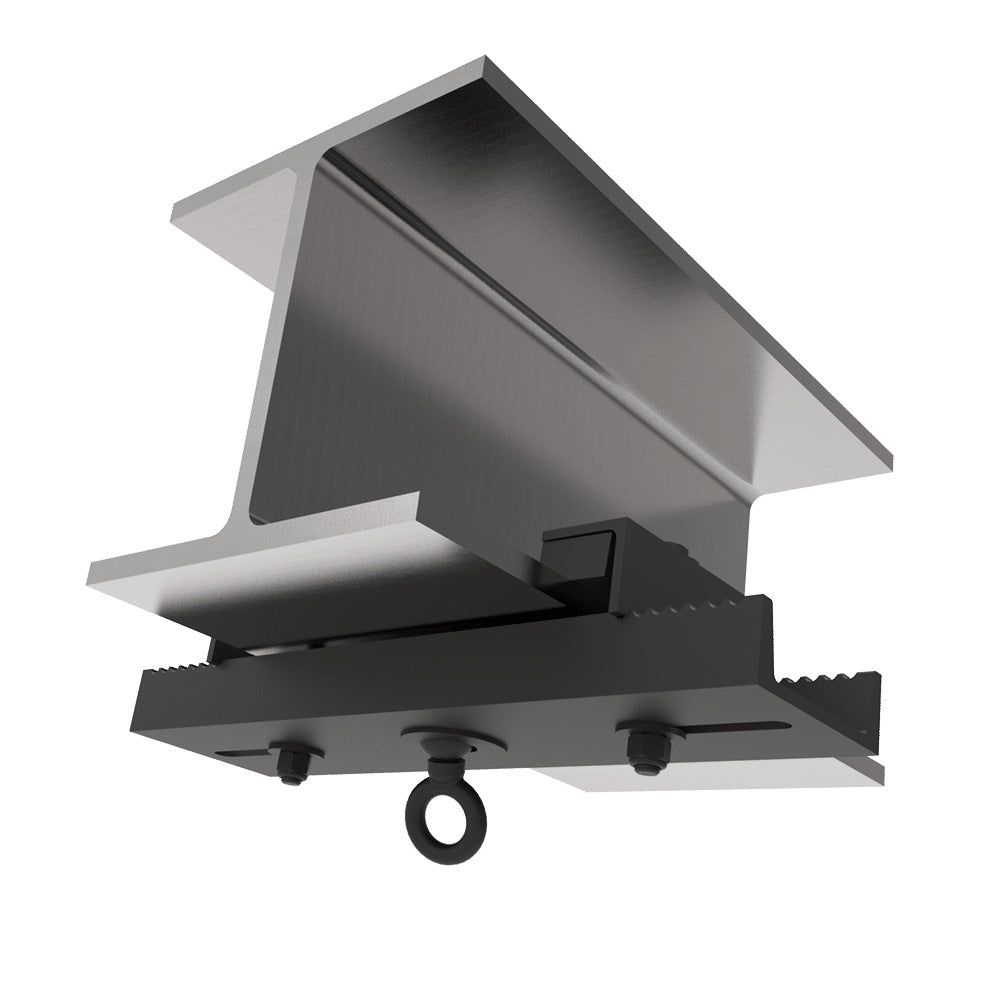

Standard, pre-engineered channel style beam clamps anchor to a building's beam structure to provide a safe and predictable method of rigging grids, clusters, arrays and other objects. The Gimbaled Style beam clamp is unique in that it offers a gimballed swivel eye that accommodates up to 20 degrees of off-axis side loading in any direction without losing any of its working load. The gimbal feature is especially predictable when bridling suspended objects from wire rope, rigging chain, span sets, etc. The body of the clamp mounts flush underneath the building's I-beams and adjusts to accommodate beam flange widths between 12" and 18"
Features:
- Accommodates thicker beam flanges
- Flange spacers included
- Gimballed hang point swivels 360¡
- Hang point retains same WLL from 0¡-20¡
- Wide body provides extra clamp stability.
- Non-loosening fasteners
| Materials | Alloy Steel Components |
| Width | 12" to 18" / 305mm to 457mm |
| Color | Black |
| Design Factor | 5:1 |
| Working Load Limit | Vertical WLL*: 2000 lbs / 908 Kg. WLL 20 DEG. WL: 2000 lbs / 908 Kg. WLL 45 DEG. WL: 1200 lbs / 545 Kg. 90 DEG. WL: Do Not Exceed 65Á |
| Contents | 1 pc 22" Channel 2 pcs Lock Angle Bracket 1 pc Eyebolt, 5/8" 1 pc Swivel Ball 5 pcs 5/8" Flat Washer 2 pcs Nyloc / Nut, 5/8"-11" 1 pc Hex Nut, 5/8"-11" 2 pcs Hex Bolt, 5/8"-11"- 5.5" Long 2 pcs 1/4" spacer 2 pcs 1/2" spacer 2 pcs 1.00" spacer |
Standard, pre-engineered channel style beam clamps anchor to a building's beam structure to provide a safe and predictable method of rigging grids, clusters, arrays and other objects. The Gimbaled Style beam clamp is unique in that it offers a gimballed swivel eye that accommodates up to 20 degrees of off-axis side loading in any direction without losing any of its working load. The gimbal feature is especially predictable when bridling suspended objects from wire rope, rigging chain, span sets, etc. The body of the clamp mounts flush underneath the building's I-beams and adjusts to accommodate beam flange widths between 12" and 18"
Features:
- Accommodates thicker beam flanges
- Flange spacers included
- Gimballed hang point swivels 360¡
- Hang point retains same WLL from 0¡-20¡
- Wide body provides extra clamp stability.
- Non-loosening fasteners
| Materials | Alloy Steel Components |
| Width | 12" to 18" / 305mm to 457mm |
| Color | Black |
| Design Factor | 5:1 |
| Working Load Limit | Vertical WLL*: 2000 lbs / 908 Kg. WLL 20 DEG. WL: 2000 lbs / 908 Kg. WLL 45 DEG. WL: 1200 lbs / 545 Kg. 90 DEG. WL: Do Not Exceed 65Á |
| Contents | 1 pc 22" Channel 2 pcs Lock Angle Bracket 1 pc Eyebolt, 5/8" 1 pc Swivel Ball 5 pcs 5/8" Flat Washer 2 pcs Nyloc / Nut, 5/8"-11" 1 pc Hex Nut, 5/8"-11" 2 pcs Hex Bolt, 5/8"-11"- 5.5" Long 2 pcs 1/4" spacer 2 pcs 1/2" spacer 2 pcs 1.00" spacer |
