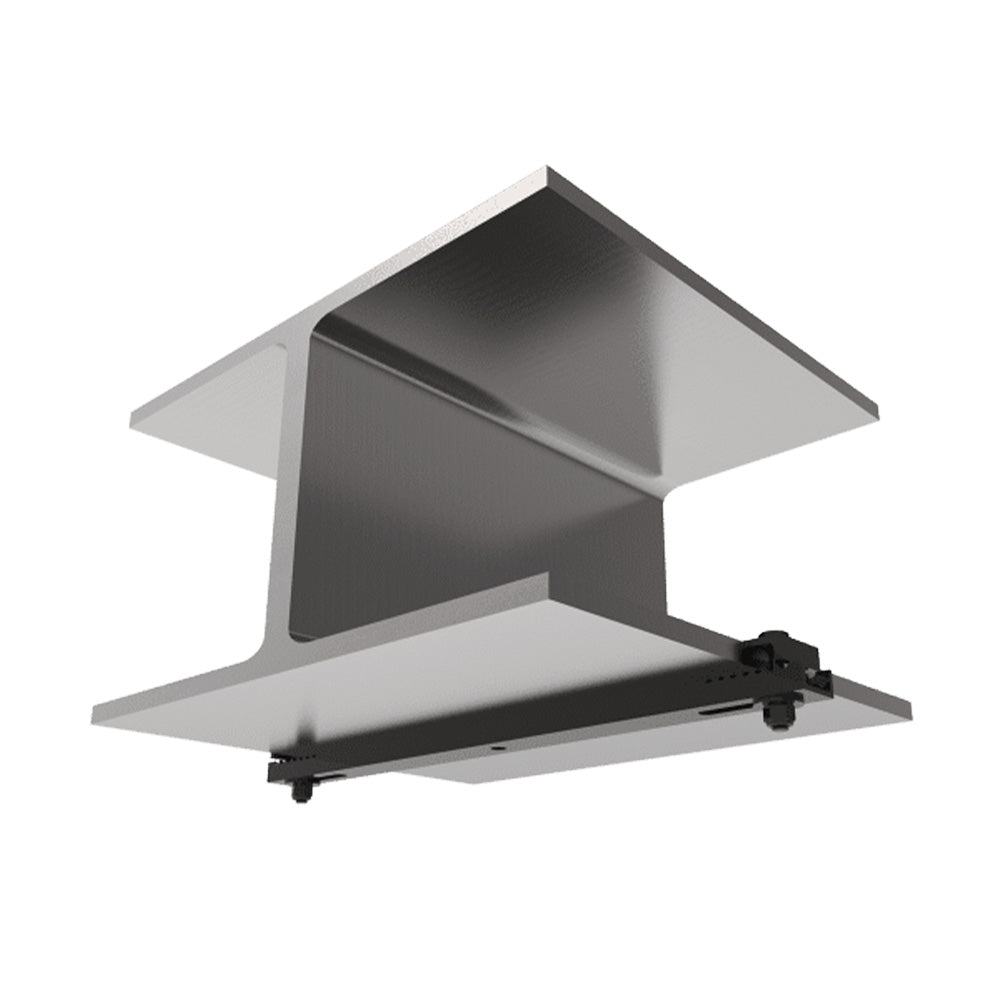

Adaptive Technologies BC20-26-0 - Rigging Channel Beam Clamp (20-26" Threaded Open Hang Point)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Standard, pre-engineered channel style beam clamps anchor to a building's beam structure and offer a safe and predictable method for suspending objects from overhead. This channel style beam clamp is adjustable, mounts flush underneath the beam's flange and provides a centrally located mounting hole for use with many types of connections, including all-thread, yokes and U-Brackets, truss clamps, Unistrut, etc.
Use the BC20-26-0 channel style beam clamp to provide a load rated overhead rigging point from structural I-Beams with flange widths ranging between 20" and 26" (508-660mm ). This beam clamp model provides a fast, easy and safe way to rig direct loads from overhead and a hand wrench is all that is required to secure this clamp.
Features:
- Center hole for 5/8" diameter threaded rod.
- Center hole for 1/2" and 1-1/2" dia. pipe adapters
- Provides safe load-rated suspension
- Clamps securely to beam flange widths from 20" - 26"
| Material | Structural C-Channel |
| Finish | Powder Coat |
| Color | Black |
| Design Factor | 5:1 |
| Working Load Limit | 600 lb / 272 kg Steel I-Beams |
| Weight | 12.25 lb / 5.6 kg |
| Contents | 1 pc 20"-26" Beam Clamp Channel 2 pcs Locking Angle Plate 2 ea. 3/8", 1/4" and 1/8" Spacers 2 pcs Flat Washer, 5/8" 2 pcs Nyloc Nut, 5/8-11 |
