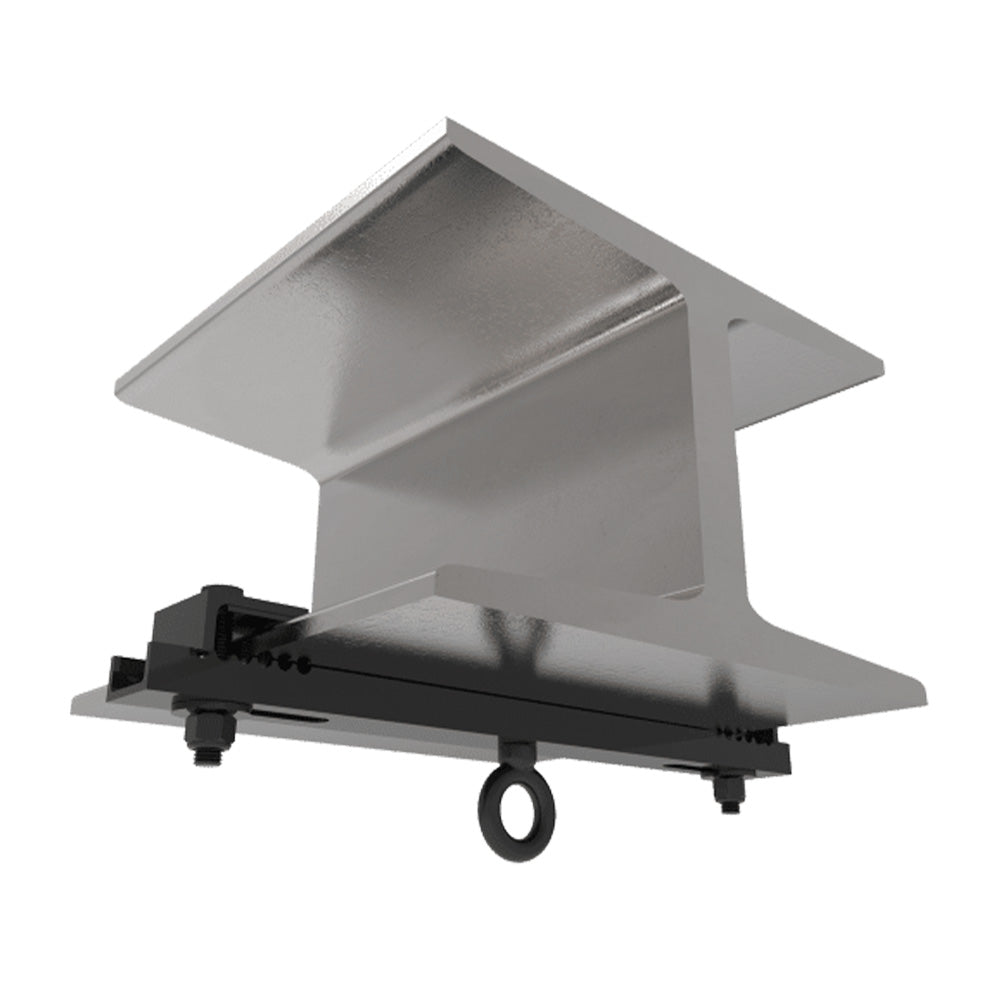

Adaptive Technologies BC20-26 - Rigging Channel Beam Clamp (20-26" Open Hang Point / Swivel Eye)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Adaptive's low-profile channel style beam clamps anchor permanently to structural I-Beams and provide a safe, predictable method for suspending loads from overhead. The channel style beam clamp is adjustable for beam flange widths ranging from between 20" and 26" (508-660 mm). The body of the clamp mounts flush underneath the beam's flange and is equipped with a load-rated swiveling shoulder eye bolt that rotates in the direction of the load to minimize side loading.
Specify this beam clamp for many types of suspensions from horizontally oriented I-Beams, including wire rope assemblies, bridles, rigging chain and other equipment. A variety of spacers are included in the kits to accommodate beam flange thickness from .1875 to 1.0" (5mm to 25mm) and the only tools that are needed to install the clamp is a 1.0" and a 7/16" hex wrench.
Features:
- Single load-rated center hang point
- Provides safe load-rated suspension
- Secures to beam flanges ranging from 20" - 26"
| Material | Structural C-Channel |
| Finish | Powder Coat |
| Color | Black |
| Design Factor | 5:1 |
| Working Load Limit | WLL: 600 lb / 272 kg Steel I-Beams Vertical WLL: 358 lb / 163 kg at 45Á WLL: 300 lb / 136 kg Wood Beams DO NOT EXCEED 45Á OFF CENTER |
| Weight | 12.25 lb / 5.6 kg |
| Contents | 1 pc 20"-26" Beam Clamp Channel 2 pcs Locking Angle Plate 2 pcs Flat Washer, 5/8" 2 pcs Nyloc Nut, 5/8-11 |
Adaptive's low-profile channel style beam clamps anchor permanently to structural I-Beams and provide a safe, predictable method for suspending loads from overhead. The channel style beam clamp is adjustable for beam flange widths ranging from between 20" and 26" (508-660 mm). The body of the clamp mounts flush underneath the beam's flange and is equipped with a load-rated swiveling shoulder eye bolt that rotates in the direction of the load to minimize side loading.
Specify this beam clamp for many types of suspensions from horizontally oriented I-Beams, including wire rope assemblies, bridles, rigging chain and other equipment. A variety of spacers are included in the kits to accommodate beam flange thickness from .1875 to 1.0" (5mm to 25mm) and the only tools that are needed to install the clamp is a 1.0" and a 7/16" hex wrench.
Features:
- Single load-rated center hang point
- Provides safe load-rated suspension
- Secures to beam flanges ranging from 20" - 26"
| Material | Structural C-Channel |
| Finish | Powder Coat |
| Color | Black |
| Design Factor | 5:1 |
| Working Load Limit | WLL: 600 lb / 272 kg Steel I-Beams Vertical WLL: 358 lb / 163 kg at 45Á WLL: 300 lb / 136 kg Wood Beams DO NOT EXCEED 45Á OFF CENTER |
| Weight | 12.25 lb / 5.6 kg |
| Contents | 1 pc 20"-26" Beam Clamp Channel 2 pcs Locking Angle Plate 2 pcs Flat Washer, 5/8" 2 pcs Nyloc Nut, 5/8-11 |
