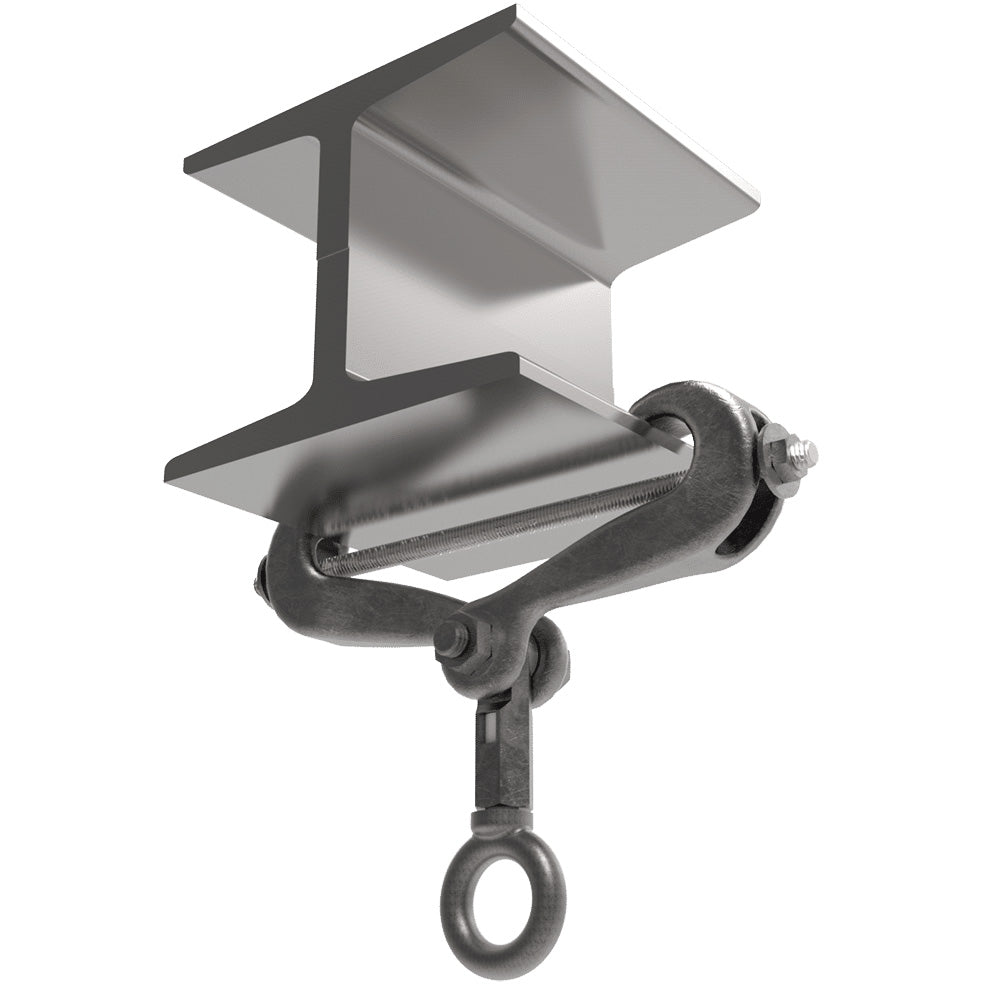

Adaptive Technologies BC3-7J - Scissor Style Speaker Rigging Beam Clamp (3-8")
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Creating suitable overhead structural suspension points for rigging systems can be difficult so using the building's own structure can provide more options for the installer. Standard, pre-engineered beam clamps attach to the building's beam structure and offer an easy, safe and predictable method of suspension. This unique beam clamp actually gets stronger as more weight is applied.
Features:
- Scissor clamps stronger as the applied load is increased.
- Infinite width adjustments from 3" - 7"
- Accommodates _-13 threaded rod or eyebolt for suspension
- All grade 8 hardware
- Ideal for permanent or temporary suspensions.
| Part Number | BC3-7J |
| Materials | Stainless and Galvanized Steel Components |
| Width | 3" to 7" / 76mm to 178mm |
| Color | Grey |
| Design Factor | 5:1 ratio |
| Working Load Limit | 1130 lb. / 514 Kg. WLL (Vertical) 45 DEG. MAX WL: 620 lb. / 295 Kg. Do not side load beyond 45Á |
Creating suitable overhead structural suspension points for rigging systems can be difficult so using the building's own structure can provide more options for the installer. Standard, pre-engineered beam clamps attach to the building's beam structure and offer an easy, safe and predictable method of suspension. This unique beam clamp actually gets stronger as more weight is applied.
Features:
- Scissor clamps stronger as the applied load is increased.
- Infinite width adjustments from 3" - 7"
- Accommodates _-13 threaded rod or eyebolt for suspension
- All grade 8 hardware
- Ideal for permanent or temporary suspensions.
| Part Number | BC3-7J |
| Materials | Stainless and Galvanized Steel Components |
| Width | 3" to 7" / 76mm to 178mm |
| Color | Grey |
| Design Factor | 5:1 ratio |
| Working Load Limit | 1130 lb. / 514 Kg. WLL (Vertical) 45 DEG. MAX WL: 620 lb. / 295 Kg. Do not side load beyond 45Á |
