Adaptive Technologies BC3-8 - Speaker Rigging Channel Beam Clamp (3-8" Open Hang Point / Swivel Eye)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

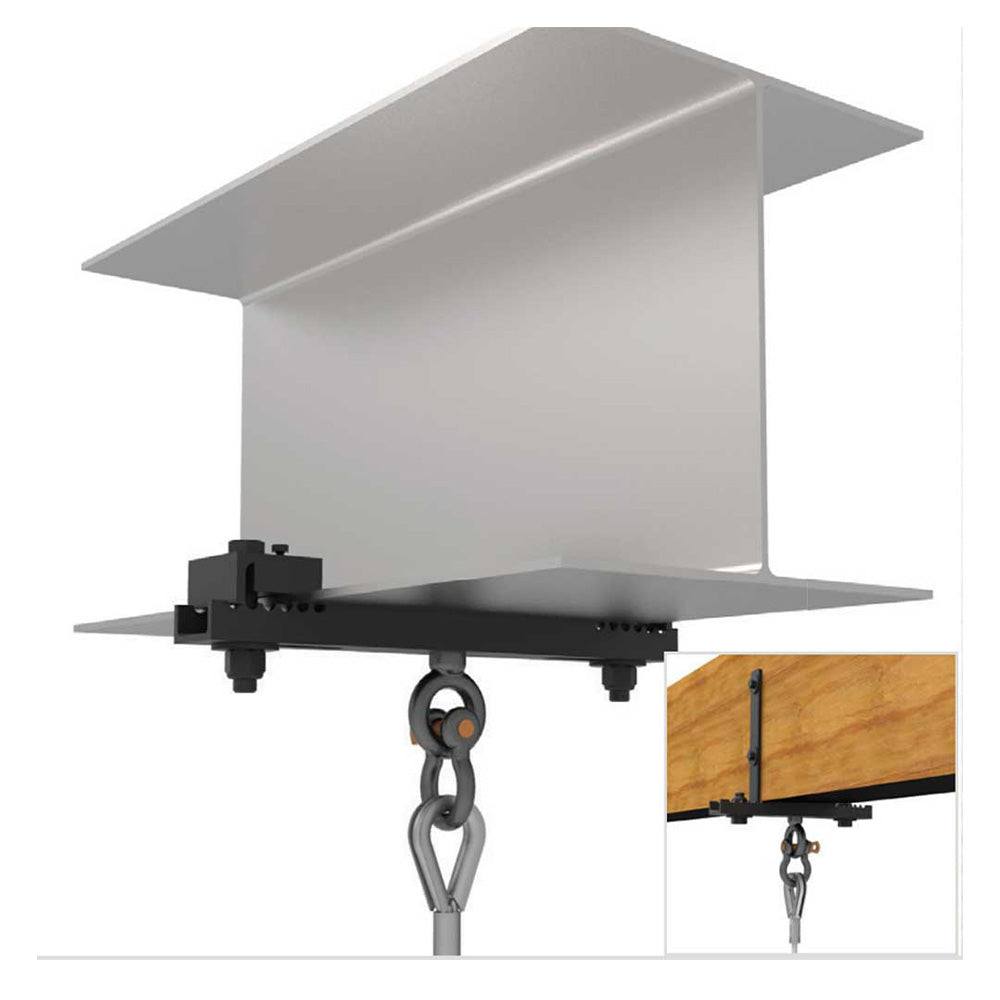

Adaptive's low-profile channel style beam clamps anchor permanently to structural I-Beams and provide a safe, predictable method for suspending loads from overhead. The channel style beam clamp is adjustable to beam flange widths ranging from between 3" and 8" (76-203mm). The body of the clamp mounts flush underneath the beam's flange and is equipped with a load-rated swiveling shoulder eye bolt that rotates in the direction of the load to minimize side loading.
Specify this beam clamp for many types of indoor suspensions from horizontally oriented I-Beams, including wire rope assemblies, bridles, rigging chain and other equipment. A variety of spacers are included in the kits to accommodate beam flange thickness from .1875 to 1.0" (5mm to 25mm) and the only tools that are needed to install the clamp is a 1.0" and a 7/16" hex wrench.
Features:
- Single center hang point
- Provides safe load-rated suspension
- Secures to beam flanges ranging from 3" - 8"
| Material | Structural C-Channel |
| Finish | Powder Coat |
| Color | Black |
| Design Factor | 5:1 |
| Working Load Limit | WLL: 2100 lb / 953 kg metal beams 45 Degree WLL 1680 lb / 762.0352 kg WLL: 300lb / 136kg wood beams DO NOT EXCEED 45Á OFF HANG POINT |
| Weight | 3.2 lb / 1.45 kg |
| Contents | 1 pc 3"-8" Beam Clamp Channel 2 pcs Locking Angle Plate 2 pcs Flat Washer, 5/8" 2 pcs Nyloc Nut, 5/8-11 Spacers: 3/8", 1/4", 1/8" |
Adaptive's low-profile channel style beam clamps anchor permanently to structural I-Beams and provide a safe, predictable method for suspending loads from overhead. The channel style beam clamp is adjustable to beam flange widths ranging from between 3" and 8" (76-203mm). The body of the clamp mounts flush underneath the beam's flange and is equipped with a load-rated swiveling shoulder eye bolt that rotates in the direction of the load to minimize side loading.
Specify this beam clamp for many types of indoor suspensions from horizontally oriented I-Beams, including wire rope assemblies, bridles, rigging chain and other equipment. A variety of spacers are included in the kits to accommodate beam flange thickness from .1875 to 1.0" (5mm to 25mm) and the only tools that are needed to install the clamp is a 1.0" and a 7/16" hex wrench.
Features:
- Single center hang point
- Provides safe load-rated suspension
- Secures to beam flanges ranging from 3" - 8"
| Material | Structural C-Channel |
| Finish | Powder Coat |
| Color | Black |
| Design Factor | 5:1 |
| Working Load Limit | WLL: 2100 lb / 953 kg metal beams 45 Degree WLL 1680 lb / 762.0352 kg WLL: 300lb / 136kg wood beams DO NOT EXCEED 45Á OFF HANG POINT |
| Weight | 3.2 lb / 1.45 kg |
| Contents | 1 pc 3"-8" Beam Clamp Channel 2 pcs Locking Angle Plate 2 pcs Flat Washer, 5/8" 2 pcs Nyloc Nut, 5/8-11 Spacers: 3/8", 1/4", 1/8" |
