Adaptive Technologies CG-P1377-JBX2 - Channel Strut Joiner Bracket Extended
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

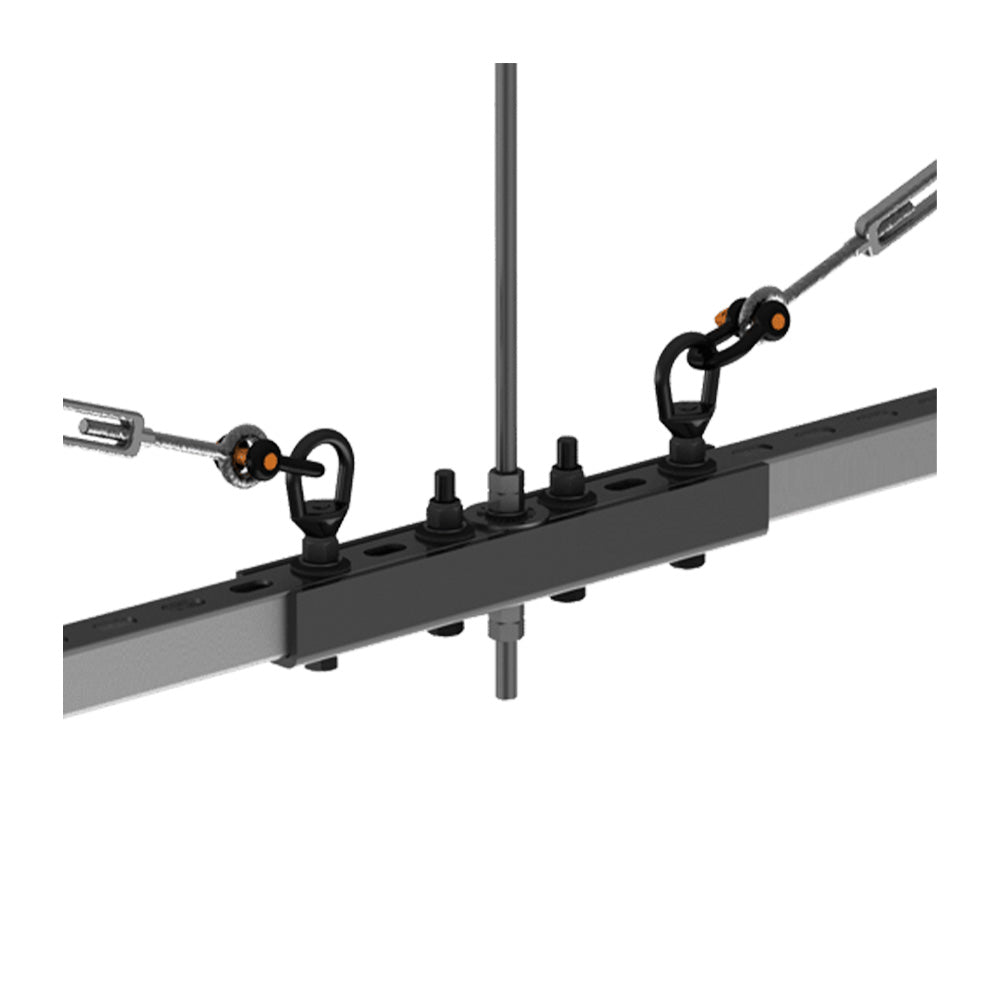

The CG-P1377-JBX2 safely joins strut channels together in order to support overhead speaker grid systems. This joiner bracket can be supported with wire rope assemblies to secure heavier loads and to ensure an extra margin of safety, especially in earthquake regions.
Features:
- Safe and load rated
- Allows multiple strut sections to be secured together
| Materials | Structural Steel |
| Finish | Black Zinc |
| Color | Black |
| Working Load Limit | 252 lbs / 114.5 kg |
| Design Factor | 7:1 |
| Shipping Weight | 6.75 lbs / 3.1 Kg. |

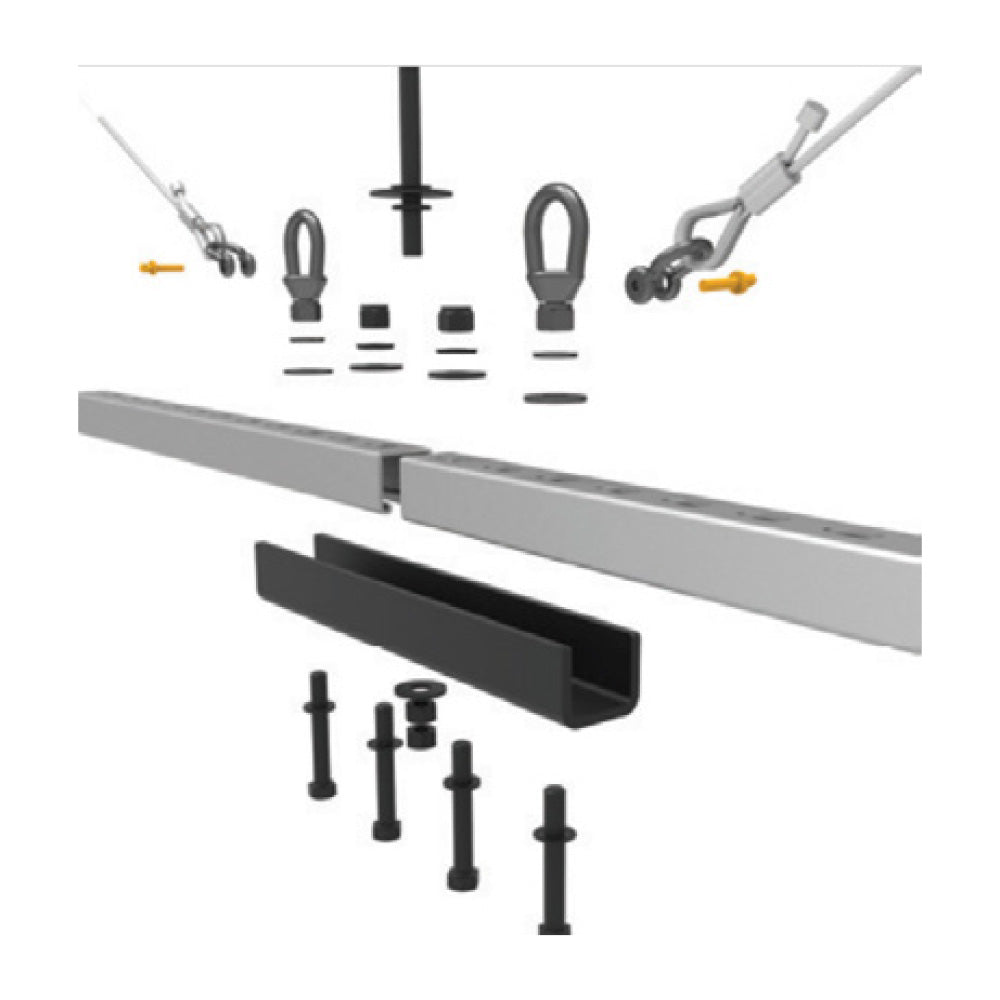

| Contents | 1 pcs: Joiner Bracket 4 pcs: _-13 Hex Bolt x 3_" Long 4 pcs: Flat Washers, _" 4 pcs: _-13 Nyloc Hex Nuts 10 pcs: Sound isolation washer 1 pc: Fender Washer, _" 4 pcs: Hex Nut, _-13 |
The CG-P1377-JBX2 safely joins strut channels together in order to support overhead speaker grid systems. This joiner bracket can be supported with wire rope assemblies to secure heavier loads and to ensure an extra margin of safety, especially in earthquake regions.
Features:
- Safe and load rated
- Allows multiple strut sections to be secured together
| Materials | Structural Steel |
| Finish | Black Zinc |
| Color | Black |
| Working Load Limit | 252 lbs / 114.5 kg |
| Design Factor | 7:1 |
| Shipping Weight | 6.75 lbs / 3.1 Kg. |
| Contents | 1 pcs: Joiner Bracket 4 pcs: _-13 Hex Bolt x 3_" Long 4 pcs: Flat Washers, _" 4 pcs: _-13 Nyloc Hex Nuts 10 pcs: Sound isolation washer 1 pc: Fender Washer, _" 4 pcs: Hex Nut, _-13 |
