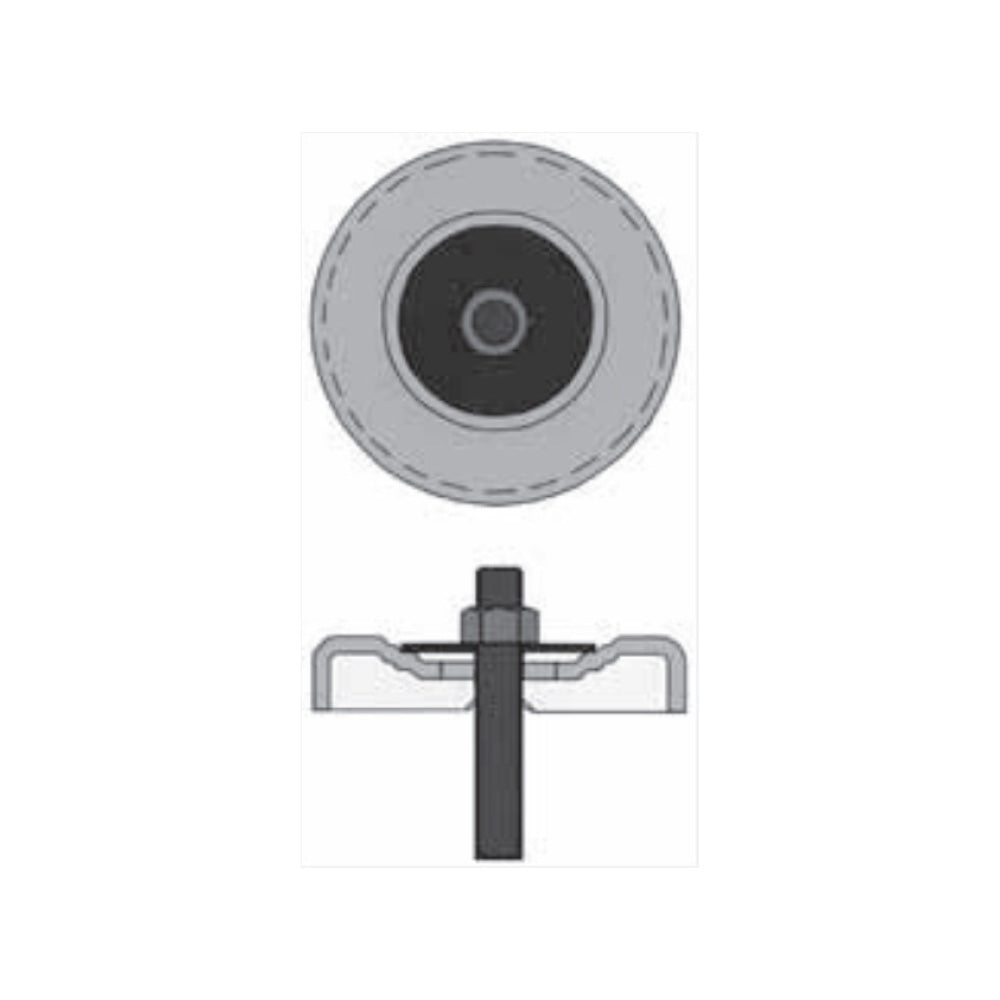

Adaptive Technologies CG-SH-1-245-IH - Channel Strut Sound Isolation Bracket
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
SH Vibration Isolation Hangers are designed to reduce the transmission of vibration and noise produced by suspended equipment and piping. SH Hangers incorporate a high deflection color-coded spring element, a "no short" spring cap, and noise isolation pad, assembled into a stamped or welded hanger bracket.
Features:
- Reduce transmission of vibration through structure
- Attaches with 1/2-13 Hardware
- 12" long Threaded Rod Included
| Materials | Structural Steel |
| Finish | Powder Coat |
| Color | Black |
| Working Load Limit | 175 lbs / 79.3 kg |
| Design Factor | 7:1 |
| Contents | 1 pcs: Isolation Hanger 1 pcs: B7 All-Thread Rod 1 bag: Hardware Kit |
SH Vibration Isolation Hangers are designed to reduce the transmission of vibration and noise produced by suspended equipment and piping. SH Hangers incorporate a high deflection color-coded spring element, a "no short" spring cap, and noise isolation pad, assembled into a stamped or welded hanger bracket.
Features:
- Reduce transmission of vibration through structure
- Attaches with 1/2-13 Hardware
- 12" long Threaded Rod Included
| Materials | Structural Steel |
| Finish | Powder Coat |
| Color | Black |
| Working Load Limit | 175 lbs / 79.3 kg |
| Design Factor | 7:1 |
| Contents | 1 pcs: Isolation Hanger 1 pcs: B7 All-Thread Rod 1 bag: Hardware Kit |
