Adaptive Technologies CP-16 - Ceiling Stud Adapter Plate
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

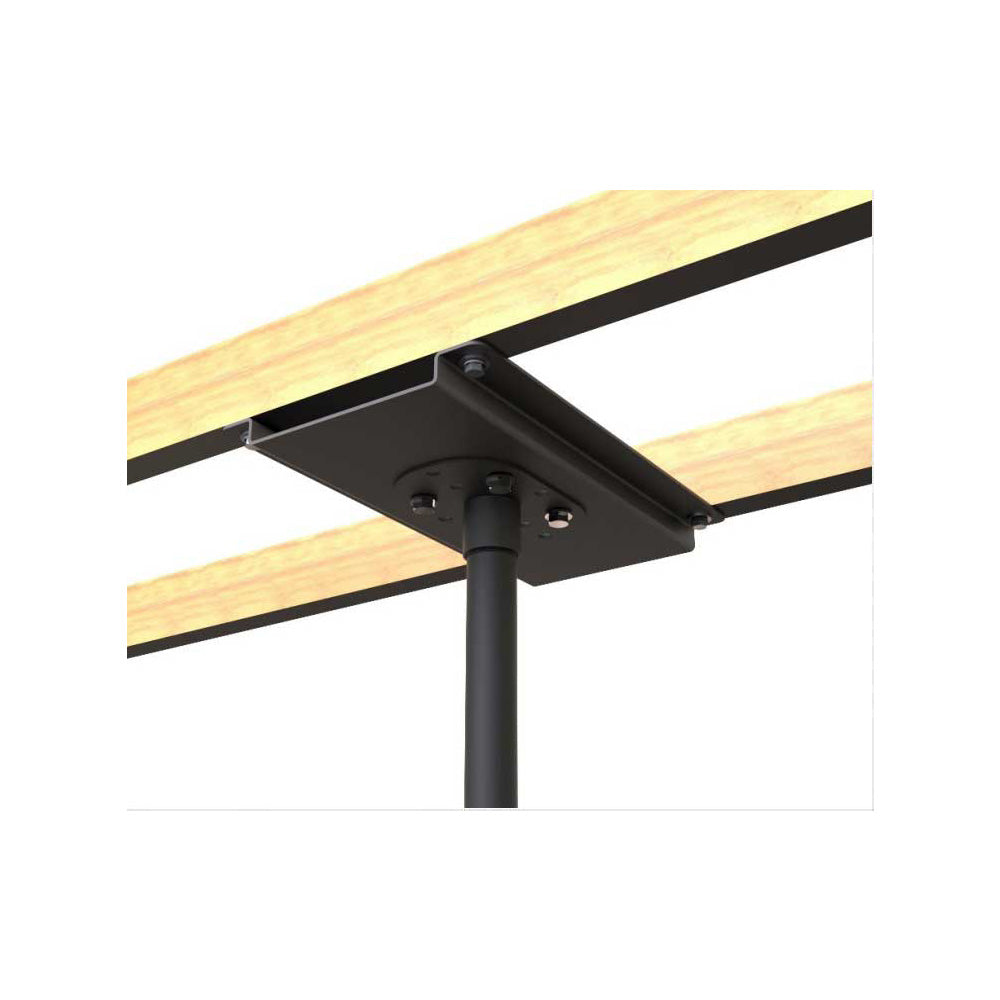

This stud adapter plate is used to bridge two structural studs offering a secure surface mounting for specific ceiling mounts as specified below. It bridges both standard 16Ó wood and metal construction wall stud spacing.
This stud adapter plate is made from rugged alloy steel with two double horizontal flanges for added rigidity. The assembly is finished with a bakedon powder coat paint.
The CP-16 may be mounted over dry wall, plaster and other ceiling materials, as long as it is firmly anchored into the structure. It can even be embedded inside the ceiling materials for a clean flush appearance.
Features:
- Mounts on 16" hole centers
- Accomadates multiple ceiling mounts and attachments
- Baked on powdered coat finish
- Low profile design
| Materials | Structural Steel Alloy |
| Finish | Powder Coat |
| Color | Black texture |
| Pan Angle | 360 degrees |
| Color | Black |
| Pack Count | 1 unit / carton |
| Load Rating | 150 lb / 68 Kg |
| Compatible Mounts | Meets the specifications of these selected mounts MP-500-NPT-CP, MP-500-NPT-GSA, MP500NPT-TA, MP-1.5NPS-CP |
| Package Contents | 1 pc Ceiling stud adapter Hardware for mounting to the ceiling structure is not included. |
This stud adapter plate is used to bridge two structural studs offering a secure surface mounting for specific ceiling mounts as specified below. It bridges both standard 16Ó wood and metal construction wall stud spacing.
This stud adapter plate is made from rugged alloy steel with two double horizontal flanges for added rigidity. The assembly is finished with a bakedon powder coat paint.
The CP-16 may be mounted over dry wall, plaster and other ceiling materials, as long as it is firmly anchored into the structure. It can even be embedded inside the ceiling materials for a clean flush appearance.
Features:
- Mounts on 16" hole centers
- Accomadates multiple ceiling mounts and attachments
- Baked on powdered coat finish
- Low profile design
| Materials | Structural Steel Alloy |
| Finish | Powder Coat |
| Color | Black texture |
| Pan Angle | 360 degrees |
| Color | Black |
| Pack Count | 1 unit / carton |
| Load Rating | 150 lb / 68 Kg |
| Compatible Mounts | Meets the specifications of these selected mounts MP-500-NPT-CP, MP-500-NPT-GSA, MP500NPT-TA, MP-1.5NPS-CP |
| Package Contents | 1 pc Ceiling stud adapter Hardware for mounting to the ceiling structure is not included. |
