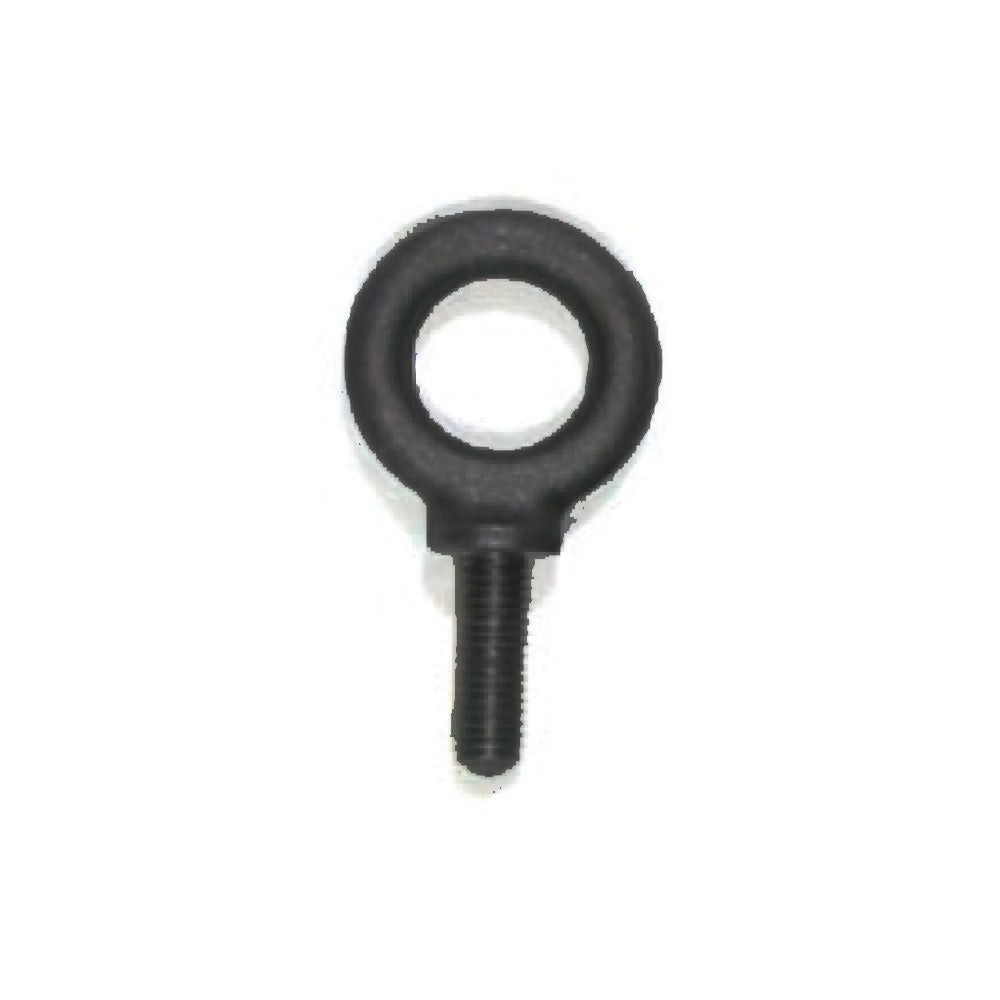

Adaptive Technologies EB-315 - Drop Forged Speaker Rigging Eyebolt (5/16-18 Threaded / Black)


  • Dale #:

    ADAP-EB315
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

Adaptive's drop forged shoulder eyebolts and eyenuts provide very strong and predictable suspension points for overhead rigging systems. Forged components provide a consistent, safe and load rated fastener when reliability counts. These components are produced in the United States. Load rating va... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

Adaptive's drop forged shoulder eyebolts and eyenuts provide very strong and predictable suspension points for overhead rigging systems. Forged components provide a consistent, safe and load rated fastener when reliability counts. These components are produced in the United States. Load rating values are calculated with a 5:1 safety (design) factor. To calculate the approximate ultimate failure load, multiply the indicated working load limit (WLL) by five. Dimensions are approximate and will vary slightly between manufacturing runs. Color options include bright zinc plate or black zinc plate.

More +

Product Specs

Part Number EB-315
Color Black
Thread 5/16-18
End Dimension 5/16"
Outer Diameter 1.125"
Inner Diameter 1.125"
Total Eyebolt Length 1.50"
Inner Eyebolt Length .90"
Threaded Rod Length 2.75"
Working Load Limit (0 Degrees) 900 lb/409 kg
Working Load Limit (45 Degrees) 225 lb/102 kg
Working Load Limit (90 Degrees) 180 lb/82 kg

More +
