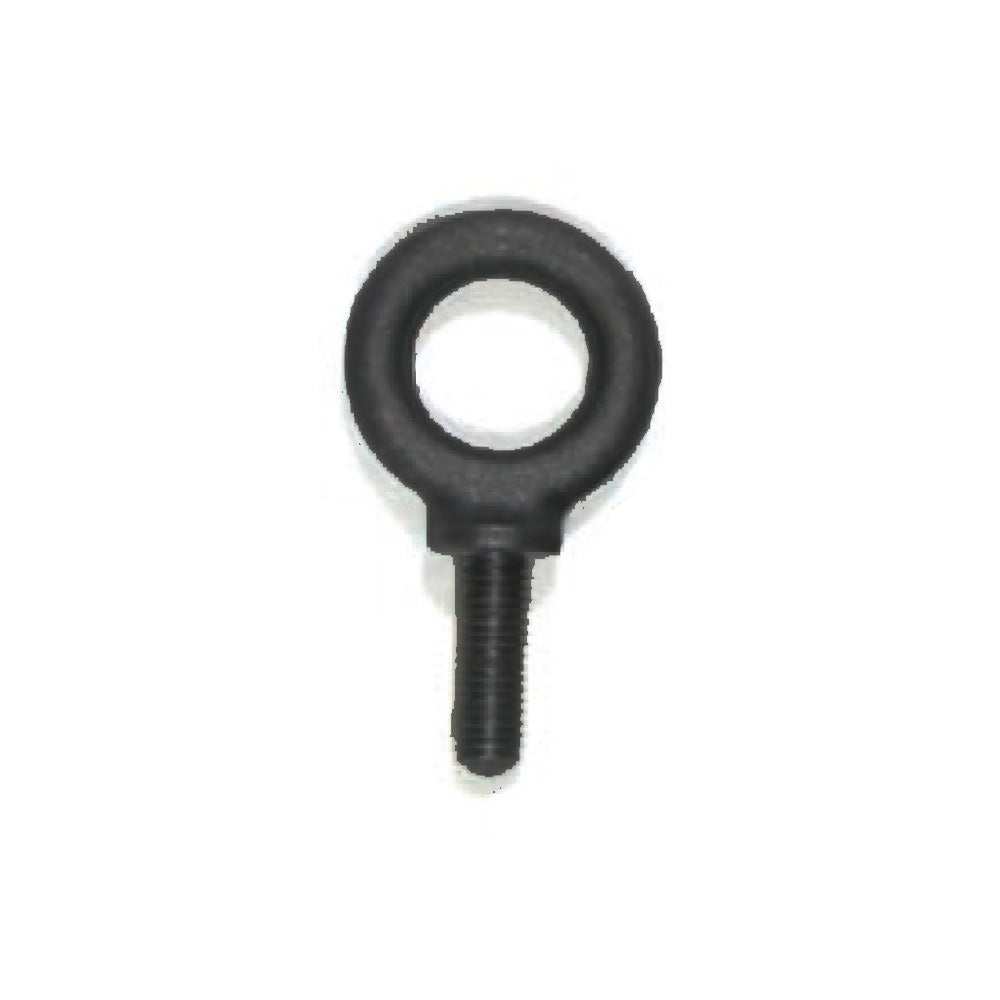

Adaptive Technologies EB-M6 - Drop Forged Speaker Rigging Eyebolt (M6 Threaded / Black)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Adaptive's drop forged shoulder eyebolts and eyenuts provide very strong and predictable suspension points for overhead rigging systems. Forged components provide a consistent, safe and load rated fastener when reliability counts. These components are produced in the United States. Load rating values are calculated with a 5:1 safety (design) factor. To calculate the approximate ultimate failure load, multiply the indicated working load limit (WLL) by five. Dimensions are approximate and will vary slightly between manufacturing runs. Color options include bright zinc plate or black zinc plate.
| Part Number | EB-M6 |
| Color | Zinc |
| Thread | M6 x 1.0 |
| End Dimension | 6 mm |
| Outer Diameter | 26 mm |
| Inner Diameter | 26 mm |
| Total Eyebolt Length | 30 mm |
| Inner Eyebolt Length | 18 mm |
| Threaded Rod Length | 60 mm |
| Working Load Limit (0 Degrees) | 462 lb/210 kg |
| Working Load Limit (45 Degrees) | 115 lb/52 kg |
| Working Load Limit (90 Degrees) | 92 lb/42 kg |
Adaptive's drop forged shoulder eyebolts and eyenuts provide very strong and predictable suspension points for overhead rigging systems. Forged components provide a consistent, safe and load rated fastener when reliability counts. These components are produced in the United States. Load rating values are calculated with a 5:1 safety (design) factor. To calculate the approximate ultimate failure load, multiply the indicated working load limit (WLL) by five. Dimensions are approximate and will vary slightly between manufacturing runs. Color options include bright zinc plate or black zinc plate.
| Part Number | EB-M6 |
| Color | Zinc |
| Thread | M6 x 1.0 |
| End Dimension | 6 mm |
| Outer Diameter | 26 mm |
| Inner Diameter | 26 mm |
| Total Eyebolt Length | 30 mm |
| Inner Eyebolt Length | 18 mm |
| Threaded Rod Length | 60 mm |
| Working Load Limit (0 Degrees) | 462 lb/210 kg |
| Working Load Limit (45 Degrees) | 115 lb/52 kg |
| Working Load Limit (90 Degrees) | 92 lb/42 kg |
