Adaptive Technologies MM-018 - MultiMount Series Pan / Tilt Speaker Wall Mount
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

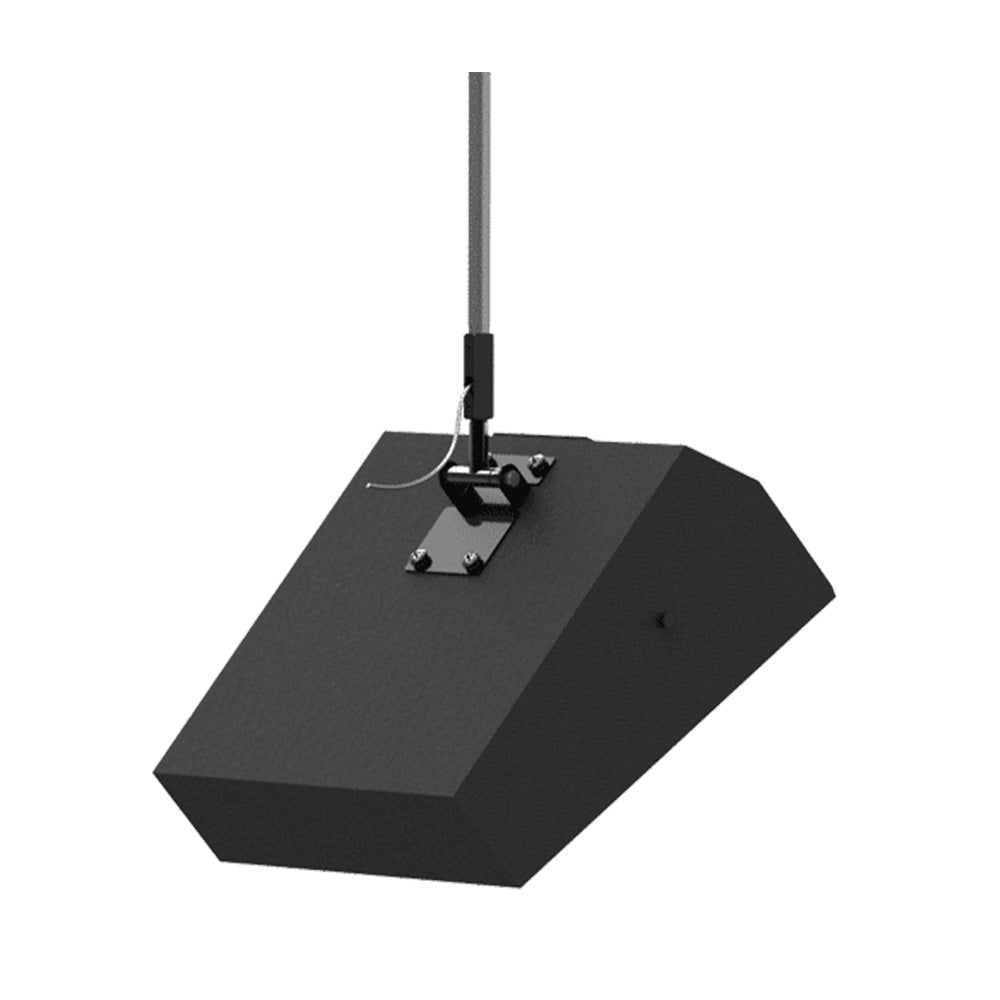

The MM-018 is a pan and tilt speaker mount that supports and aims cinema surround speakers that offer the standard four-point mounting pattern of 2-3/4” X 5”. This mount aims and anchors surround speakers from overhead ceiling grids by way of a variety of tube extensions and adapters. Ceiling surrounds achieve up to 360 degrees of horizontal pan angle adjustments and up to 180 degrees of tilt angle adjustment. Tilt adjustments are made at the side of the speaker adapter plate. Panning adjustments are made at the intersection of the the tube extension coupler and the speaker mount. The MM-018’s tube coupler provides a pathway for signal wire and a safety cable to pass up through the tube extension, making for a cosmetically pleasing, safe and predictable method for installing ceiling speakers.
Features:
- Independent pan and tilt controls
- Infinite locking adjustments
- No memory drift
- Single man speaker installations
- Safety cables included with extension tubes
| Material | Structural Steel Alloy |
| Finish | Powder Coat |
| Tilt Rotation | 180 degrees |
| Pan Angle | 360 degrees |
| Color | Black |
| Design Factor | 7:1 ratio |
| WLL | 60 lbs. (27.2 Kg) max. |
| Net WGT | 4 lbs. (1.8 Kg.) each |
| Shipping WGT | 5 lbs. (2.3 Kg.) each |
| Pack Count | 1 units/carton |
| Package Contents | 1 pc Speaker Adapter Assy 1 pc Coupler Adapter, 3/4-10 thread and 1/2 NPT 2 pcs Set Screw, 1/4-20 1 pc Hex Bolt, 3/8-16 X 3/4" Long 1 pc Hex Bolt, Left Hand Thread 3/8-16 X 3/4" Long 2 pcs Star Washer, 3/8 |
The MM-018 is a pan and tilt speaker mount that supports and aims cinema surround speakers that offer the standard four-point mounting pattern of 2-3/4” X 5”. This mount aims and anchors surround speakers from overhead ceiling grids by way of a variety of tube extensions and adapters. Ceiling surrounds achieve up to 360 degrees of horizontal pan angle adjustments and up to 180 degrees of tilt angle adjustment. Tilt adjustments are made at the side of the speaker adapter plate. Panning adjustments are made at the intersection of the the tube extension coupler and the speaker mount. The MM-018’s tube coupler provides a pathway for signal wire and a safety cable to pass up through the tube extension, making for a cosmetically pleasing, safe and predictable method for installing ceiling speakers.
Features:
- Independent pan and tilt controls
- Infinite locking adjustments
- No memory drift
- Single man speaker installations
- Safety cables included with extension tubes
| Material | Structural Steel Alloy |
| Finish | Powder Coat |
| Tilt Rotation | 180 degrees |
| Pan Angle | 360 degrees |
| Color | Black |
| Design Factor | 7:1 ratio |
| WLL | 60 lbs. (27.2 Kg) max. |
| Net WGT | 4 lbs. (1.8 Kg.) each |
| Shipping WGT | 5 lbs. (2.3 Kg.) each |
| Pack Count | 1 units/carton |
| Package Contents | 1 pc Speaker Adapter Assy 1 pc Coupler Adapter, 3/4-10 thread and 1/2 NPT 2 pcs Set Screw, 1/4-20 1 pc Hex Bolt, 3/8-16 X 3/4" Long 1 pc Hex Bolt, Left Hand Thread 3/8-16 X 3/4" Long 2 pcs Star Washer, 3/8 |
