Adaptive Technologies MM-019-BT - Pan / Tilt Speaker Ceiling Mount
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

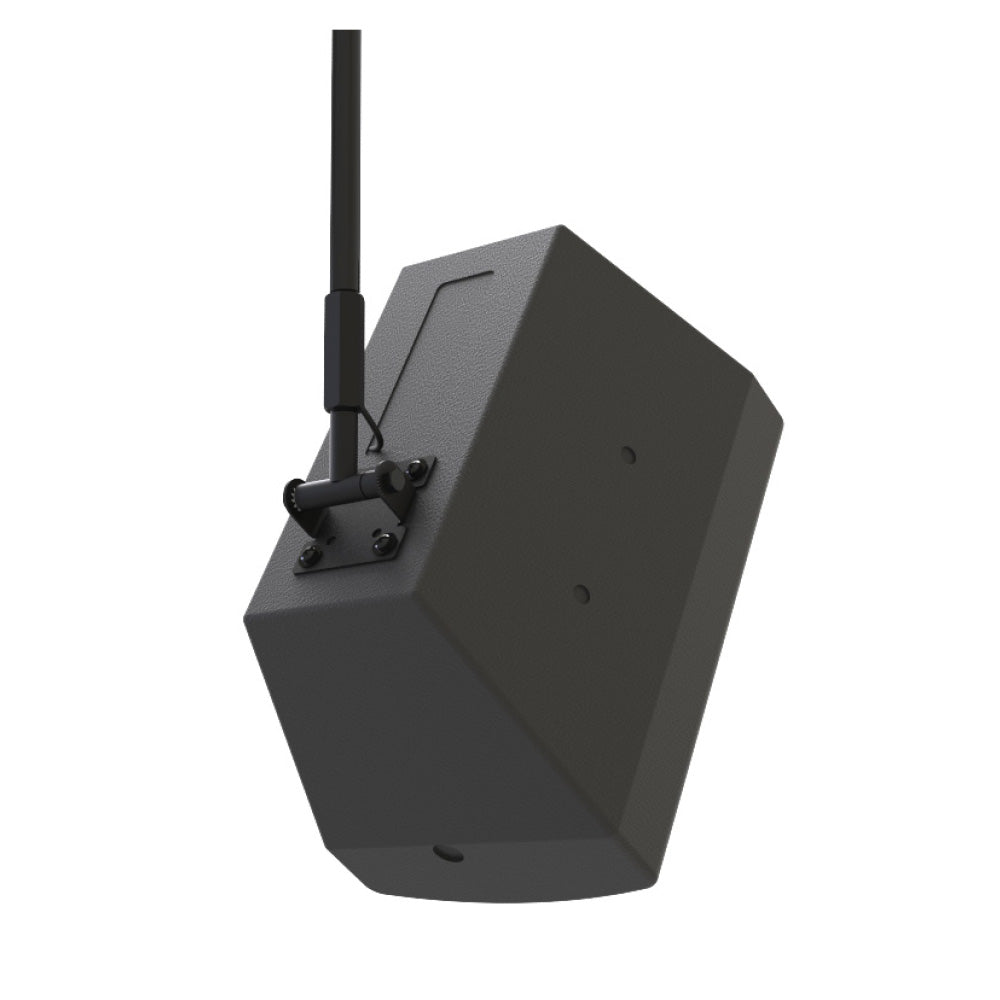

The MM-019 is a pan and tilt speaker mount that supports and aims cinema surround speakers equipped with the standard four-point mounting pattern of 2.6 x 2.6" and 1.6 x 1.6".
This mount aims and anchors surround speakers from overhead ceiling mounts and strut by way of ceiling plates, a variety of pipe extensions and strut adapters. Ceiling surrounds achieve up to 360 degrees of horizontal pan angle adjustments and up to 180 degrees of tilt angle adjustment.
Tilt adjustments are made at the side of the speaker adapter plate. Panning adjustments are made at the intersection of the pipe extension coupler and the speaker mount.
The MM-019's pipe coupler provides a pathway for signal wire and a safety cable to pass up through the pipe extension, making for a cosmetically pleasing, safe and predictable method for installing ceiling speakers.
Features:
- Independent pan and tilt controls
- Infinite locking adjustments
- No drift
- Single man speaker installations
| Material | Structural Steel Alloy |
| Finish | Powder Coat |
| Tilt Rotation | 180 degrees |
| Pan Angle | 360 degrees |
| Color | Black |
| WLL | 60 lbs. (27.2 Kg) max. |
| Design Factor | 7:1 ratio |
| Net WGT | 2.5 Lb (1.14 Kg) |
| Shipping WGT | 3.5 lb (1.6 Kg) |
| Pack Count | 1 unit / carton |
| Package Contents | 1 pc Speaker Adpater Assy 1 pc Coupler Adapter, 3/4-10 Thread and 1/2NPT |
The MM-019 is a pan and tilt speaker mount that supports and aims cinema surround speakers equipped with the standard four-point mounting pattern of 2.6 x 2.6" and 1.6 x 1.6".
This mount aims and anchors surround speakers from overhead ceiling mounts and strut by way of ceiling plates, a variety of pipe extensions and strut adapters. Ceiling surrounds achieve up to 360 degrees of horizontal pan angle adjustments and up to 180 degrees of tilt angle adjustment.
Tilt adjustments are made at the side of the speaker adapter plate. Panning adjustments are made at the intersection of the pipe extension coupler and the speaker mount.
The MM-019's pipe coupler provides a pathway for signal wire and a safety cable to pass up through the pipe extension, making for a cosmetically pleasing, safe and predictable method for installing ceiling speakers.
Features:
- Independent pan and tilt controls
- Infinite locking adjustments
- No drift
- Single man speaker installations
| Material | Structural Steel Alloy |
| Finish | Powder Coat |
| Tilt Rotation | 180 degrees |
| Pan Angle | 360 degrees |
| Color | Black |
| WLL | 60 lbs. (27.2 Kg) max. |
| Design Factor | 7:1 ratio |
| Net WGT | 2.5 Lb (1.14 Kg) |
| Shipping WGT | 3.5 lb (1.6 Kg) |
| Pack Count | 1 unit / carton |
| Package Contents | 1 pc Speaker Adpater Assy 1 pc Coupler Adapter, 3/4-10 Thread and 1/2NPT |
