Description
The MM-020X is specially designed to suspend loudspeakers with a four-hole mounting pattern, weighing up to 60 lb./27 Kg from overhead structures using standard off-the-shelf schedule 40, 1/2 NPT pipe. This allows the installer to bring the loudspeaker down from any height, positioning the speake... Read MoreRetail Price: $200.00 Our Price: $69.00
Free Shipping (orders over $99)
Suggested Accessories
Description

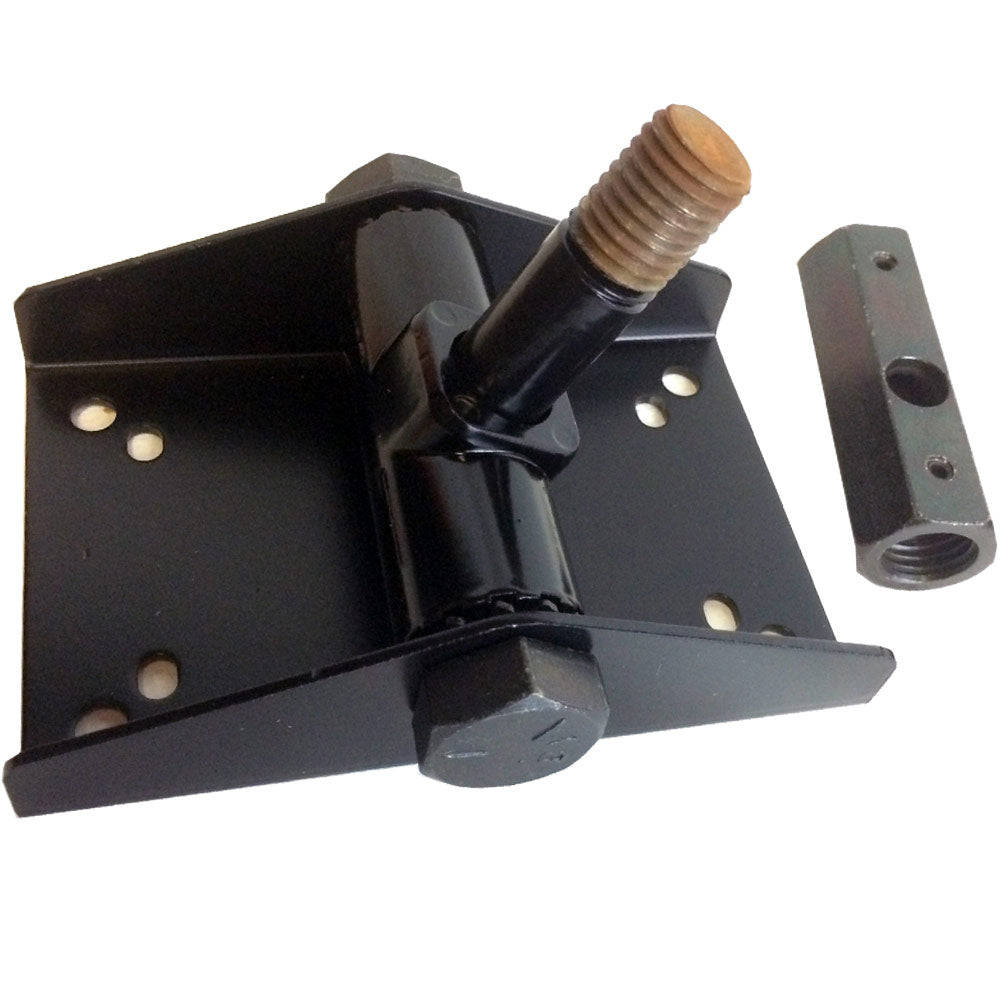

The MM-020X is specially designed to suspend loudspeakers with a four-hole mounting pattern, weighing up to 60 lb./27 Kg from overhead structures using standard off-the-shelf schedule 40, 1/2 NPT pipe. This allows the installer to bring the loudspeaker down from any height, positioning the speaker closer to the audience, often reducing the speaker's size and power rating needs.
MM-020X provides a very clean loudspeaker installation because signal wire and safety cables can be passed through the pipe from the ceiling to the speaker's terminal block without being seen. Also, this design adapts directly to standard loudspeaker mounting hole patterns so no modifications will be necessary. In addition to the standard pipe, the MM-020X can also be suspended by a 3/4-10 threaded rod when the all-thread adapter is selected (sold separately).
Pan angle adjustments are achieved where the MultiMount and the vertical tube (pipe) connect. Down tilt adjustments are achieved at the mount's two side clutch lock points. This mount design lends itself ideally for applications in commercial and retail locations, theme parks, churches, schools, auditoriums and theatrical applications.
More +
Product Specs
Material | Structural steel alloy |
Finish | Powder coat |
Tilt rotation | 180° max |
Pan rotation | 360° max |
Color | Black |
Working load limit | 60 lbs. (27.2 kg) |
Design factor | 10:1 ratio |
Net weight | 4 lbs (1.8 Kg) |
Shipping weight | 5 lbs/2.3 Kg each |
Pack count | 1/carton |
