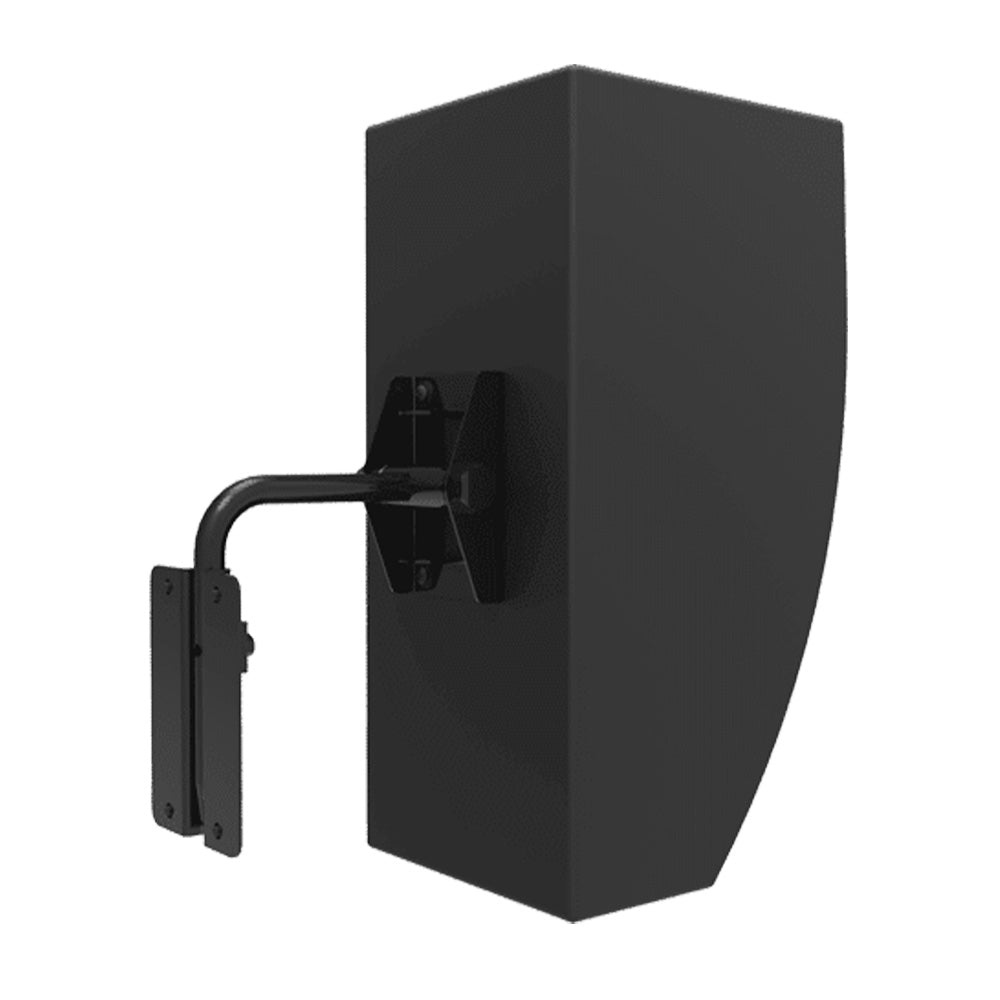

Adaptive Technologies MM-022-BT - MultiMount Series Pan / Tilt Speaker Wall Mount
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The universal MultiMountª speaker mount supports loudspeakers weighing up to 60 lbs./27 kg, quickly attaching them to walls, ceilings, overhangs, and other structural sur faces. Speakers can be aimed and locked in almost any direction or angle through the use of independent pan, tilt, and clockwise adjustments. MultiMount- 022 also adapts to both horizontally and vertically oriented standard speaker mounting hole patterns.
Tilt adjustments are made independently at the side MM-022of the speaker adapter plate. Panning adjustments are made independently at the mounting plate and a third rotation is available between the speaker and the support arm. This rotation is especially useful in directing sound from ceiling and under balcony applications where mounting space is limited. Safety cables are available separately.
Features:
- Weather resistant for indoor and outdoor use
- Separate pan, tilt and clockwise aiming adjustments
- Adapts speakers to ceilings and other overhead sur faces
- Accommodates standard single and two hole loudspeaker mounting patterns
| Material | Structural Steel Alloy |
| Finish | Powder Coat |
| Color | Black and White |
| Working Load Limit | 60 lbs. (27.2 kg) max |
| Design Factor | 10:1 ratio |
| Net Weight | 4 lbs. (1.8 kg) each |
| Shipping Weight | 5 lbs. (2.2 kg) each |
| Pack Count | 1/carton |
The universal MultiMountª speaker mount supports loudspeakers weighing up to 60 lbs./27 kg, quickly attaching them to walls, ceilings, overhangs, and other structural sur faces. Speakers can be aimed and locked in almost any direction or angle through the use of independent pan, tilt, and clockwise adjustments. MultiMount- 022 also adapts to both horizontally and vertically oriented standard speaker mounting hole patterns.
Tilt adjustments are made independently at the side MM-022of the speaker adapter plate. Panning adjustments are made independently at the mounting plate and a third rotation is available between the speaker and the support arm. This rotation is especially useful in directing sound from ceiling and under balcony applications where mounting space is limited. Safety cables are available separately.
Features:
- Weather resistant for indoor and outdoor use
- Separate pan, tilt and clockwise aiming adjustments
- Adapts speakers to ceilings and other overhead sur faces
- Accommodates standard single and two hole loudspeaker mounting patterns
| Material | Structural Steel Alloy |
| Finish | Powder Coat |
| Color | Black and White |
| Working Load Limit | 60 lbs. (27.2 kg) max |
| Design Factor | 10:1 ratio |
| Net Weight | 4 lbs. (1.8 kg) each |
| Shipping Weight | 5 lbs. (2.2 kg) each |
| Pack Count | 1/carton |
