Adaptive Technologies MM-023-BT - MultiMount Series Pan / Tilt Speaker Wall Mount
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

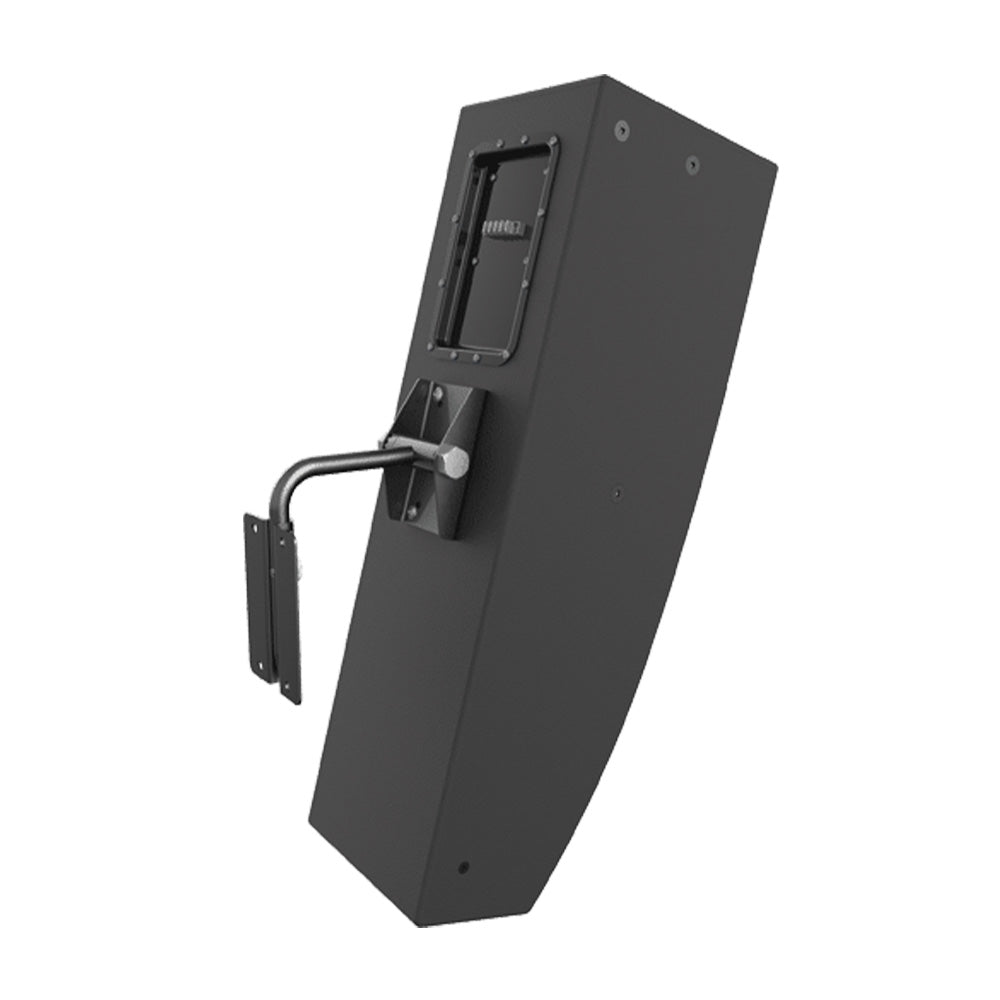

This universal speaker mount supports loudspeakers with a 90 x 90mm or 100 x 100mm VESA mounting pattern, quickly attaching them to walls, ceilings, overhangs, and other structural members in either the vertical or horizontal orientation. Speakers weighing up to 60 lb. are independently adjusted and locked in almost any direction or angle through the use of independent pan and tilt adjustments.
The MM-023-BT's unique support arm serves as a convenient carrying handle to lift speakers into place where they can be inserted into the wall mounting plate. Because the mounting plate supports the weight of the speaker, the installers hands are free to complete the wiring and positioning process. Tilt adjustments are made at the side of the speaker adapter plate. Panning adjustments are made at the mounting plate.
Features:
- Independent, no drift, pan and tilt controls
- Infinite locking adjustments
- Single man speaker installations
- Conforms to 90 x 90mm and 100 x 100mm VESA mounting hole patterns
- Compatible with PoleStarTM PM-010 pole adapter (sold separately)
| Materials | Structural Steel Alloy |
| Finish | Powder Coat |
| Color | Black |
| Tilt Rotation | up to: 180Á max. |
| Swivel Rotation | up to: 140Á max. |
| Working Load Limit | 60 lbs. (27.2 Kg) max. |
| Design Factor | 10:1 |
| Net WGT | 4 lbs. (1.8 Kg) each |
| Shipping WGT | 5 lbs. (2.3 Kg) each |
| Pack Count | 1 unit/carton |
| Contents | 1 pc Mounting Plate 1 pc Speaker Adapter 1 pc Support Arm Assy 1 pc Hardware Kit |
This universal speaker mount supports loudspeakers with a 90 x 90mm or 100 x 100mm VESA mounting pattern, quickly attaching them to walls, ceilings, overhangs, and other structural members in either the vertical or horizontal orientation. Speakers weighing up to 60 lb. are independently adjusted and locked in almost any direction or angle through the use of independent pan and tilt adjustments.
The MM-023-BT's unique support arm serves as a convenient carrying handle to lift speakers into place where they can be inserted into the wall mounting plate. Because the mounting plate supports the weight of the speaker, the installers hands are free to complete the wiring and positioning process. Tilt adjustments are made at the side of the speaker adapter plate. Panning adjustments are made at the mounting plate.
Features:
- Independent, no drift, pan and tilt controls
- Infinite locking adjustments
- Single man speaker installations
- Conforms to 90 x 90mm and 100 x 100mm VESA mounting hole patterns
- Compatible with PoleStarTM PM-010 pole adapter (sold separately)
| Materials | Structural Steel Alloy |
| Finish | Powder Coat |
| Color | Black |
| Tilt Rotation | up to: 180Á max. |
| Swivel Rotation | up to: 140Á max. |
| Working Load Limit | 60 lbs. (27.2 Kg) max. |
| Design Factor | 10:1 |
| Net WGT | 4 lbs. (1.8 Kg) each |
| Shipping WGT | 5 lbs. (2.3 Kg) each |
| Pack Count | 1 unit/carton |
| Contents | 1 pc Mounting Plate 1 pc Speaker Adapter 1 pc Support Arm Assy 1 pc Hardware Kit |
