Adaptive Technologies MM-024-BT - MultiMount Series Pan / Tilt Speaker Wall Mount
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

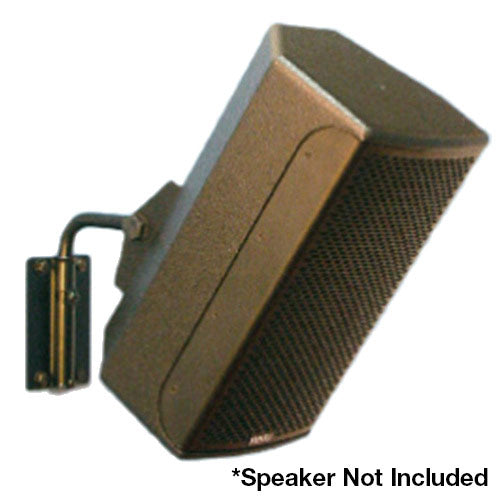

This universal speaker mount supports loudspeakers weighing up to 60 lbs. in a vertical orientation, quickly attaching them to walls, ceilings, overhangs, and other structural members. Speakers are independently aimed and locked in almost any direction or angle through the use of independent pan, tilt, and swivel adjustments.
The MultiMount-24Õs unique arm acts as a convenient carrying handle to lift speakers into place then inserts into the wall mounting plate. Once inserted, the mounting plate does the job of handling all the weight, leaving the installers hands free to complete the wiring and positioning process.
Tilt adjustments are made at the side of the speaker adapter plate. Panning adjustments are made at the mounting plate and a third rotation is available between the speaker and the support arm. This rotation is especially useful in directing sound from ceilings and under balcony locations where mounting space is limited.
Features:
- Conforms to multiple mounting hole patterns
- Independent pan and tilt controls
- Infinite locking adjustments
- No memory drift
- Single man speaker installations
- Optional safety cables available
| Materials | Structural Steel Alloy |
| Finish | Powder Coat |
| Color | Black |
| Tilt Rotation | up to: 180Á max. |
| Swivel Rotation | up to: 140Á max. |
| Working Load Limit | 60 lbs. (27.2 Kg) max. |
| Design Factor | 10:1 |
| Net WGT | 4 lbs. (1.8 Kg) each |
| Shipping WGT | 5 lbs. (2.3 Kg) each |
| Pack Count | 1 unit/carton |

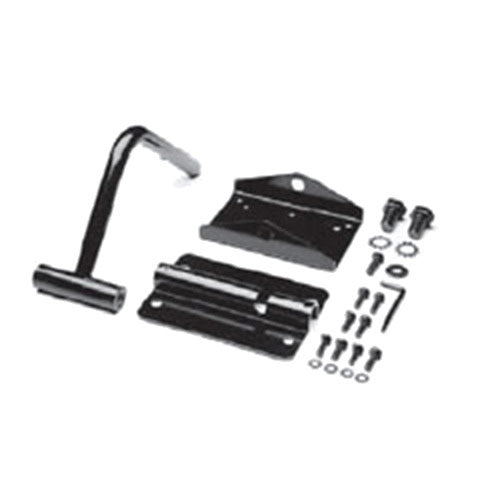

| Contents | 1 pc Mounting Plate 1 pc Speaker Adapter 1 pc Support Arm Assy 1 pc Hardware Kit |
This universal speaker mount supports loudspeakers weighing up to 60 lbs. in a vertical orientation, quickly attaching them to walls, ceilings, overhangs, and other structural members. Speakers are independently aimed and locked in almost any direction or angle through the use of independent pan, tilt, and swivel adjustments.
The MultiMount-24Õs unique arm acts as a convenient carrying handle to lift speakers into place then inserts into the wall mounting plate. Once inserted, the mounting plate does the job of handling all the weight, leaving the installers hands free to complete the wiring and positioning process.
Tilt adjustments are made at the side of the speaker adapter plate. Panning adjustments are made at the mounting plate and a third rotation is available between the speaker and the support arm. This rotation is especially useful in directing sound from ceilings and under balcony locations where mounting space is limited.
Features:
- Conforms to multiple mounting hole patterns
- Independent pan and tilt controls
- Infinite locking adjustments
- No memory drift
- Single man speaker installations
- Optional safety cables available
| Materials | Structural Steel Alloy |
| Finish | Powder Coat |
| Color | Black |
| Tilt Rotation | up to: 180Á max. |
| Swivel Rotation | up to: 140Á max. |
| Working Load Limit | 60 lbs. (27.2 Kg) max. |
| Design Factor | 10:1 |
| Net WGT | 4 lbs. (1.8 Kg) each |
| Shipping WGT | 5 lbs. (2.3 Kg) each |
| Pack Count | 1 unit/carton |
| Contents | 1 pc Mounting Plate 1 pc Speaker Adapter 1 pc Support Arm Assy 1 pc Hardware Kit |
