Adaptive Technologies MM-120-5102-AP - QSC 5102 Adapter Plate for MM-120 MultiMount
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

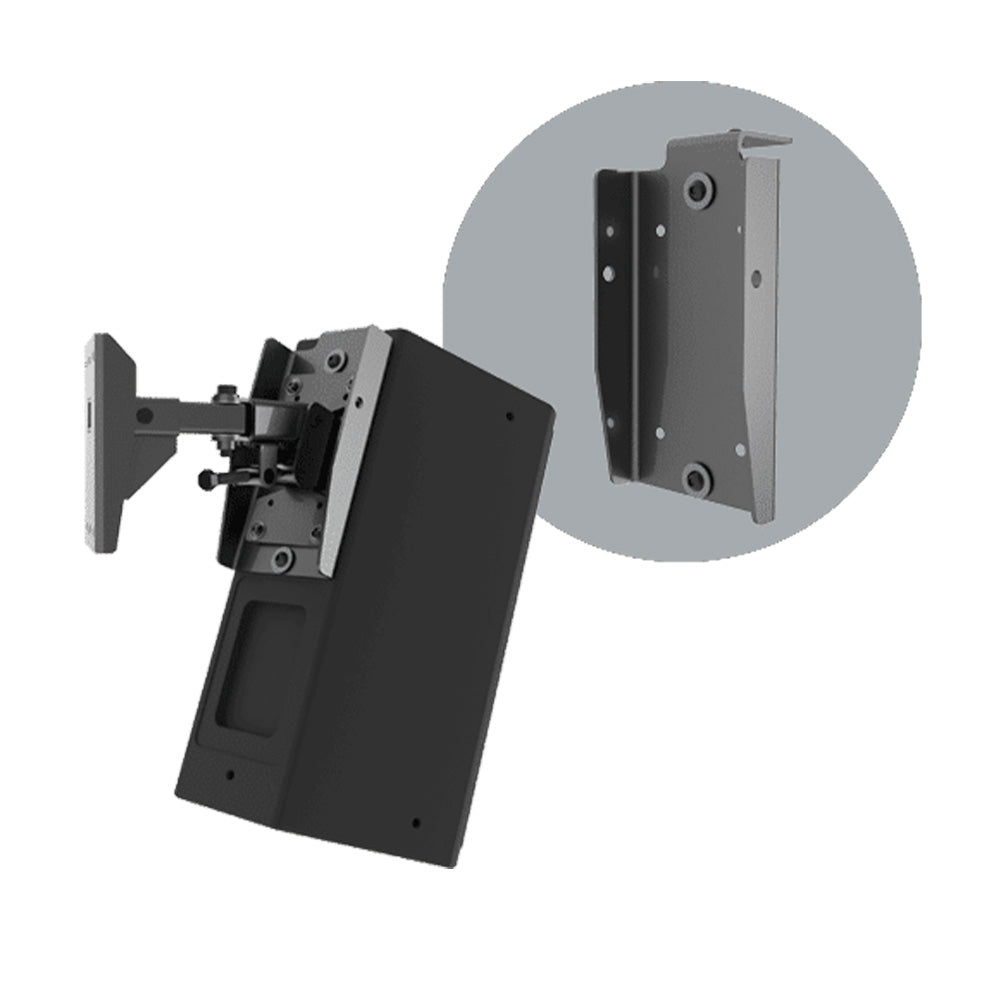

The MM-120-5102-AP Adapter, when used with the MM-120 wall mount, allows the QSC 5102 loudspeaker to be mounted and aimed from a wall or suspended and aimed from a ceiling using the MM3RDX-120 ceiling mount (see separate data sheets), both of which offer pan and tilt aiming capabilities. The MM-3RDX-120 also offers a clockwise rotation. This Adapter, which is powder coated black to match the wall and ceiling mount finish, bolts directly to the speaker's rigging points and provides four threaded studs that secure to the MM-120 and MM3RDX-120 mounts.
Features:
- Adapts MM-120 and MM-3RDX-18 to QSC 5102
- This product accompanies the MM-120 and MM-3RDX-120. It may not be used by itself.
- Only Simple Hand tools required.
| Materials | Structural Steel Alloy |
| Finish | Powder Coat |
| Color | Black |
| Working Load Limit | 120 lbs. (54 Kg) max. |
| Design Factor | 5:1 |
| Contents | 1 pc. Speaker Adapt Assy 1 pc. Hardware Kit |
The MM-120-5102-AP Adapter, when used with the MM-120 wall mount, allows the QSC 5102 loudspeaker to be mounted and aimed from a wall or suspended and aimed from a ceiling using the MM3RDX-120 ceiling mount (see separate data sheets), both of which offer pan and tilt aiming capabilities. The MM-3RDX-120 also offers a clockwise rotation. This Adapter, which is powder coated black to match the wall and ceiling mount finish, bolts directly to the speaker's rigging points and provides four threaded studs that secure to the MM-120 and MM3RDX-120 mounts.
Features:
- Adapts MM-120 and MM-3RDX-18 to QSC 5102
- This product accompanies the MM-120 and MM-3RDX-120. It may not be used by itself.
- Only Simple Hand tools required.
| Materials | Structural Steel Alloy |
| Finish | Powder Coat |
| Color | Black |
| Working Load Limit | 120 lbs. (54 Kg) max. |
| Design Factor | 5:1 |
| Contents | 1 pc. Speaker Adapt Assy 1 pc. Hardware Kit |
