Adaptive Technologies MM-120 - MultiMount Series Pan / Tilt Speaker Wall Mount
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

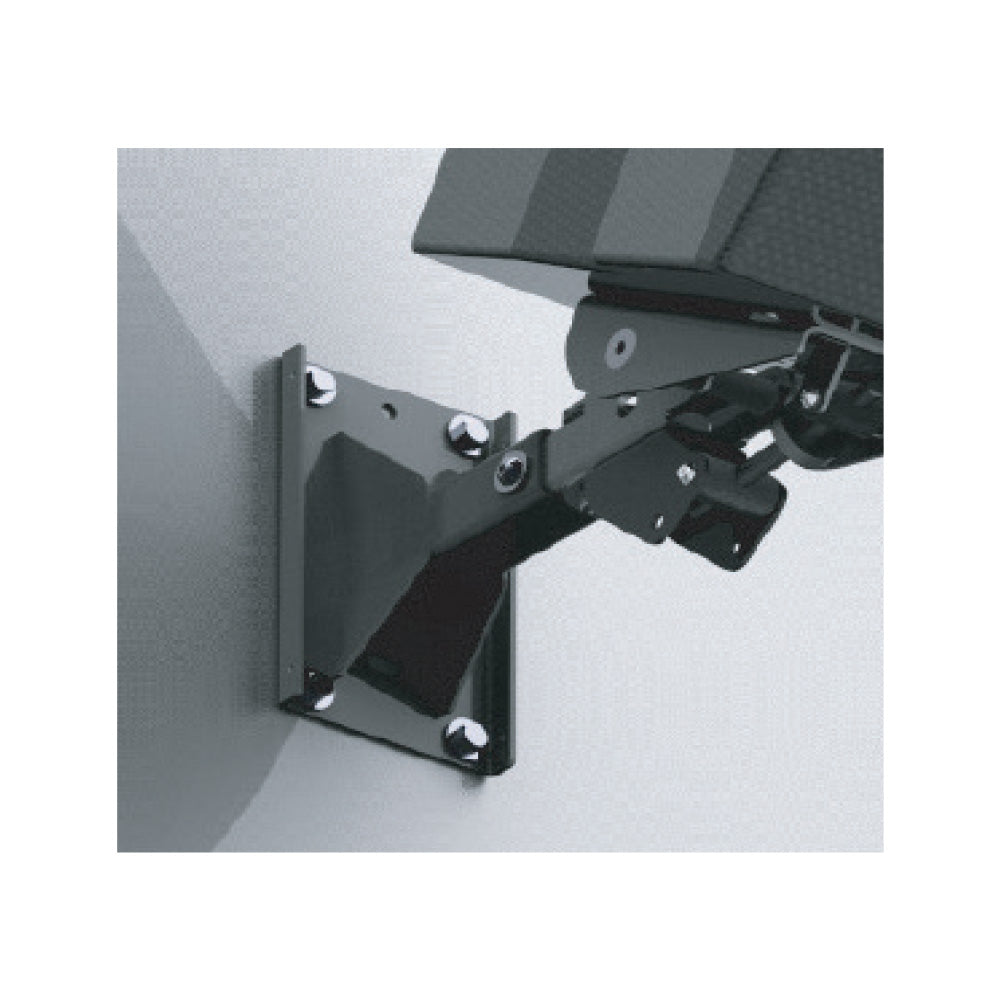

The MM-120 Speaker Mount supports speakers from its back and bottom or top panel, weighing up to 120 lb., and is fully adjustable in both pan and tilt aiming, plus comes with a telescoping wall arm to adjust the relative distance between the speaker and the wall. This design accommodates speakers that offer four-hole mounting patterns on the back panel of the speaker. (See dimensions section.)
This mount is exceptionally easy to install and use with large format loudspeakers. They are safe and offer greater than 5:1 design factor. The MM-120's unique telescoping arm acts as a convenient carrying handle to lift speakers into place then inserts into the wall mounting plate. Once inserted, the mounting plate supports the weight of the speaker leaving the installer's hands free to complete the wiring and positioning process.
Features:
- Infinite tilt adjustments thumb-wheel.
- Pan angle secured by clutch style lock.
- Mounts to walls studs or optional stud plate.
- Telescoping arm secures in three positions.
- Wall plate makes installation safe and quick.
- Adapts to 4 hole mounting patterns including 3-7/16 x 6-7/8 and 2-3/4 x 5 inch VESA pattern.
- Optional (sold separately): WP-16 Wall Stud Adapter, Safety Cable kits, Internal Backing Plate MM-120-BP
| Material | Structural Steel Alloy |
| Finish | Powder Coat |
| Tilt Adjustment | 45 degrees |
| Swivel Adjustment | 180 degrees |
| Color | Black |
| Working Load Limit | 120 lbs (45 kg) max |
| Design Factor | 5:1 ratio |
| Net weight | 11 lbs (5 kg) |
| Shipping weight | 13 lbs (5.9 kg) each |
| Pack count | 1 per carton |
| Package contents | 1 pc Speaker Adapt Assy 1 pc Wall Mount 1 pc Extension Tube 1 pc Button Screw 3/8-16 x 2.5 in long 2 pcs flat washers 3/8 1 pc Nyloc Nut 3/8-16 |
The MM-120 Speaker Mount supports speakers from its back and bottom or top panel, weighing up to 120 lb., and is fully adjustable in both pan and tilt aiming, plus comes with a telescoping wall arm to adjust the relative distance between the speaker and the wall. This design accommodates speakers that offer four-hole mounting patterns on the back panel of the speaker. (See dimensions section.)
This mount is exceptionally easy to install and use with large format loudspeakers. They are safe and offer greater than 5:1 design factor. The MM-120's unique telescoping arm acts as a convenient carrying handle to lift speakers into place then inserts into the wall mounting plate. Once inserted, the mounting plate supports the weight of the speaker leaving the installer's hands free to complete the wiring and positioning process.
Features:
- Infinite tilt adjustments thumb-wheel.
- Pan angle secured by clutch style lock.
- Mounts to walls studs or optional stud plate.
- Telescoping arm secures in three positions.
- Wall plate makes installation safe and quick.
- Adapts to 4 hole mounting patterns including 3-7/16 x 6-7/8 and 2-3/4 x 5 inch VESA pattern.
- Optional (sold separately): WP-16 Wall Stud Adapter, Safety Cable kits, Internal Backing Plate MM-120-BP
| Material | Structural Steel Alloy |
| Finish | Powder Coat |
| Tilt Adjustment | 45 degrees |
| Swivel Adjustment | 180 degrees |
| Color | Black |
| Working Load Limit | 120 lbs (45 kg) max |
| Design Factor | 5:1 ratio |
| Net weight | 11 lbs (5 kg) |
| Shipping weight | 13 lbs (5.9 kg) each |
| Pack count | 1 per carton |
| Package contents | 1 pc Speaker Adapt Assy 1 pc Wall Mount 1 pc Extension Tube 1 pc Button Screw 3/8-16 x 2.5 in long 2 pcs flat washers 3/8 1 pc Nyloc Nut 3/8-16 |
