Adaptive Technologies MP-1.5NPS-TA - Sound Isolated Strut Adapter for 1.5 Inch Pipe
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

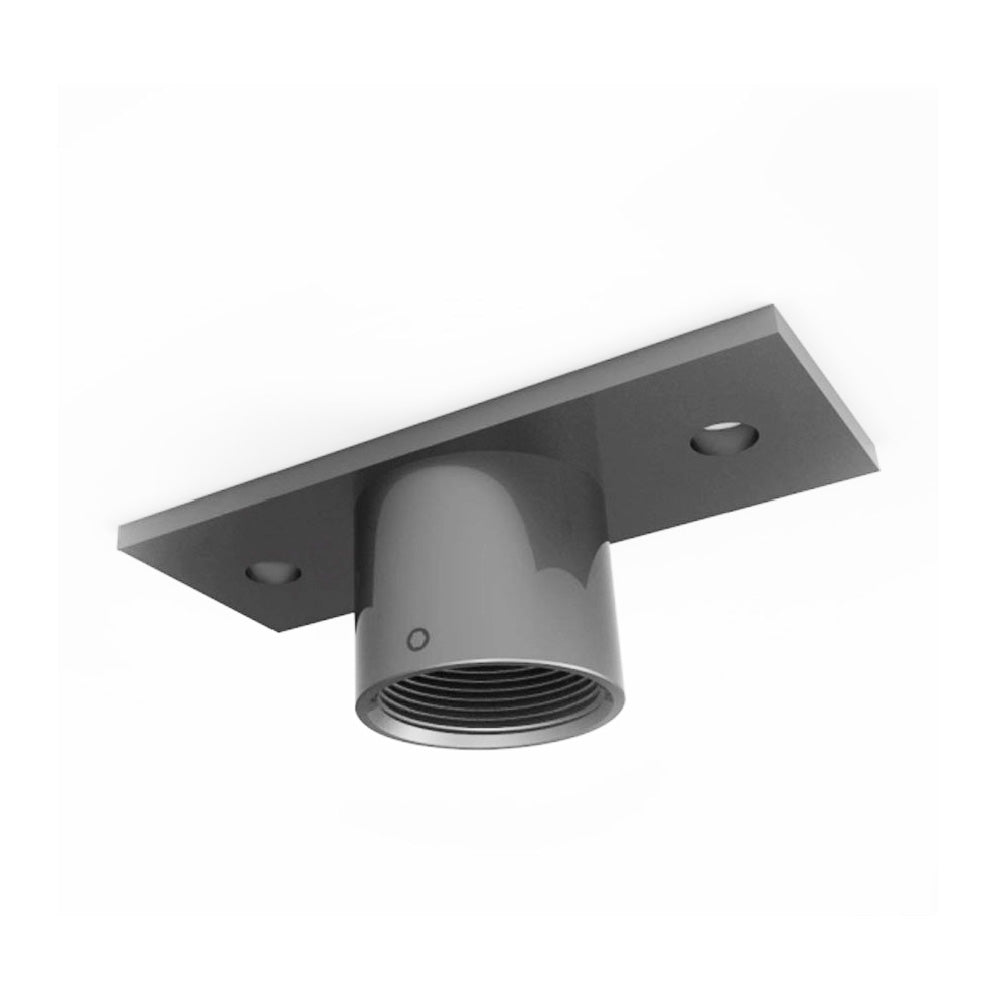

The MP-1.5NPS-TA is a tube adapter that connects standard 1-1/2" sched-40 NPS pipes to channel strut. This adapter allows speakers and other objects to be mounted under channel strut using standard off the shelf 1-1/2" sched-40 NPS pipes. This adapter comes with a thick rubber pad and rubberized hardware to block sound and vibrations from traveling between the pipe and strut.
Features:
- For overhead strut applications.
- Adapts to standard schedule-40 11/2" dia. pipe.
- Vibrations are Isolated between Pipe and Strut
| Materials | Structural Steel |
| Finish | Powder Coat |
| Color | Black |
| Design Factor | 7:1 |
| WLL | 220 lb/ 100 Kg |
| Shipping Weight | 2.2 lbs / 1 Kg. |
| Package Contents | 1 pc 11/2" Tube Adapter 1 pc Sound Isolation Washer 1 pc Flange Bolt 1/2-13X1.5 1 pc Set Screw, _-20 1 pc Sound Isolation Pad 1 pc Channel Retainer Nut 1/2-13 |
The MP-1.5NPS-TA is a tube adapter that connects standard 1-1/2" sched-40 NPS pipes to channel strut. This adapter allows speakers and other objects to be mounted under channel strut using standard off the shelf 1-1/2" sched-40 NPS pipes. This adapter comes with a thick rubber pad and rubberized hardware to block sound and vibrations from traveling between the pipe and strut.
Features:
- For overhead strut applications.
- Adapts to standard schedule-40 11/2" dia. pipe.
- Vibrations are Isolated between Pipe and Strut
| Materials | Structural Steel |
| Finish | Powder Coat |
| Color | Black |
| Design Factor | 7:1 |
| WLL | 220 lb/ 100 Kg |
| Shipping Weight | 2.2 lbs / 1 Kg. |
| Package Contents | 1 pc 11/2" Tube Adapter 1 pc Sound Isolation Washer 1 pc Flange Bolt 1/2-13X1.5 1 pc Set Screw, _-20 1 pc Sound Isolation Pad 1 pc Channel Retainer Nut 1/2-13 |
