Adaptive Technologies MP-1.5NPT-GSA - Gimballed UniStrut Adapter Mount
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

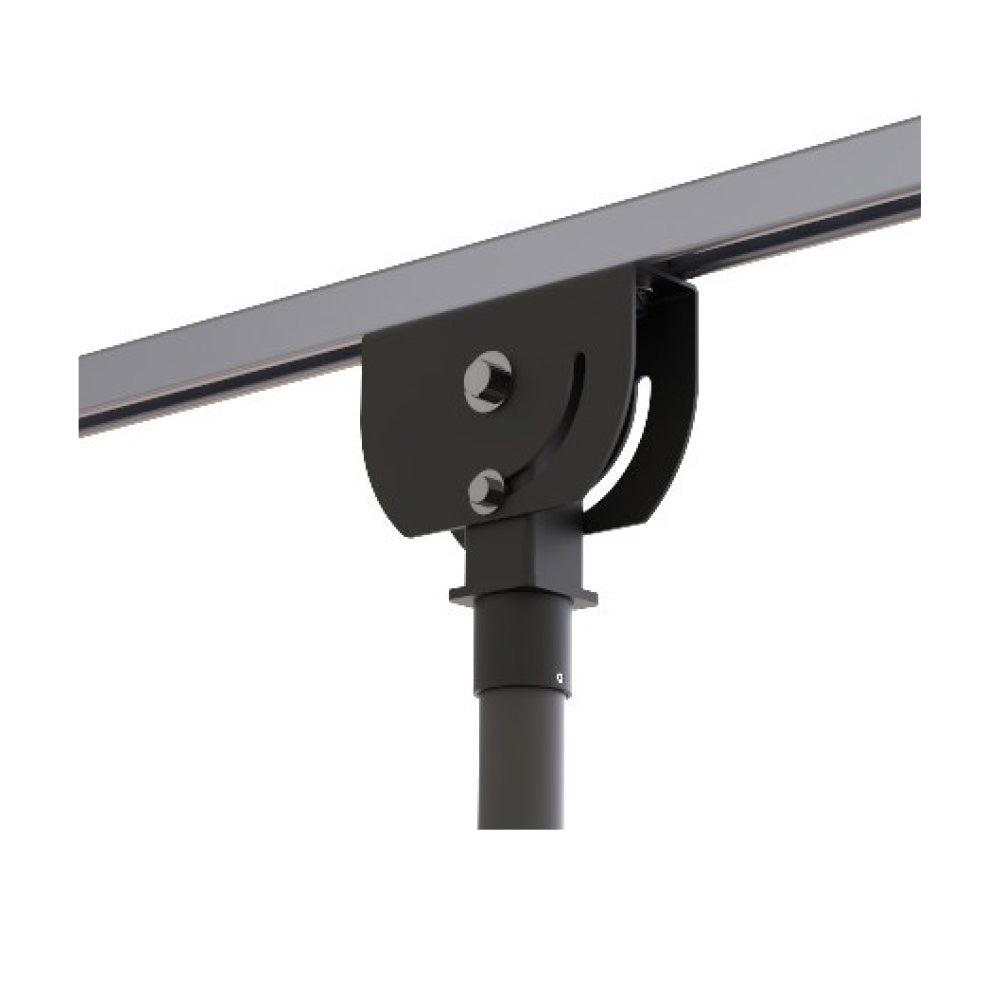

Use Adaptive's gimballed strut attachment to suspend loudspeakers, video displays and other objects from Unistrut when attached to angled ceiling and roof structures, up to 90 degrees off vertical. This adapter mounts quickly and permanently to Unistrut channel with 1/2-13 spring loaded nuts (not included) or can be bolted through the strut when space permits. This SwivelMount suspends and locks objects weighing up to 150 lb using standard 1- 1/2" diameter steel pipe.
Features:
- For overhead audio and video applications.
- Adapts to standard off-the-shelf schedule 1-1/2" NPT and NPS threaded steel pipe
| Materials | Structural Steel |
| Finish | Powder Coat |
| Color | Black |
| Design Factor | 7:1 |
| Working Load Limit | 150lbs |
| Shipping Weight | 6.5lb/3kg |
| Contents | 1 pc Gimballed Strut Adapter 2 pcs 3/8" Flat Washer 1 pc Instruction Sheet 2 pcs Flange bolt _-13x2" 2 pcs Retainer nut,1/2-13 2 pcs Nyloc Nut, 1/2-13 |
Use Adaptive's gimballed strut attachment to suspend loudspeakers, video displays and other objects from Unistrut when attached to angled ceiling and roof structures, up to 90 degrees off vertical. This adapter mounts quickly and permanently to Unistrut channel with 1/2-13 spring loaded nuts (not included) or can be bolted through the strut when space permits. This SwivelMount suspends and locks objects weighing up to 150 lb using standard 1- 1/2" diameter steel pipe.
Features:
- For overhead audio and video applications.
- Adapts to standard off-the-shelf schedule 1-1/2" NPT and NPS threaded steel pipe
| Materials | Structural Steel |
| Finish | Powder Coat |
| Color | Black |
| Design Factor | 7:1 |
| Working Load Limit | 150lbs |
| Shipping Weight | 6.5lb/3kg |
| Contents | 1 pc Gimballed Strut Adapter 2 pcs 3/8" Flat Washer 1 pc Instruction Sheet 2 pcs Flange bolt _-13x2" 2 pcs Retainer nut,1/2-13 2 pcs Nyloc Nut, 1/2-13 |
