Adaptive Technologies PM-24-6UP-G - PoleStar Series Outdoor Speaker Mounting System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

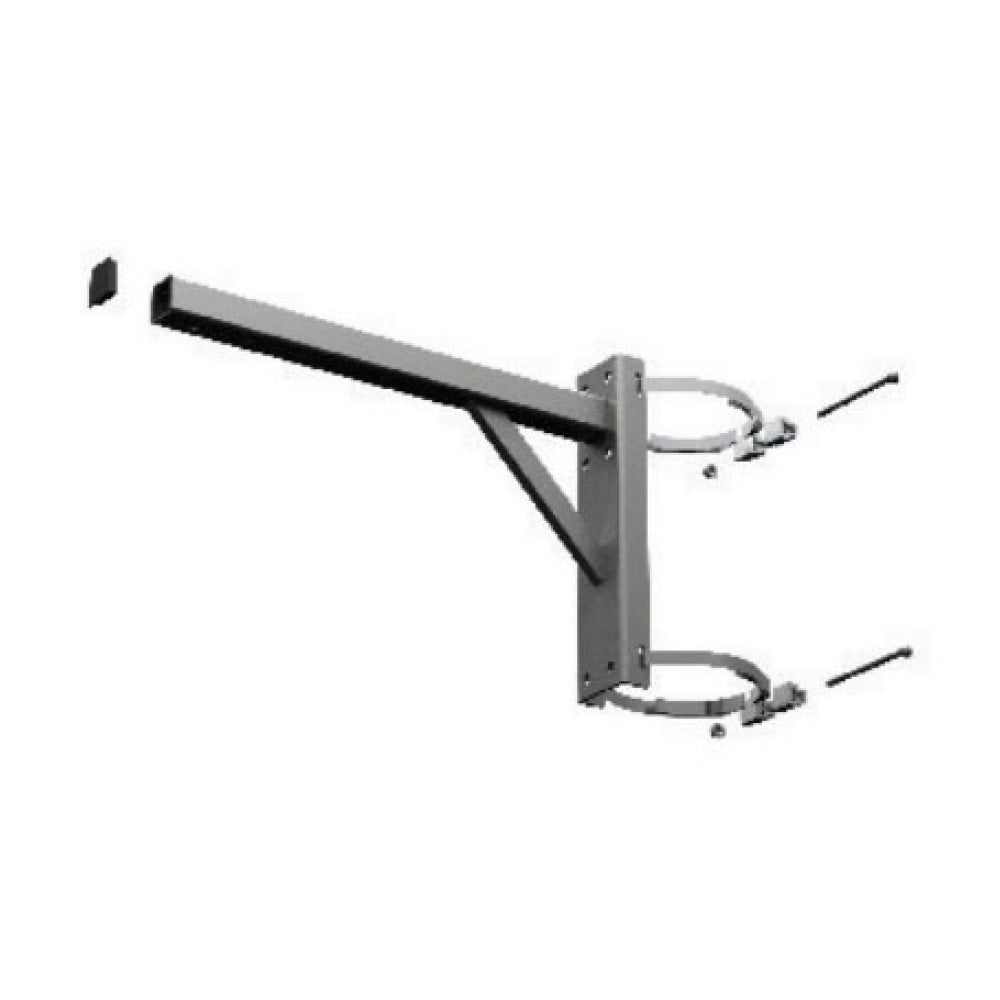

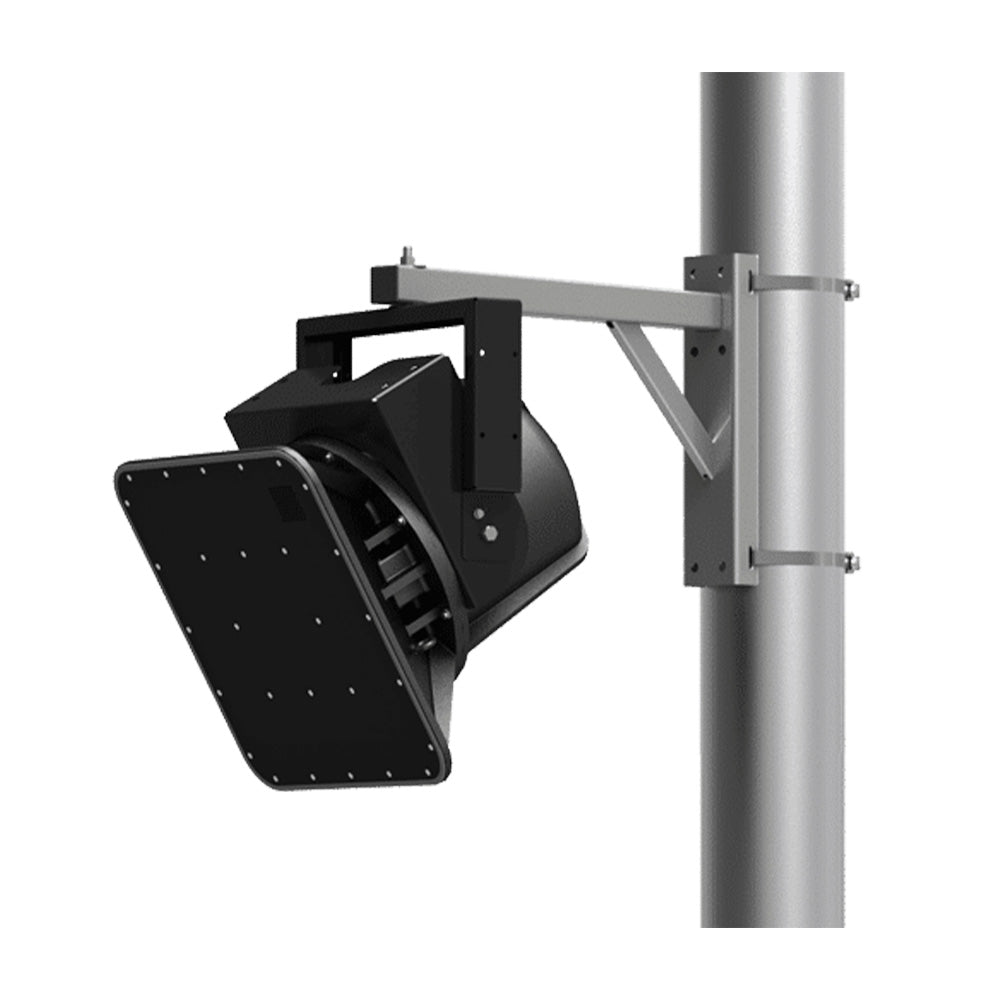

The UniFrame is a complete mounting solution for outdoor loudspeakers. Its design combines the attributes of the PoleStar stainless Òa-lacarteÓ version into just two models produced in steel and then galvanized to an outdoor weather rating. The UniFrame reduces the amount of parts required for the job site and saves installation time by combining the support arm and the pole adapter together into one assembly. In addition, two stainless steel band kits are included, which only require a socket set to assemble.
The support arm is welded together for extra strength and durability. Each arm includes three attach point mounting holes at the end of the arm that allow the installer to select the desired distance between the loudspeaker and the pole. One design accommodates pole diameters from 2Ó to 6Ó (50-152 mm) and the other from 6Ó (152 mm +) diameter poles and columns and larger.
Features:
- Uni-Frame assembly adds strength and reduces installation time.
- Longer pole interface increases structural capacity.
- Rugged outdoor galvanized finish to ASTM A123 and ISO1461 specifications.
- Three arm mounting points to accommodate all speaker models.
- Angled brace increases structural stability during severe weather conditions.
- Support arm may be oriented up or down for installation flexibility.
- Dual adapter may be secured to the Uni-Frame for a three-way installation.
| Material | Steel Alloy |
| Finish | Galvanized |
| Color | Silver |
| Working Load Limit | 200 lb / 90 Kg single speaker 300 lb / 136 Kg total for 3 speakers of equal weight |
| Design Factor | 10:1 ratio |
| Contents | 1pc: Uni-Frame Arm 1 pair: 90î Band Kit 1 set: Hardware Kit |
The UniFrame is a complete mounting solution for outdoor loudspeakers. Its design combines the attributes of the PoleStar stainless Òa-lacarteÓ version into just two models produced in steel and then galvanized to an outdoor weather rating. The UniFrame reduces the amount of parts required for the job site and saves installation time by combining the support arm and the pole adapter together into one assembly. In addition, two stainless steel band kits are included, which only require a socket set to assemble.
The support arm is welded together for extra strength and durability. Each arm includes three attach point mounting holes at the end of the arm that allow the installer to select the desired distance between the loudspeaker and the pole. One design accommodates pole diameters from 2Ó to 6Ó (50-152 mm) and the other from 6Ó (152 mm +) diameter poles and columns and larger.
Features:
- Uni-Frame assembly adds strength and reduces installation time.
- Longer pole interface increases structural capacity.
- Rugged outdoor galvanized finish to ASTM A123 and ISO1461 specifications.
- Three arm mounting points to accommodate all speaker models.
- Angled brace increases structural stability during severe weather conditions.
- Support arm may be oriented up or down for installation flexibility.
- Dual adapter may be secured to the Uni-Frame for a three-way installation.
| Material | Steel Alloy |
| Finish | Galvanized |
| Color | Silver |
| Working Load Limit | 200 lb / 90 Kg single speaker 300 lb / 136 Kg total for 3 speakers of equal weight |
| Design Factor | 10:1 ratio |
| Contents | 1pc: Uni-Frame Arm 1 pair: 90î Band Kit 1 set: Hardware Kit |
