Adaptive Technologies SAS-066-RB - GridLink 66-Inch Rigging Beam
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description

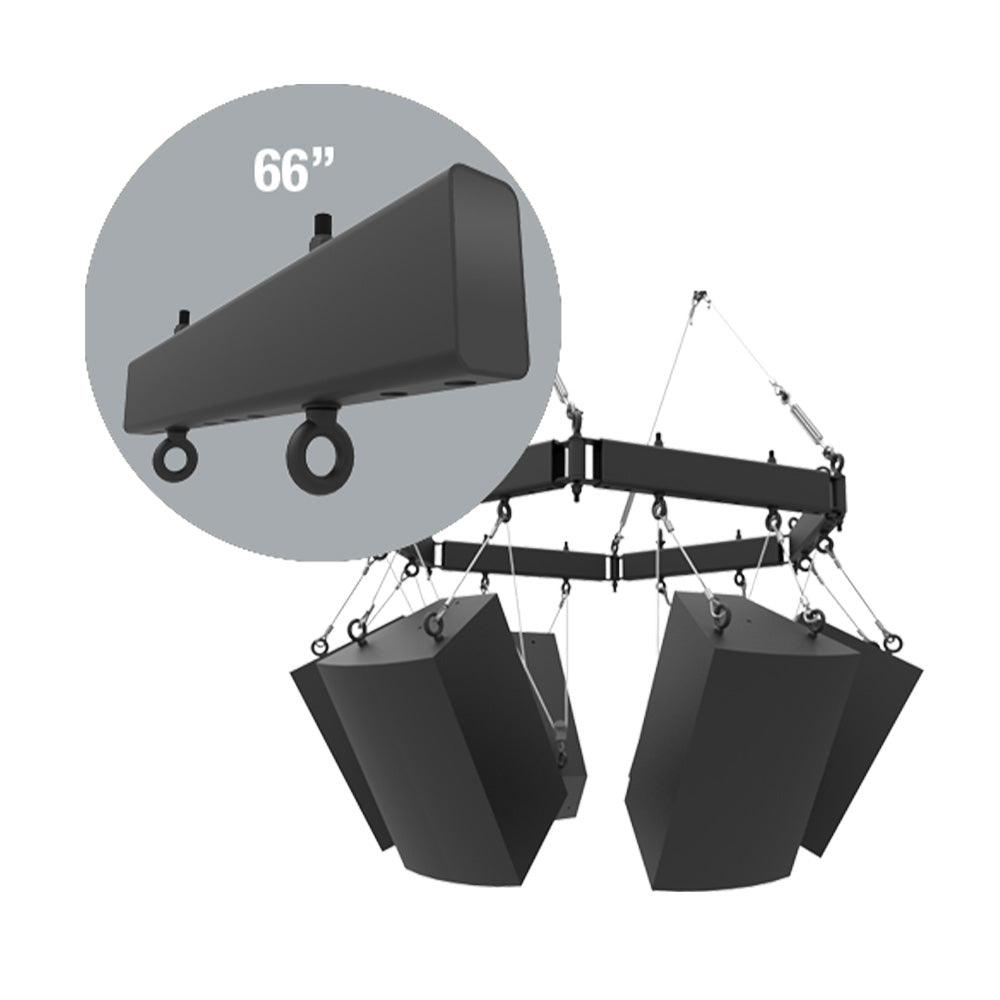

Use this rigging beam as one of several components to build a load-rated rigging grid assembly. Choose from several preengineered rigging beams, joiners and suspension options that allow you to design and assemble your own grid in dozens of different configurations (see GridLink data sheet). This rigging beam may also serve as a spreader bar to suspend objects between two trusses.
Features:
- Use as a spreader bar
- Compatible with GridLink Rigging System
- Comes with suspension hardware
About GridLink
GridLinkª suspension grids are comprised of standard length beams and beam connectors. The GridLinkª connectors act as a heavy-duty beam coupler and loadrated suspension point. In addition, they pivot horizontally to create a wide variety of grid sizes and shapes including rectangles, squares, hexagons and triangles.
Once assembled the Gridlinkª provides a solid suspension system for full arrays and clusters in single and multiple tiers offering unprecedented precision and ease in the aiming of loudspeakers. Up to 360¡ of horizontal adjustment is attainable using the Gridlinkª Cross Arm Kit and 90¡ of vertical adjustment is achievable through the use of ALLEN U-Series mounts and the Steerableª Tilt Cable Kit system.
| Materials | Structural Steel Alloy |
| Finish | Powder Coat |
| Color | Black |
| Working Load Limit | 305 lb. / 139 Kg |
| Safety Factor | 5:1 |
| Product Weight | 25.8 lb / 11.7 Kg |
| Contents | 1pc 66î Rigging Beam 2 pcs 1/2î X 5.5î Eye Bolts 2 pcs 1/2î Eye Nuts 2 pcs Black End Caps |
Use this rigging beam as one of several components to build a load-rated rigging grid assembly. Choose from several preengineered rigging beams, joiners and suspension options that allow you to design and assemble your own grid in dozens of different configurations (see GridLink data sheet). This rigging beam may also serve as a spreader bar to suspend objects between two trusses.
Features:
- Use as a spreader bar
- Compatible with GridLink Rigging System
- Comes with suspension hardware
About GridLink
GridLinkª suspension grids are comprised of standard length beams and beam connectors. The GridLinkª connectors act as a heavy-duty beam coupler and loadrated suspension point. In addition, they pivot horizontally to create a wide variety of grid sizes and shapes including rectangles, squares, hexagons and triangles.
Once assembled the Gridlinkª provides a solid suspension system for full arrays and clusters in single and multiple tiers offering unprecedented precision and ease in the aiming of loudspeakers. Up to 360¡ of horizontal adjustment is attainable using the Gridlinkª Cross Arm Kit and 90¡ of vertical adjustment is achievable through the use of ALLEN U-Series mounts and the Steerableª Tilt Cable Kit system.
| Materials | Structural Steel Alloy |
| Finish | Powder Coat |
| Color | Black |
| Working Load Limit | 305 lb. / 139 Kg |
| Safety Factor | 5:1 |
| Product Weight | 25.8 lb / 11.7 Kg |
| Contents | 1pc 66î Rigging Beam 2 pcs 1/2î X 5.5î Eye Bolts 2 pcs 1/2î Eye Nuts 2 pcs Black End Caps |
