Adaptive Technologies SAS-100-WM - Steerables Series Loudspeaker Wall Suspension and Aiming System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

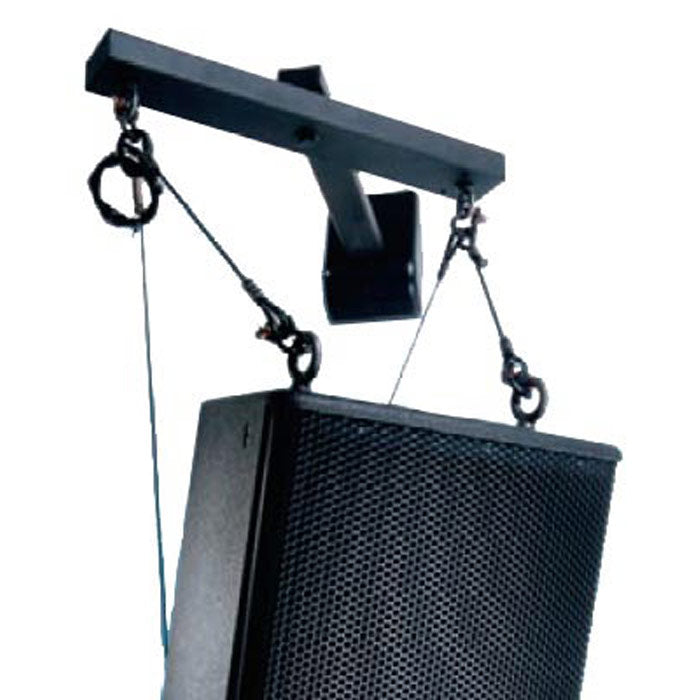

The Steerables SAS-100-WM suspends and aims loudspeakers from walls and other vertical structures.
Loudspeaker cabinets equipped with rigging or mounting points can be suspended and aimed with unprecedented ease and precision. Pan and tilt adjustments can be made or remade within seconds.
Ideal applications include permanently installed loudspeakers in churches, schools, gymnasiums, auditoriums, theme parks, nightclubs, bars and restaurants.
The Steerables unique Cross-Arm steering mechanism provides up to 360 degrees of pan control while tilt control is achieved either through the addition of a standard Allen Products U-Series brackets or Steerables Tilt Cable Kit.
">This all structural steel alloy is coated with a baked-on black textured powder coat finish. It comes in just two ready-to-mount sections and it will support loads of up to 100lbs with testing to over ten times its normal working load.
Package Contents
- 1 Suspension Arm
- 1 Cross Arm
- 1 Hardware Kit
Features
- Suspends flyable speakers from walls and other vertical surfaces
- Unique cross arm steering mechanism offers 360¡ of pan control
- Significant reductions in installation and planning time
- Accommodates standard Allen Products U-Series brackets and Steerables Tilt Cable Kits
- >Minimal mounting surface area required
| Materials | Structural steel alloy tube and plate |
| Finish | Powder Coat |
| Color | Textured black |
| Pan Rotation | 360Á horizontal swivel max |
| Working Load Limit | 100 lbs./45 kg. |
| Design Factor | 10:1 ratio based on ultimate yield point |
| Net Weight | 14.5 lb. / 6.6 Kg. |
| Shipping Weight | 17 lb. / 7.7 Kg. |
| Product Weight | 16.8 lb / 7.6 Kg |
| Contents | 1 pc. Suspension Arm 1 pc. Cross Arm 1 pc. Hardware Kit |
The Steerables SAS-100-WM suspends and aims loudspeakers from walls and other vertical structures.
Loudspeaker cabinets equipped with rigging or mounting points can be suspended and aimed with unprecedented ease and precision. Pan and tilt adjustments can be made or remade within seconds.
Ideal applications include permanently installed loudspeakers in churches, schools, gymnasiums, auditoriums, theme parks, nightclubs, bars and restaurants.
The Steerables unique Cross-Arm steering mechanism provides up to 360 degrees of pan control while tilt control is achieved either through the addition of a standard Allen Products U-Series brackets or Steerables Tilt Cable Kit.
">This all structural steel alloy is coated with a baked-on black textured powder coat finish. It comes in just two ready-to-mount sections and it will support loads of up to 100lbs with testing to over ten times its normal working load.
Package Contents
- 1 Suspension Arm
- 1 Cross Arm
- 1 Hardware Kit
Features
- Suspends flyable speakers from walls and other vertical surfaces
- Unique cross arm steering mechanism offers 360¡ of pan control
- Significant reductions in installation and planning time
- Accommodates standard Allen Products U-Series brackets and Steerables Tilt Cable Kits
- >Minimal mounting surface area required
| Materials | Structural steel alloy tube and plate |
| Finish | Powder Coat |
| Color | Textured black |
| Pan Rotation | 360Á horizontal swivel max |
| Working Load Limit | 100 lbs./45 kg. |
| Design Factor | 10:1 ratio based on ultimate yield point |
| Net Weight | 14.5 lb. / 6.6 Kg. |
| Shipping Weight | 17 lb. / 7.7 Kg. |
| Product Weight | 16.8 lb / 7.6 Kg |
| Contents | 1 pc. Suspension Arm 1 pc. Cross Arm 1 pc. Hardware Kit |
