Adaptive Technologies SAS-200-WM - Steerables Series Loudspeaker Wall Suspension and Aiming System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

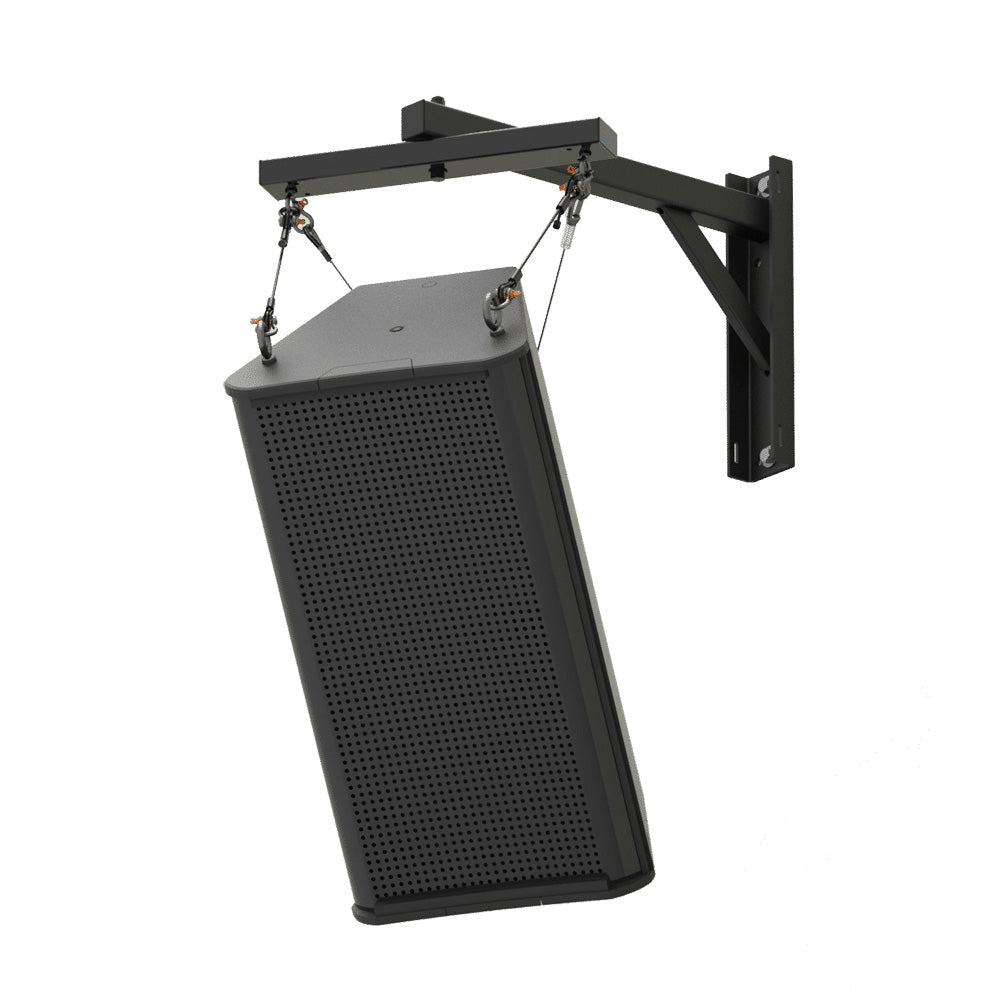

The Steerables¨ SAS-200-WM suspends and aims loudspeakers from walls and other vertical structures. Loudspeaker cabinets equipped with suspension or mounting points can be suspended and aimed with unprecedented ease and precision. Pan and tilt adjustments can be made or remade within seconds. Ideal applications include permanently installed loudspeakers in churches, schools, gymnasiums, auditoriums, theme parks nightclubs, bars and restaurants.
The Steerables¨ unique Cross-Arm steering mechanism provides up to 360 degrees of pan control while tilting is achieved either through the addition of a standard Allen Products U-Series bracket or Steerables¨ Tilt Cable Kit (see respective data sheets for more details). This all structural steel alloy assembly is coated with a baked-on black textured powder coat finish. It comes in just two ready to mount sections and will support loads of up to 100 lbs./45.5 Kg. with testing to over ten times its normal working load.
Features:
- Suspends riggable loudspeakers from walls and othervertical surfaces
- Unique cross arm steering mechanism offers 360¡ of pan control
- Significant reductions in installation and planning time
- Accommodates standard Allen Products U-Series brackets and Steerables¨ Tilt Cable Kit
- Minimal mounting surface area required
| Materials | Structural Steel Alloy Tube and Plate |
| Finish | Powder Coat |
| Color | Black |
| Pan Rotation | 360Á Horizontal Swivel Max |
| Working Load Limit | 200 lbs/45 kg |
| Design Factor | 7:1 Ratio Based on Ultimate Yield Point |
| Net Weight | 21.5 lbs/9.8 kg |
| Shipping Weight | 25 lbs/7.7 kg |
| Product Weight | 27.2 lb / 12.3 Kg |
| Contents | 1 pc. Wall arm 1 pc. Cross Arm 1 pc. Hardware Kit Hardware for mounting to the wall structure is not included. Tilt mechanism is ordered separately. |
The Steerables¨ SAS-200-WM suspends and aims loudspeakers from walls and other vertical structures. Loudspeaker cabinets equipped with suspension or mounting points can be suspended and aimed with unprecedented ease and precision. Pan and tilt adjustments can be made or remade within seconds. Ideal applications include permanently installed loudspeakers in churches, schools, gymnasiums, auditoriums, theme parks nightclubs, bars and restaurants.
The Steerables¨ unique Cross-Arm steering mechanism provides up to 360 degrees of pan control while tilting is achieved either through the addition of a standard Allen Products U-Series bracket or Steerables¨ Tilt Cable Kit (see respective data sheets for more details). This all structural steel alloy assembly is coated with a baked-on black textured powder coat finish. It comes in just two ready to mount sections and will support loads of up to 100 lbs./45.5 Kg. with testing to over ten times its normal working load.
Features:
- Suspends riggable loudspeakers from walls and othervertical surfaces
- Unique cross arm steering mechanism offers 360¡ of pan control
- Significant reductions in installation and planning time
- Accommodates standard Allen Products U-Series brackets and Steerables¨ Tilt Cable Kit
- Minimal mounting surface area required
| Materials | Structural Steel Alloy Tube and Plate |
| Finish | Powder Coat |
| Color | Black |
| Pan Rotation | 360Á Horizontal Swivel Max |
| Working Load Limit | 200 lbs/45 kg |
| Design Factor | 7:1 Ratio Based on Ultimate Yield Point |
| Net Weight | 21.5 lbs/9.8 kg |
| Shipping Weight | 25 lbs/7.7 kg |
| Product Weight | 27.2 lb / 12.3 Kg |
| Contents | 1 pc. Wall arm 1 pc. Cross Arm 1 pc. Hardware Kit Hardware for mounting to the wall structure is not included. Tilt mechanism is ordered separately. |
