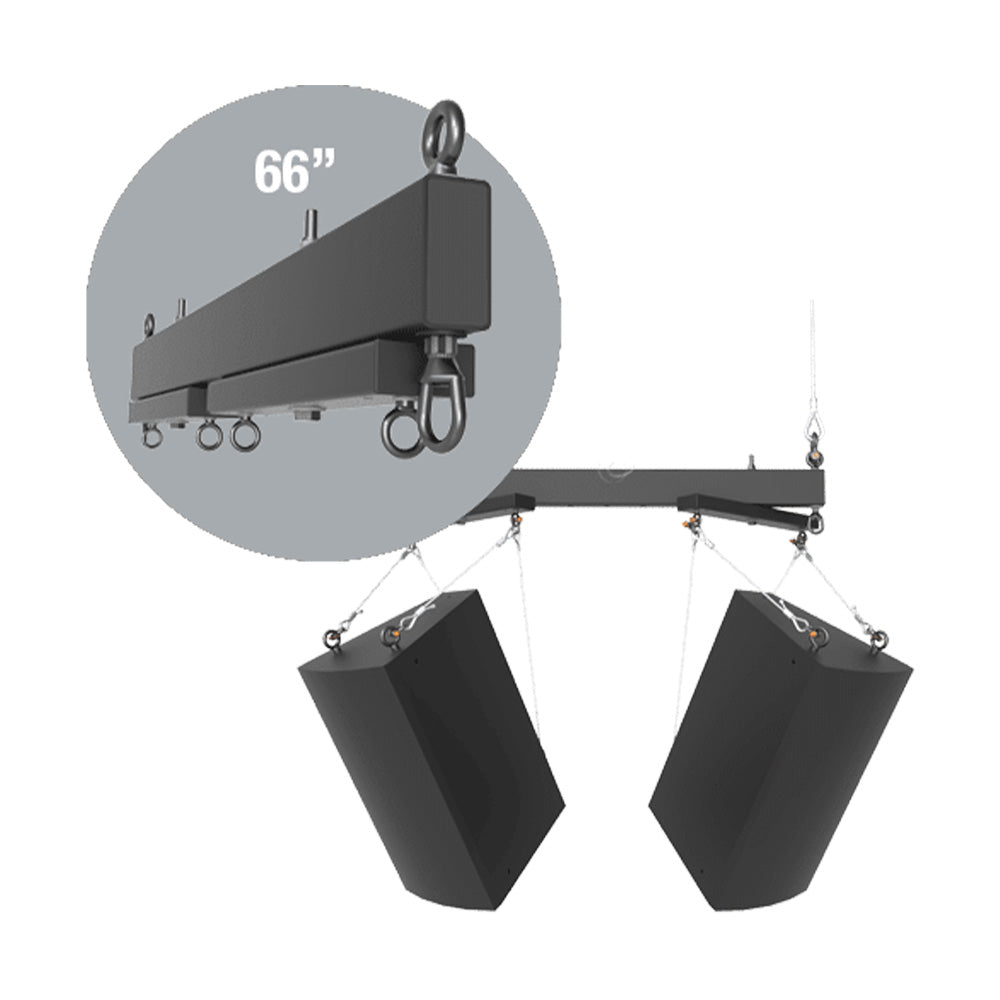

Adaptive Technologies SAS-2WA-66 - Two-Way Array Series Dual Loudspeaker Suspension / Aiming System


  • Dale #:

    ADAP-SAS2WA66
  • Availability:

    In Stock
  • Available for immediate shipment or pick-up from our Jamaica, NY warehouse. In-store pick-up is available Monday through Friday 8:30 am to 5:30 pm.

Description

The Two-Way-Array¨ is an easy to fly, off the shelf loudspeaker aiming and suspension system. It forms simple two speaker clusters for small frontofhouse applications and forms, left and right front-of-house clusters for larger venues. The Two-Way-Array¨ also serves as an excellent way to direct... Read More

Shipping Charges Apply

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The Two-Way-Array¨ is an easy to fly, off the shelf loudspeaker aiming and suspension system. It forms simple two speaker clusters for small frontofhouse applications and forms, left and right front-of-house clusters for larger venues.

The Two-Way-Array¨ also serves as an excellent way to direct sound toward two levels such as at a balcony with one speaker and the floor level with the other speaker. Multiple vertical tiers of Two-Way-Array¨ can accomplish the same for larger venues.

Ideal applications include theatres, churches, school auditoriums, gymnasiums and theme parks. Multiple hole placements allow for many combinations of dead hangs, down tilts and pan angles, depending on the specific sound coverage requirements for very precise aiming of sound.

Features:

  • Modular approach to 2 speaker arrays
  • Independent pan and tilt adjustment
  • Expandable horizontally and vertically
  • Fast predictable set up and aiming
  • Ideal for permanent and live sound applications
  • Off the shelf, ready-to-ship to the job site
  • Load-rated structural steel tubing and fittings
  • CG dependent, no chasing of angles

Optional Accessories:

  • Steerables Tilt Cable system controls tilt angle
  • Fixed width, U-Bracket controls tilt angle
  • Expands horizontally with Gridlinkª Connector
  • Add-on suspension eyebolt kit
  • Bridle and suspension cables (standard and custom)

More +

Product Specs

Material Structural steel alloy tube
Finish Powder coat
Color Black
Working Load Limit 500 lbs/227 Kg.
Design factor 10:1 ratio
Product Weight 47 lb / 21.3 Kg
Contents 1 pc. 66Ó Suspension Beam
2 pcs. Cross Arm
1 pc. Hardware Kit
1 set Load rated shackles and eyebolts
