Adaptive Technologies SAS-500-WM-36 - Steerables Series Extended Line Array Wall Mount
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

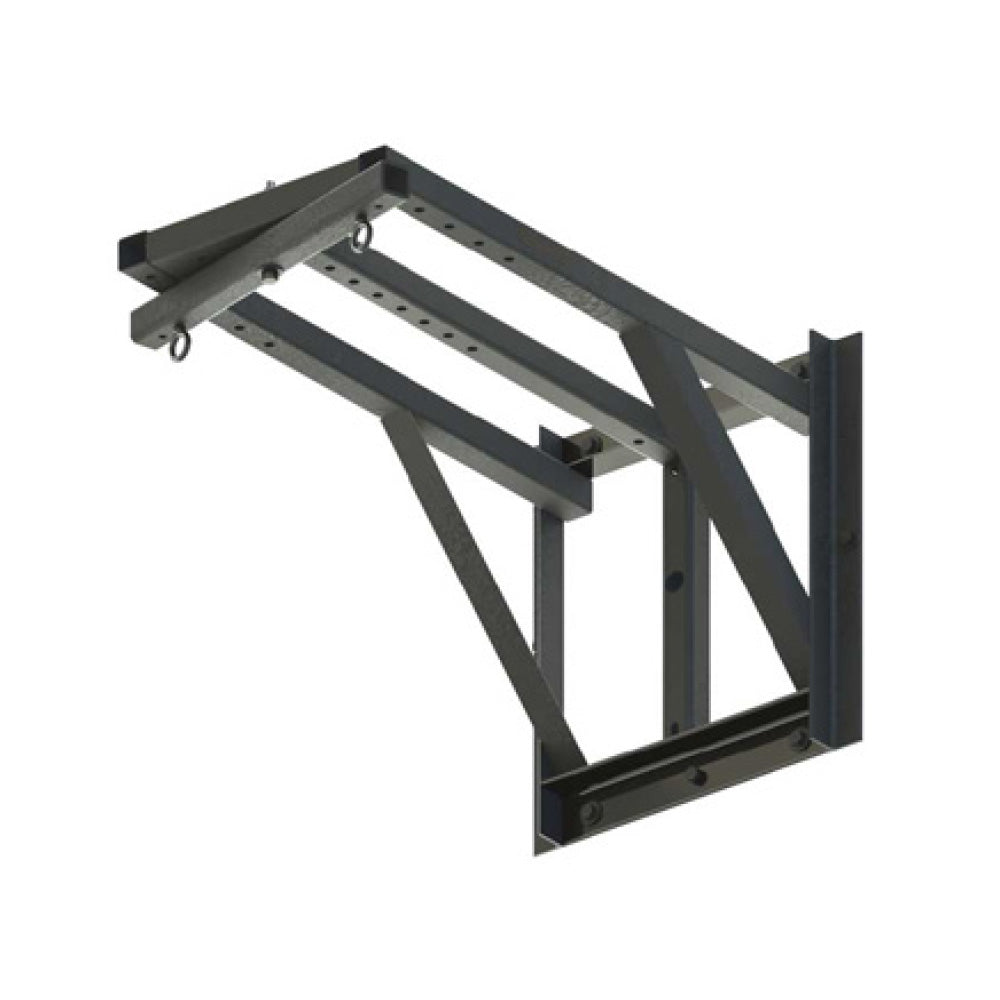

The extended frame Steerables Line Array Wall Mount creates a generous amount of down tilt angle where line arrays must be installed high above an audience from left and right of stage. either side of a stage. Pan angles, up to 45 degrees left or right are achieved by way of an upper cross arm that aims the line array into the desired angle.
Line Arrays suspend from their own overhead rigging points, which allows for the desired tilt angle. Its heavy black powder-coated steel framework assures safe installations and installs permanently.
This product makes for an extremely easy, safe and accurate way to install line arrays to walls and other structural vertical surfaces. Typical venues include school auditoriums, churches, theaters, bars, night clubs and theme parks.
Features:
- Permanently supports small or mid-size line arrays
- Easy Installation - goes up in minutes
- Provides up to 45 degrees of pan angle
- Utilizes the Line ArrayÕs grid for down tilt
- Rugged back powder coat finish
| Materials | Structural alloy steel shapes |
| Finish | Powder coat |
| Color | Black |
| Pan Angle | Up to +/- 45 degrees |
| Tilt Angle | Dependent upon line array specifications |
| Working Load Limit | 500 lb./227 Kg |
| Design Factor | 5:1 |
| Product Weight | 74 lb / 33.6 Kg |
| Contents | 1 pc. Structural Wall Mount Frame 1 pc. Cross Arm Kit |
The extended frame Steerables Line Array Wall Mount creates a generous amount of down tilt angle where line arrays must be installed high above an audience from left and right of stage. either side of a stage. Pan angles, up to 45 degrees left or right are achieved by way of an upper cross arm that aims the line array into the desired angle.
Line Arrays suspend from their own overhead rigging points, which allows for the desired tilt angle. Its heavy black powder-coated steel framework assures safe installations and installs permanently.
This product makes for an extremely easy, safe and accurate way to install line arrays to walls and other structural vertical surfaces. Typical venues include school auditoriums, churches, theaters, bars, night clubs and theme parks.
Features:
- Permanently supports small or mid-size line arrays
- Easy Installation - goes up in minutes
- Provides up to 45 degrees of pan angle
- Utilizes the Line ArrayÕs grid for down tilt
- Rugged back powder coat finish
| Materials | Structural alloy steel shapes |
| Finish | Powder coat |
| Color | Black |
| Pan Angle | Up to +/- 45 degrees |
| Tilt Angle | Dependent upon line array specifications |
| Working Load Limit | 500 lb./227 Kg |
| Design Factor | 5:1 |
| Product Weight | 74 lb / 33.6 Kg |
| Contents | 1 pc. Structural Wall Mount Frame 1 pc. Cross Arm Kit |
