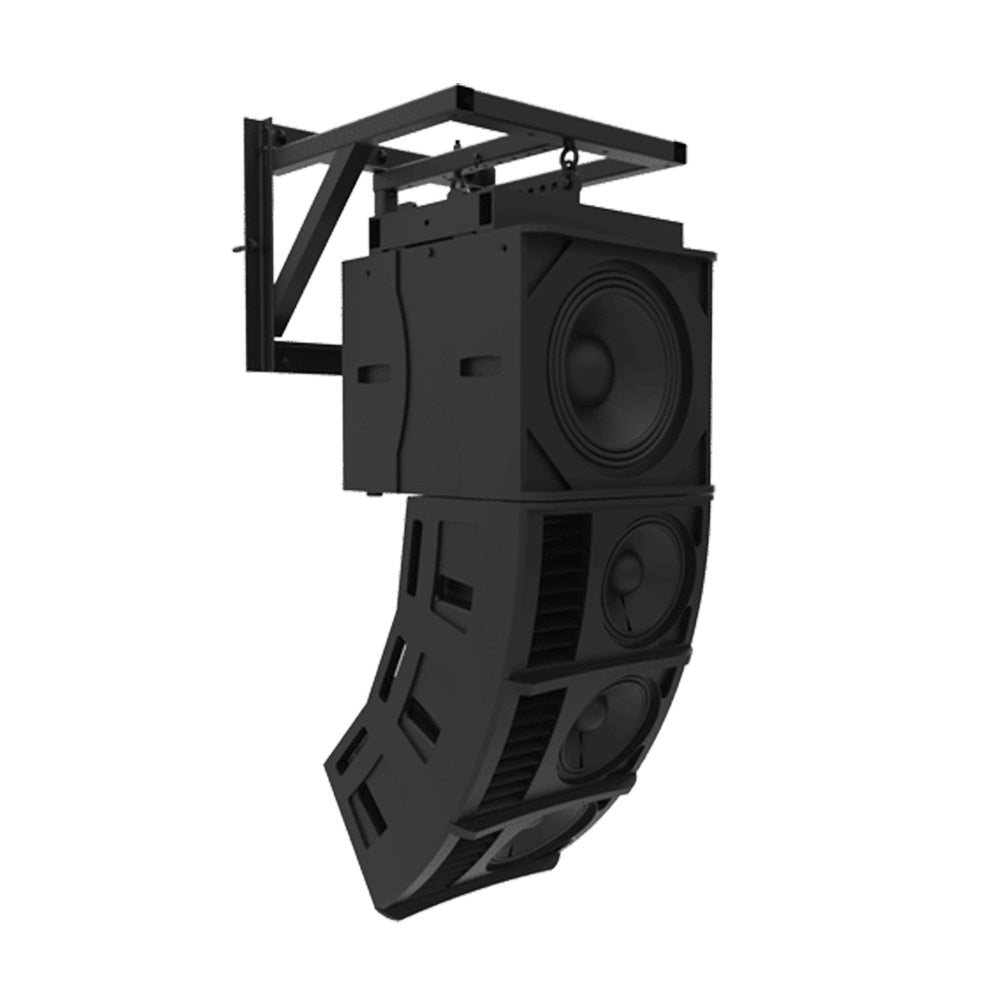

Adaptive Technologies SAS-500-WM - Steerables Series Line Array Wall Mount
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Steerables Line Array Wall Mount installs and aims line arrays on either side of a stage or building. ItÕs heavy black powdercoated steel framework assures safe installations and installs permanently. Line Arrays suspend from their own overhead rigging points, which allows for the desired tilt angle. Pan angles, up to 45 degrees left or right are achieved by way of an upper cross arm to aim the line array into the desired angle. An outdoor version, the SAS-500-WM-G, comes in a weather rated galvanized finish.
Features:
- Permanently supports small or mid-size line arrays
- Easy installation Ð goes up in minutes
- Provides up to 45 degrees of pan angle
- Utilizes the Line ArrayÕs grid for down tilt
- Rugged black powder coat finish
| Materials | Structural alloy steel shapes |
| Finish | Powder coat |
| Color | Black |
| Pan Angle | Up to +/- 45 degrees |
| Tilt Angle | Dependent on line array specifications |
| Working Load Limit | 500 lb./227 Kg |
| Design Factor | 5:1 |
| Product Weight | 72 lb / 32.7 Kg |
| Contents | 1 pc. Steerables Wall Mount Frame 1 pc. Cross Arm Kit |
The Steerables Line Array Wall Mount installs and aims line arrays on either side of a stage or building. ItÕs heavy black powdercoated steel framework assures safe installations and installs permanently. Line Arrays suspend from their own overhead rigging points, which allows for the desired tilt angle. Pan angles, up to 45 degrees left or right are achieved by way of an upper cross arm to aim the line array into the desired angle. An outdoor version, the SAS-500-WM-G, comes in a weather rated galvanized finish.
Features:
- Permanently supports small or mid-size line arrays
- Easy installation Ð goes up in minutes
- Provides up to 45 degrees of pan angle
- Utilizes the Line ArrayÕs grid for down tilt
- Rugged black powder coat finish
| Materials | Structural alloy steel shapes |
| Finish | Powder coat |
| Color | Black |
| Pan Angle | Up to +/- 45 degrees |
| Tilt Angle | Dependent on line array specifications |
| Working Load Limit | 500 lb./227 Kg |
| Design Factor | 5:1 |
| Product Weight | 72 lb / 32.7 Kg |
| Contents | 1 pc. Steerables Wall Mount Frame 1 pc. Cross Arm Kit |
