Adaptive Technologies SAS-GL - GridLink Series Rigging Beam Hinge Connector
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Use this corner connector for joining multiple GridLink rigging beams together to form overhead suspension grids. Depending upon the selected rigging beam size, assemble grids into a variety of shapes including square, rectangle, hexagon and triangles. The SAS-GL bolts securely inside rigging beams and becomes a load-rated rigging point. It also comes with an angle limiter that locks in a 90¡ and a 120¡ angle between two rigging beams. All hardware is included.
Features:
- Joins multiple GridLink rigging beams
- Comes with angle locking bar
- Provides load rated lifting point
| Materials | Structural Steel Alloy |
| Finish | Powder Coat |
| Color | Black |
| Working Load Limit | Meets or exceeds the working load of the specified GridLink Rigging Beams |
| Safety Factor | 5:1 |
| Product Weight | 5.6 lb / 2.5 Kg |

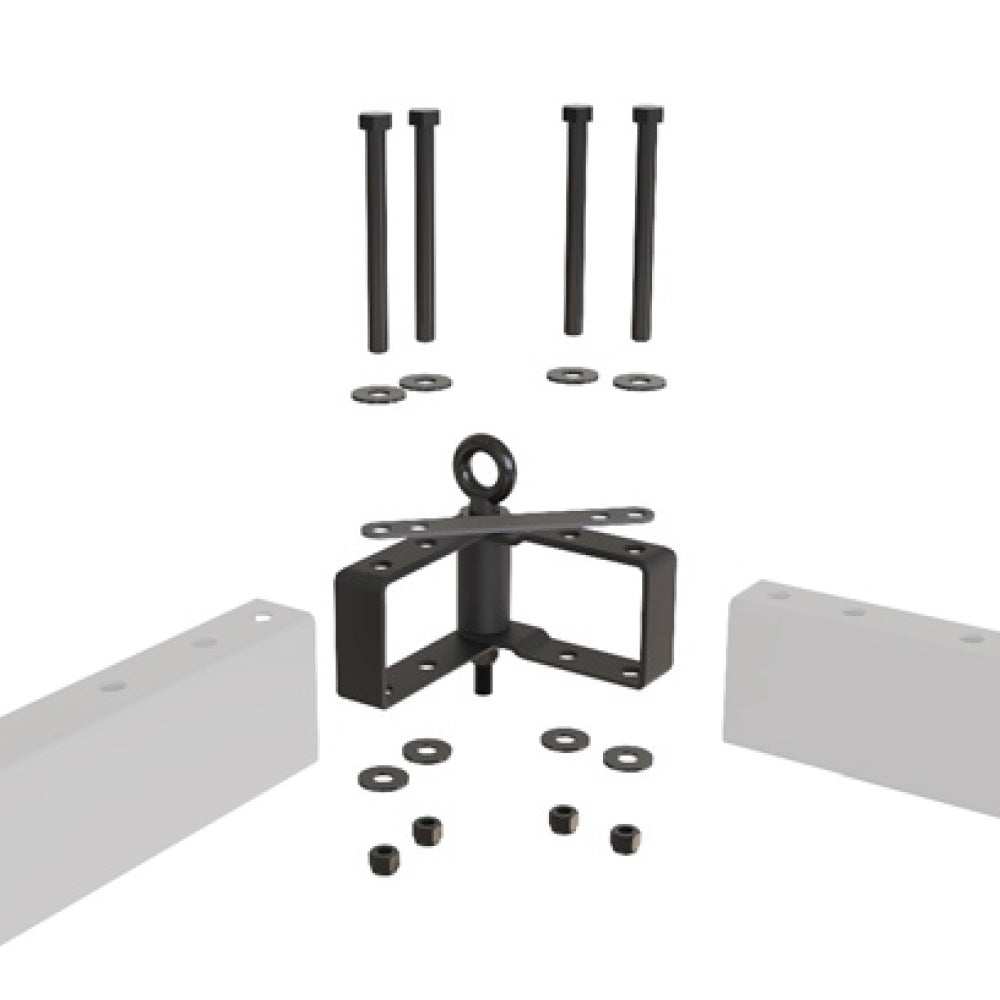

| Contents | 1pc Outer hinge bracket 1pc Inner hinge bracket 1pc 1/2î X 5.5î Eye Bolt 4pcs 1/2î X 5.5î Hex Bolt 5 pcs 1/2î Hex Nuts 10 pcs 1/2î Flat Washer |
Use this corner connector for joining multiple GridLink rigging beams together to form overhead suspension grids. Depending upon the selected rigging beam size, assemble grids into a variety of shapes including square, rectangle, hexagon and triangles. The SAS-GL bolts securely inside rigging beams and becomes a load-rated rigging point. It also comes with an angle limiter that locks in a 90¡ and a 120¡ angle between two rigging beams. All hardware is included.
Features:
- Joins multiple GridLink rigging beams
- Comes with angle locking bar
- Provides load rated lifting point
| Materials | Structural Steel Alloy |
| Finish | Powder Coat |
| Color | Black |
| Working Load Limit | Meets or exceeds the working load of the specified GridLink Rigging Beams |
| Safety Factor | 5:1 |
| Product Weight | 5.6 lb / 2.5 Kg |
| Contents | 1pc Outer hinge bracket 1pc Inner hinge bracket 1pc 1/2î X 5.5î Eye Bolt 4pcs 1/2î X 5.5î Hex Bolt 5 pcs 1/2î Hex Nuts 10 pcs 1/2î Flat Washer |
