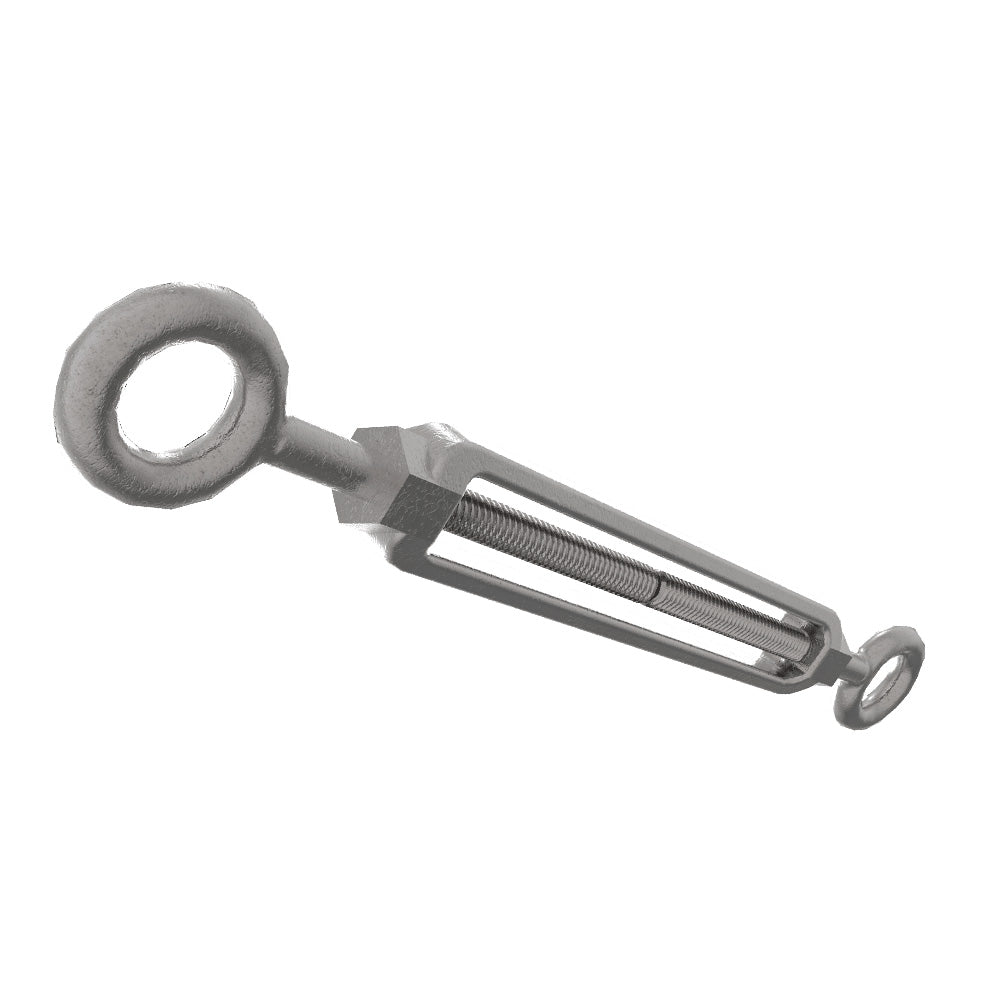

Adaptive Technologies TB-315 - Speaker Rigging Turnbuckle (5/16" x 4.5" / Eye To Eye)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
Turnbuckles serve as a load-rated tensioning and leveling device. For tensioning, one end always comes with a reversed thread so that when it is placed into service between two objects in its fully extended position, the housing may be rotated back to shorten the overall component, pulling the threaded arms in and putting additional tension into the system, such as between two anchored wire rope assemblies. Turnbuckles are also employed as leveling devices to bring overhead truss and grids into a level attitude. Its eye fittings accommodate shackles, quick links, etc.
Features:
- Outdoor rated - non marine
- Forged eyelets
- Up to 4.5Ò of adjustment
| Material | Forged Steel |
| Finish | Galvanized |
| Color | Silver |
| Working Load Limit | 800 lb / 364 Kg |
| Design Factor | 5:1 |
| Contents | 1 pc. Turnbuckle eye to eye |
Turnbuckles serve as a load-rated tensioning and leveling device. For tensioning, one end always comes with a reversed thread so that when it is placed into service between two objects in its fully extended position, the housing may be rotated back to shorten the overall component, pulling the threaded arms in and putting additional tension into the system, such as between two anchored wire rope assemblies. Turnbuckles are also employed as leveling devices to bring overhead truss and grids into a level attitude. Its eye fittings accommodate shackles, quick links, etc.
Features:
- Outdoor rated - non marine
- Forged eyelets
- Up to 4.5Ò of adjustment
| Material | Forged Steel |
| Finish | Galvanized |
| Color | Silver |
| Working Load Limit | 800 lb / 364 Kg |
| Design Factor | 5:1 |
| Contents | 1 pc. Turnbuckle eye to eye |
