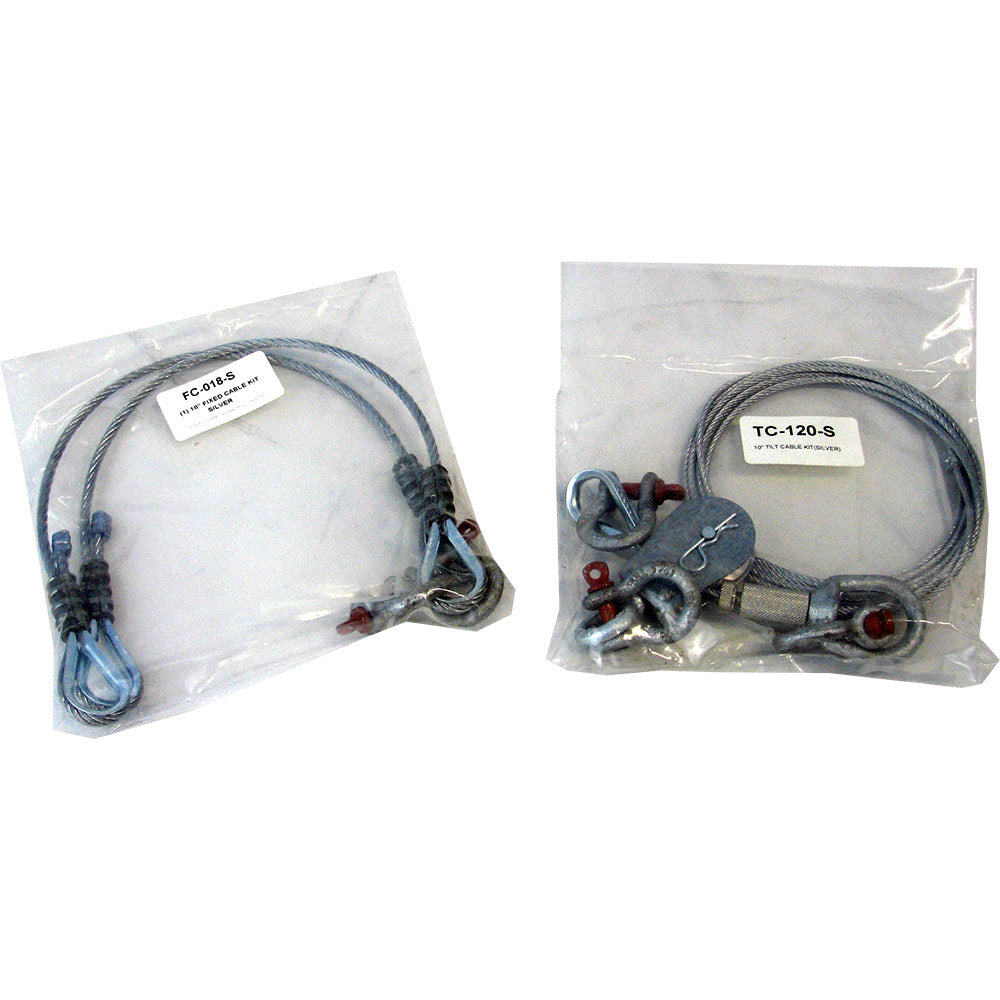

Adaptive Technologies TCK-018-S - Adjustable Tilt Rigging Cable Kit (18-Inch / Silver)
Availability:
In StockAvailable for shipment within one business day, or pickup from our Jamaica, NY warehouse during regular business hours.
Description
Steerables¨ Tilt Cable Kits are a general purpose, time saving and complete loudspeaker suspension and aiming solution. This versatile aircraft cable and pulley design allows installers to secure loudspeakers from an overhead grid structure or other suspension device, then quickly and precisely tilt them into position using the adjustable pull back feature. The Steerables¨ Tilt Cable Kit provides a simple method of suspending and aiming loudspeakers, offering unprecedented ease of installation and aiming. Loudspeakers and other objects can be suspended to the top of the cabinet to achieve just slight down tilt angles or be suspended from the back of the cabinet to achieve a steeper down tilt angle.
Features:
- Infinite tilt and locking adjustment
- Available in black or silver finish
- Standard and custom assemblies
- Close factory cable length tolerances
- Compatible with Steerables and GridLink
| Color | Silver |
| Design Factor | 10:1 ratio *Clutch lock design factor = 5:1 |
| Pack Count | 1 set/package |
| Fixed Cable Length | 18î Fixed cable kit |
| Working Load Limit | See Contents for lbs / Kg WLL |
| Packed Contents | 2 pcs 3/16î dia. Fixed cable 420/191 1 pc 1/8î dia. Pull back cable 200/91 5 pcs Anchor shackles 600/272 1 pc Clutch lock assembly 220/100 1 pc Pulley assembly 210/95 5 pc Cable tie wrap N/A |
Steerables¨ Tilt Cable Kits are a general purpose, time saving and complete loudspeaker suspension and aiming solution. This versatile aircraft cable and pulley design allows installers to secure loudspeakers from an overhead grid structure or other suspension device, then quickly and precisely tilt them into position using the adjustable pull back feature. The Steerables¨ Tilt Cable Kit provides a simple method of suspending and aiming loudspeakers, offering unprecedented ease of installation and aiming. Loudspeakers and other objects can be suspended to the top of the cabinet to achieve just slight down tilt angles or be suspended from the back of the cabinet to achieve a steeper down tilt angle.
Features:
- Infinite tilt and locking adjustment
- Available in black or silver finish
- Standard and custom assemblies
- Close factory cable length tolerances
- Compatible with Steerables and GridLink
| Color | Silver |
| Design Factor | 10:1 ratio *Clutch lock design factor = 5:1 |
| Pack Count | 1 set/package |
| Fixed Cable Length | 18î Fixed cable kit |
| Working Load Limit | See Contents for lbs / Kg WLL |
| Packed Contents | 2 pcs 3/16î dia. Fixed cable 420/191 1 pc 1/8î dia. Pull back cable 200/91 5 pcs Anchor shackles 600/272 1 pc Clutch lock assembly 220/100 1 pc Pulley assembly 210/95 5 pc Cable tie wrap N/A |
