Adaptive Technologies WM-0-15-60 - Rear Extendable Cinema Speaker Mount
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

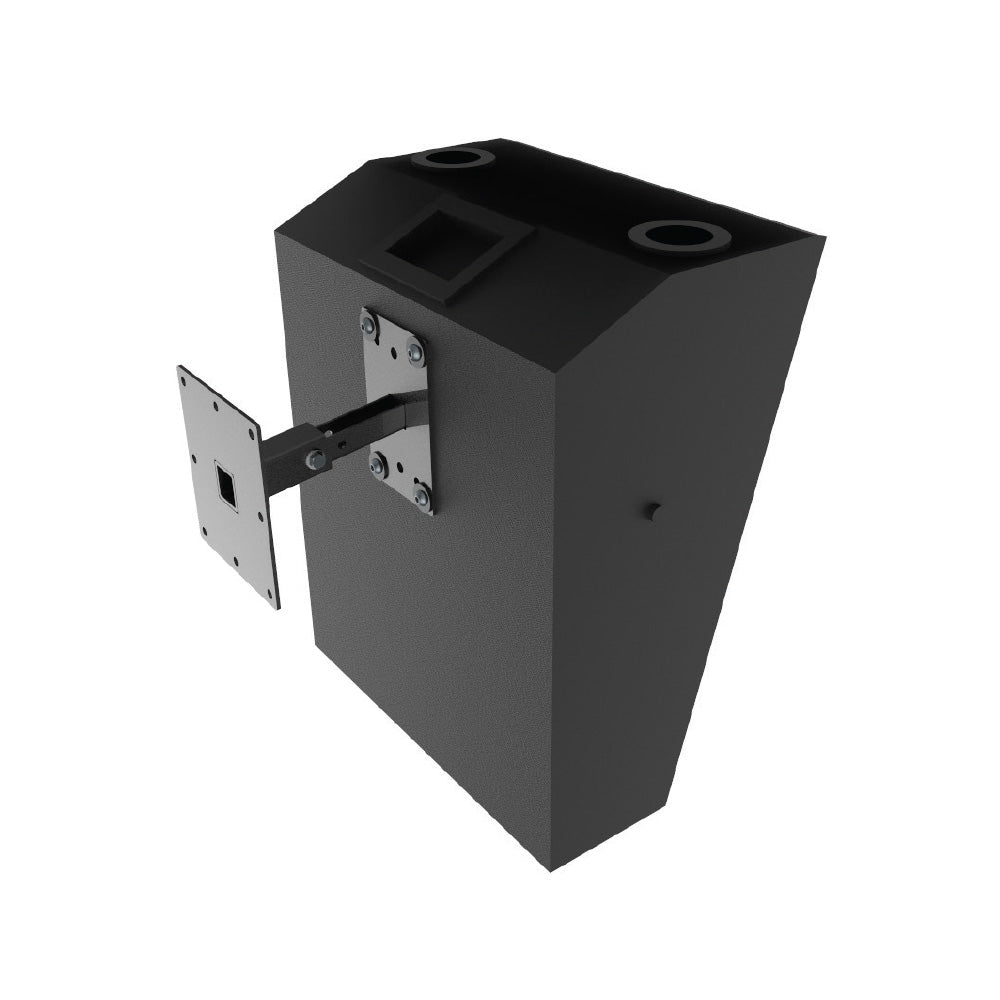

The WM-015-60 wall mount is an excellent choice for various wall mounting positions as well as 0¡ and 15¡ speaker tilt angles. The speakers are secured to standard loudspeaker mounting hole patterns, 5” x 2.75” and 4” x 2.25”, located on the rear of the speaker cabinets. The speaker tilt angle can be selected from either 0¡ or 15¡. For 0¡ the wall mount tube is facing up, for 15¡ the wall mount tube is facing down. This wall mount is equipped with a 3-position telescoping arm (5.06”, 6.05” and 7.05”). This same arm can be used to conduct the signal wire for a clean look.
Features:
- Infinite locking adjustments
- Single man speaker installations
- Optional safety cables available
- 40 or 15 Degree Down-Tilt
- Conforms to multiple mounting hole patterns including 2 x 4-1/4 and 2-3/4 x 5
| Material | Structural Steel Alloy |
| Finish | Powder Coat |
| Color | Black |
| Tilt Rotation | 15 degrees |
| Working Load Limit | 60 lbs. (27.2 Kg) max. |
| Design Factor | 7:1 ratio |
| Net wgt | 2.2 lbs. (1 Kg) each |
| Shipping wgt | 2.5 lbs. (1.13 Kg) each |
| Pack Count | 1 per carton |
| Package Contents | 1 pc: Wall mounting plate 1 pc: Speaker adapter assembly 1 pc: Hardware kit assembly 1 pc: Instruction sheet |
The WM-015-60 wall mount is an excellent choice for various wall mounting positions as well as 0¡ and 15¡ speaker tilt angles. The speakers are secured to standard loudspeaker mounting hole patterns, 5” x 2.75” and 4” x 2.25”, located on the rear of the speaker cabinets. The speaker tilt angle can be selected from either 0¡ or 15¡. For 0¡ the wall mount tube is facing up, for 15¡ the wall mount tube is facing down. This wall mount is equipped with a 3-position telescoping arm (5.06”, 6.05” and 7.05”). This same arm can be used to conduct the signal wire for a clean look.
Features:
- Infinite locking adjustments
- Single man speaker installations
- Optional safety cables available
- 40 or 15 Degree Down-Tilt
- Conforms to multiple mounting hole patterns including 2 x 4-1/4 and 2-3/4 x 5
| Material | Structural Steel Alloy |
| Finish | Powder Coat |
| Color | Black |
| Tilt Rotation | 15 degrees |
| Working Load Limit | 60 lbs. (27.2 Kg) max. |
| Design Factor | 7:1 ratio |
| Net wgt | 2.2 lbs. (1 Kg) each |
| Shipping wgt | 2.5 lbs. (1.13 Kg) each |
| Pack Count | 1 per carton |
| Package Contents | 1 pc: Wall mounting plate 1 pc: Speaker adapter assembly 1 pc: Hardware kit assembly 1 pc: Instruction sheet |
