Description

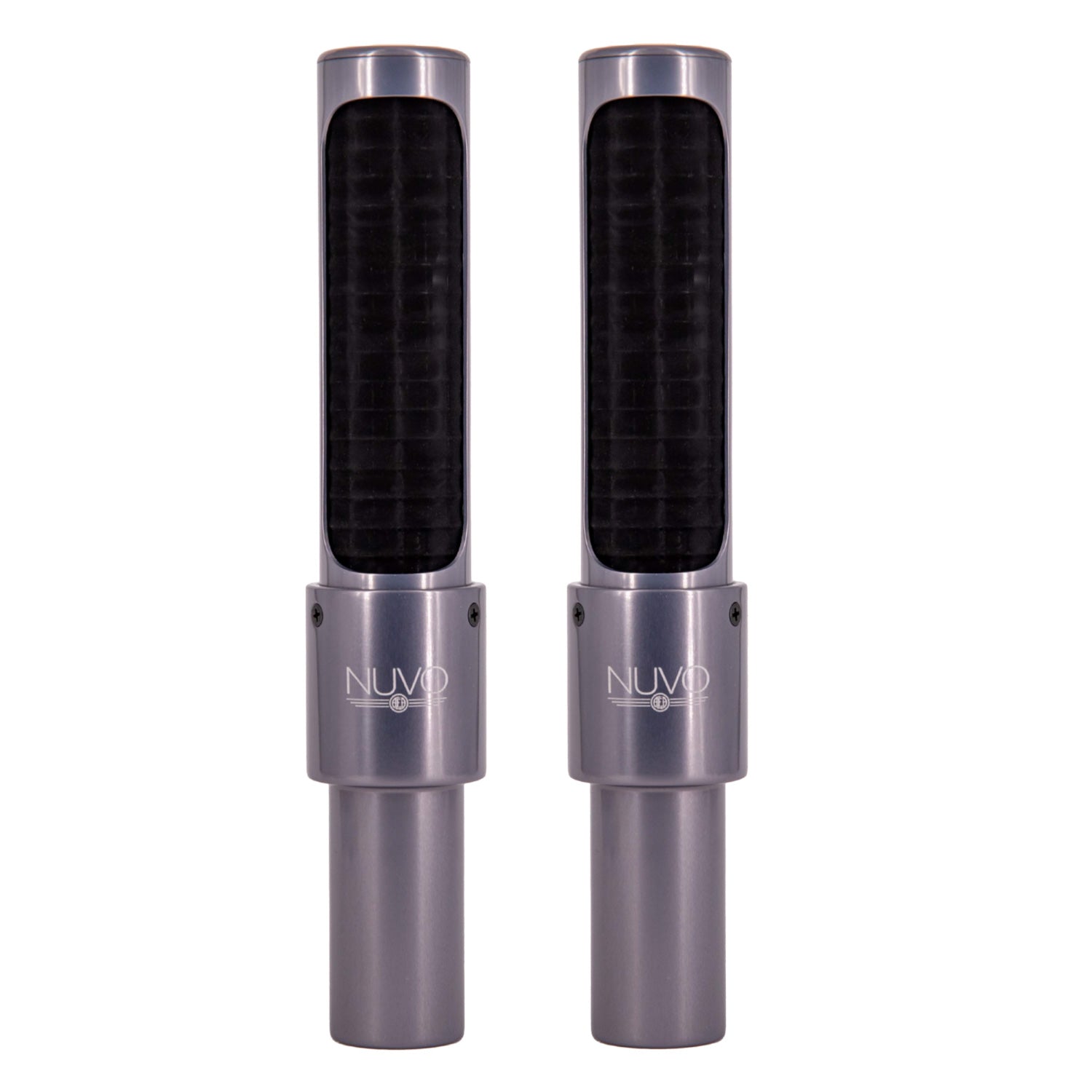

AEA's NUVO Series Stereo Kit enables serious musicians and engineers to rapidly set up and accurately record in stereo on a single stand. The NUVO Stereo Kit can fit two mics and comes with all of the accessories necessary to easily configure the figure-eight microphones in Blumlein and near-coincident.
The AEA N13 is designed to be natural and open at a mid-field distance, with a particularly strong ability to pick up fast transients. Relatively bright for a ribbon mic, the N13 microphone excels in capturing drum overheads, strings, acoustic guitars, and piano.
With phantom-powered JFET electronics and a custom German transformer, the N13 performs equally well with a wide range of preamps ranging from vintage high-end models to USB audio interfaces common in home studio setups. The full potential of the N13 is perhaps best realized when configured in the NUVO Stereo Kit, as it draws on the same successful sonic concepts as the AEA R88 stereo mic.
Features:
- AEA's first non-Big Ribbon™ bidirectional microphone
- Evenly balanced proximity effect at mid-field distances (~8"-36")
- 1.2 micron thick ribbon excels at capturing transients
- Low profile and slate gray finish for discreet placement
- Shines on horns, strings, acoustic guitar, and drum overheads
- Made in the U.S.A.
How is the N13 Different From the N8 and N22?
AEA's NUVO series microphones have long been user favorites for their clarity, portability, and higher-output active electronics. The near-field N22 delivers clarity and balance for close-up sources, while the far-field N8 excels at capturing the open, natural tonality of entire rooms and ensembles. The only missing piece? A stand-out mid-field companion.
Enter the N13, an equally sleek active ribbon designed with some distinctly different considerations in mind. At once open and natural, the N13 excels at medium-distance miking applications while demonstrating an impressive transient response. The N13 features a new motor design as well as a thinner, smaller ribbon (1.2 microns, rather than the standard 1.8), making it AEA's first non-Big Ribbon™ bidirectional mic.
Bright and sonically distinct from the N22 model, the N13 excels in capturing the subtle nuances of strings, acoustic guitars, and percussion. It's also well-suited for any sources that could use a boost in top-end clarity. Even when used up close, such as on horns or vocals, the N13 delivers exceptional clarity while also taking EQ extremely well.
Kit Includes:
- Heavy-duty SKB travel case
- SMS stereo bar
- Two NUVO Windscreens
- Posi-Lok Mic Hanger
- NUVO Blumlein coupler
- Mounting hardware
Operating Principle | Pressure gradient transducer |
Directional Pattern | Bidirectional |
Frequency Range | <20 Hz to>20 kHz |
Maximum SPL | 139 dB SPL (1% third harmonic> 1 kHz) |
Sensitivity | 11.48 mV/Pa (-3 . dBV) (at 1 kHz, no load) |
Output Impedance | 92 ½ broadband |
Rec Load Impedance | 1.0 k½ or greater |
Phantom Power | P48 phantom power, 7 mA |
Polarity | Pin-2 high for positive pressure at the front of the microphone |
Off-Axis Response | Horizontal: Up to 90 dB rejection at right angles to the front/back axis Vertical: Level changes with angle of incidence, but frequency response is consistent |
Transducer Element | Material: Pure aluminum corrugated ribbon Thickness: 1.2 µm Width: 0.113 in (2.87 mm) Length: 1.30 in (33.0 mm) |
Microphone Dimensions | Height: 8.83 in (22.5 cm) Width: 1.62 in (11.7 cm) Depth: 1.62 in (9.5 cm) Weight: 12 oz (335 g) |
Shipping Weight | 1 lb 13 oz (810 g) |
Connector | XLR-3M |
Accessories Included | Heavy-duty SKB travel case SMS stereo bar Two NUVO Windscreens Posi-Lok Mic Hanger NUVO Blumlein coupler Mounting hardware |
AEA's NUVO Series Stereo Kit enables serious musicians and engineers to rapidly set up and accurately record in stereo on a single stand. The NUVO Stereo Kit can fit two mics and comes with all of the accessories necessary to easily configure the figure-eight microphones in Blumlein and near-coincident.
The AEA N13 is designed to be natural and open at a mid-field distance, with a particularly strong ability to pick up fast transients. Relatively bright for a ribbon mic, the N13 microphone excels in capturing drum overheads, strings, acoustic guitars, and piano.
With phantom-powered JFET electronics and a custom German transformer, the N13 performs equally well with a wide range of preamps ranging from vintage high-end models to USB audio interfaces common in home studio setups. The full potential of the N13 is perhaps best realized when configured in the NUVO Stereo Kit, as it draws on the same successful sonic concepts as the AEA R88 stereo mic.
Features:
- AEA's first non-Big Ribbon™ bidirectional microphone
- Evenly balanced proximity effect at mid-field distances (~8"-36")
- 1.2 micron thick ribbon excels at capturing transients
- Low profile and slate gray finish for discreet placement
- Shines on horns, strings, acoustic guitar, and drum overheads
- Made in the U.S.A.
How is the N13 Different From the N8 and N22?
AEA's NUVO series microphones have long been user favorites for their clarity, portability, and higher-output active electronics. The near-field N22 delivers clarity and balance for close-up sources, while the far-field N8 excels at capturing the open, natural tonality of entire rooms and ensembles. The only missing piece? A stand-out mid-field companion.
Enter the N13, an equally sleek active ribbon designed with some distinctly different considerations in mind. At once open and natural, the N13 excels at medium-distance miking applications while demonstrating an impressive transient response. The N13 features a new motor design as well as a thinner, smaller ribbon (1.2 microns, rather than the standard 1.8), making it AEA's first non-Big Ribbon™ bidirectional mic.
Bright and sonically distinct from the N22 model, the N13 excels in capturing the subtle nuances of strings, acoustic guitars, and percussion. It's also well-suited for any sources that could use a boost in top-end clarity. Even when used up close, such as on horns or vocals, the N13 delivers exceptional clarity while also taking EQ extremely well.
Kit Includes:
- Heavy-duty SKB travel case
- SMS stereo bar
- Two NUVO Windscreens
- Posi-Lok Mic Hanger
- NUVO Blumlein coupler
- Mounting hardware
Operating Principle | Pressure gradient transducer |
Directional Pattern | Bidirectional |
Frequency Range | <20 Hz to>20 kHz |
Maximum SPL | 139 dB SPL (1% third harmonic> 1 kHz) |
Sensitivity | 11.48 mV/Pa (-3 . dBV) (at 1 kHz, no load) |
Output Impedance | 92 ½ broadband |
Rec Load Impedance | 1.0 k½ or greater |
Phantom Power | P48 phantom power, 7 mA |
Polarity | Pin-2 high for positive pressure at the front of the microphone |
Off-Axis Response | Horizontal: Up to 90 dB rejection at right angles to the front/back axis Vertical: Level changes with angle of incidence, but frequency response is consistent |
Transducer Element | Material: Pure aluminum corrugated ribbon Thickness: 1.2 µm Width: 0.113 in (2.87 mm) Length: 1.30 in (33.0 mm) |
Microphone Dimensions | Height: 8.83 in (22.5 cm) Width: 1.62 in (11.7 cm) Depth: 1.62 in (9.5 cm) Weight: 12 oz (335 g) |
Shipping Weight | 1 lb 13 oz (810 g) |
Connector | XLR-3M |
Accessories Included | Heavy-duty SKB travel case SMS stereo bar Two NUVO Windscreens Posi-Lok Mic Hanger NUVO Blumlein coupler Mounting hardware |
