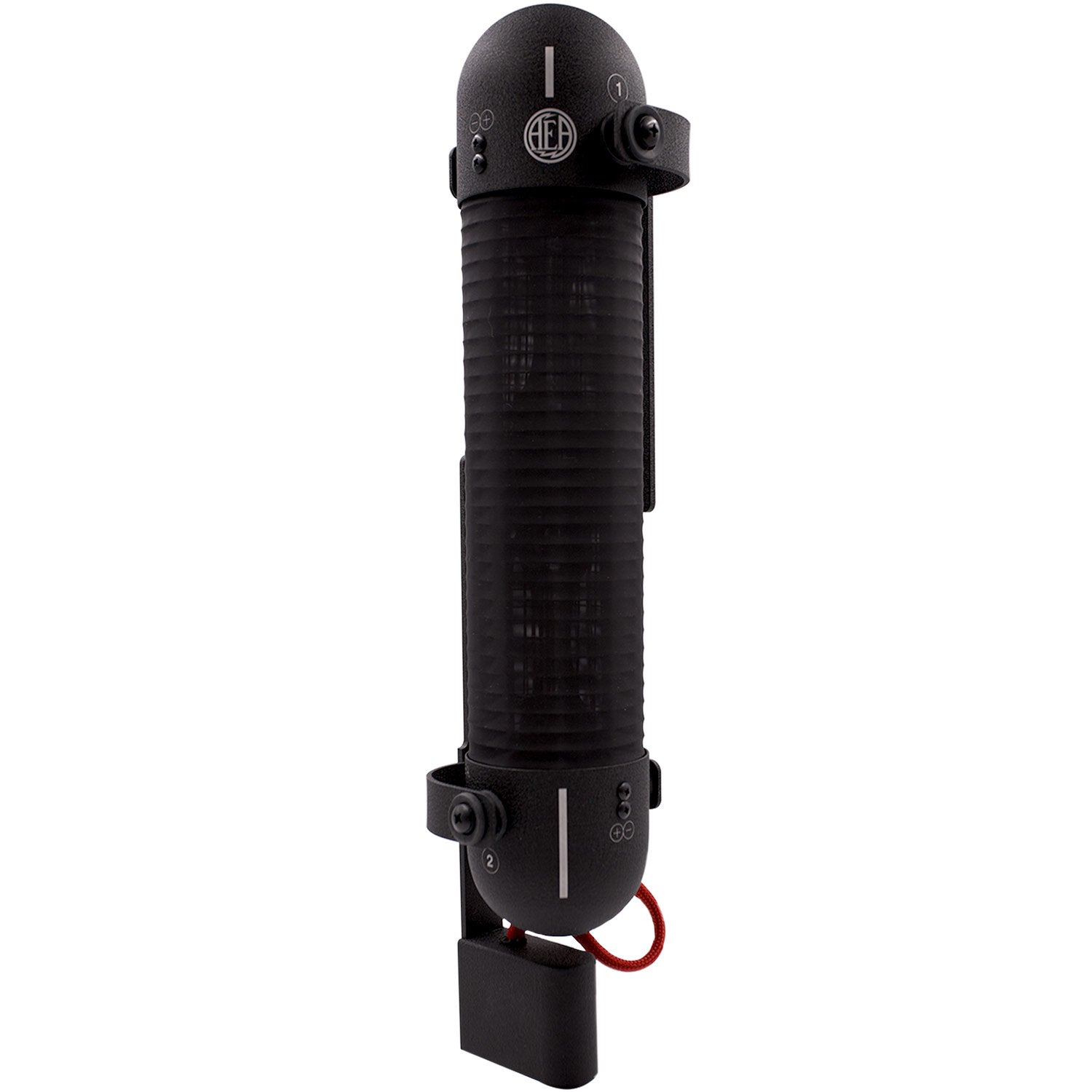

AEA R88A Active Ribbon Microphone
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
THE NEW STEREO R88A : MORE BANDWIDTH, LESS COLOR
The new stereo R88A active ribbon microphone with custom toroid transformers captures sound as your ears hear it with an honest, open tonality. The R88A effortlessly records the sonic intricacies of drums, strings, piano, and other instruments that produce complex transients.
Features:
- Same award-winning stereo perspective as the passive R88mk2
- Phantom powered (48V) version of AEA's classic R88mk2 with 12dB more transformer gain
- Compatible with any preamp and input impedance
- Fast, accurate transient reproduction
- Stereo ribbon microphone that offers a natural sound
- Captures amazingly precise stereo imagery with a single mic
- Larger-than-normal ribbon elements handle high SPLs with ease
- Figure-8, Blumlein Configuration (90 degrees) polar pattern
- 141dB Max SPL
The extra 12dB of transformer gain is advantageous when recording quiet sources like vocals or soft acoustic guitars. The active impedance buffers help prevent noise interference on long cable runs or when operating near large lighting rigs. The R88A requires standard 48V phantom power to operate.
| Operating Principle | Pressure gradient transducer |
| Directional Pattern | Bidirectional |
| Frequency Range | < 20 Hz to 20 kHz |
| Maximum SPL | 165 dB SPL (1% third harmonic> 1 kHz) |
| Sensitivity | 2.5 mV/Pa (-52 dBV) into unloaded circuit |
| Output Impedance | 270 ½ broadband |
| Load Impedance | 1.2 k½ or greater |
| Phantom power | Not required or recommended |
| Polarity | Pin 2 and 4 high for positive pressure at the front of the microphone. |
| Off Axis Response | Bidirectional |
| Horizontal | Level changes with angle, frequency re- sponse is consistent, -35dB null at 90¼ / 270¼ |
| Vertical | Level changes with angle, reduced HF response above and below 0¼ / 180¼, -25 dB null at 90¼ / 270¼ |
| Transducer Element | |
| Material | Pure aluminum corrugated ribbon |
| Thickness | 1.8 µm |
| Width | 0.185 in (4.7 mm) |
| Length | 2.35 in (59.7 mm) |
| Microphone Dimensions | |
| Width | 15 in (38.1 cm) |
| Depth | 3 in (7.62 cm) |
| Weight | 2 lb 9.8 oz (1.19 kg) |
| Shipping weight | 5 lb 3 oz (2.36 kg) |
| Connector | XLR-5M, includes breakout cable - 2 XLR-3M |
THE NEW STEREO R88A : MORE BANDWIDTH, LESS COLOR
The new stereo R88A active ribbon microphone with custom toroid transformers captures sound as your ears hear it with an honest, open tonality. The R88A effortlessly records the sonic intricacies of drums, strings, piano, and other instruments that produce complex transients.
Features:
- Same award-winning stereo perspective as the passive R88mk2
- Phantom powered (48V) version of AEA's classic R88mk2 with 12dB more transformer gain
- Compatible with any preamp and input impedance
- Fast, accurate transient reproduction
- Stereo ribbon microphone that offers a natural sound
- Captures amazingly precise stereo imagery with a single mic
- Larger-than-normal ribbon elements handle high SPLs with ease
- Figure-8, Blumlein Configuration (90 degrees) polar pattern
- 141dB Max SPL
The extra 12dB of transformer gain is advantageous when recording quiet sources like vocals or soft acoustic guitars. The active impedance buffers help prevent noise interference on long cable runs or when operating near large lighting rigs. The R88A requires standard 48V phantom power to operate.
| Operating Principle | Pressure gradient transducer |
| Directional Pattern | Bidirectional |
| Frequency Range | < 20 Hz to 20 kHz |
| Maximum SPL | 165 dB SPL (1% third harmonic> 1 kHz) |
| Sensitivity | 2.5 mV/Pa (-52 dBV) into unloaded circuit |
| Output Impedance | 270 ½ broadband |
| Load Impedance | 1.2 k½ or greater |
| Phantom power | Not required or recommended |
| Polarity | Pin 2 and 4 high for positive pressure at the front of the microphone. |
| Off Axis Response | Bidirectional |
| Horizontal | Level changes with angle, frequency re- sponse is consistent, -35dB null at 90¼ / 270¼ |
| Vertical | Level changes with angle, reduced HF response above and below 0¼ / 180¼, -25 dB null at 90¼ / 270¼ |
| Transducer Element | |
| Material | Pure aluminum corrugated ribbon |
| Thickness | 1.8 µm |
| Width | 0.185 in (4.7 mm) |
| Length | 2.35 in (59.7 mm) |
| Microphone Dimensions | |
| Width | 15 in (38.1 cm) |
| Depth | 3 in (7.62 cm) |
| Weight | 2 lb 9.8 oz (1.19 kg) |
| Shipping weight | 5 lb 3 oz (2.36 kg) |
| Connector | XLR-5M, includes breakout cable - 2 XLR-3M |
