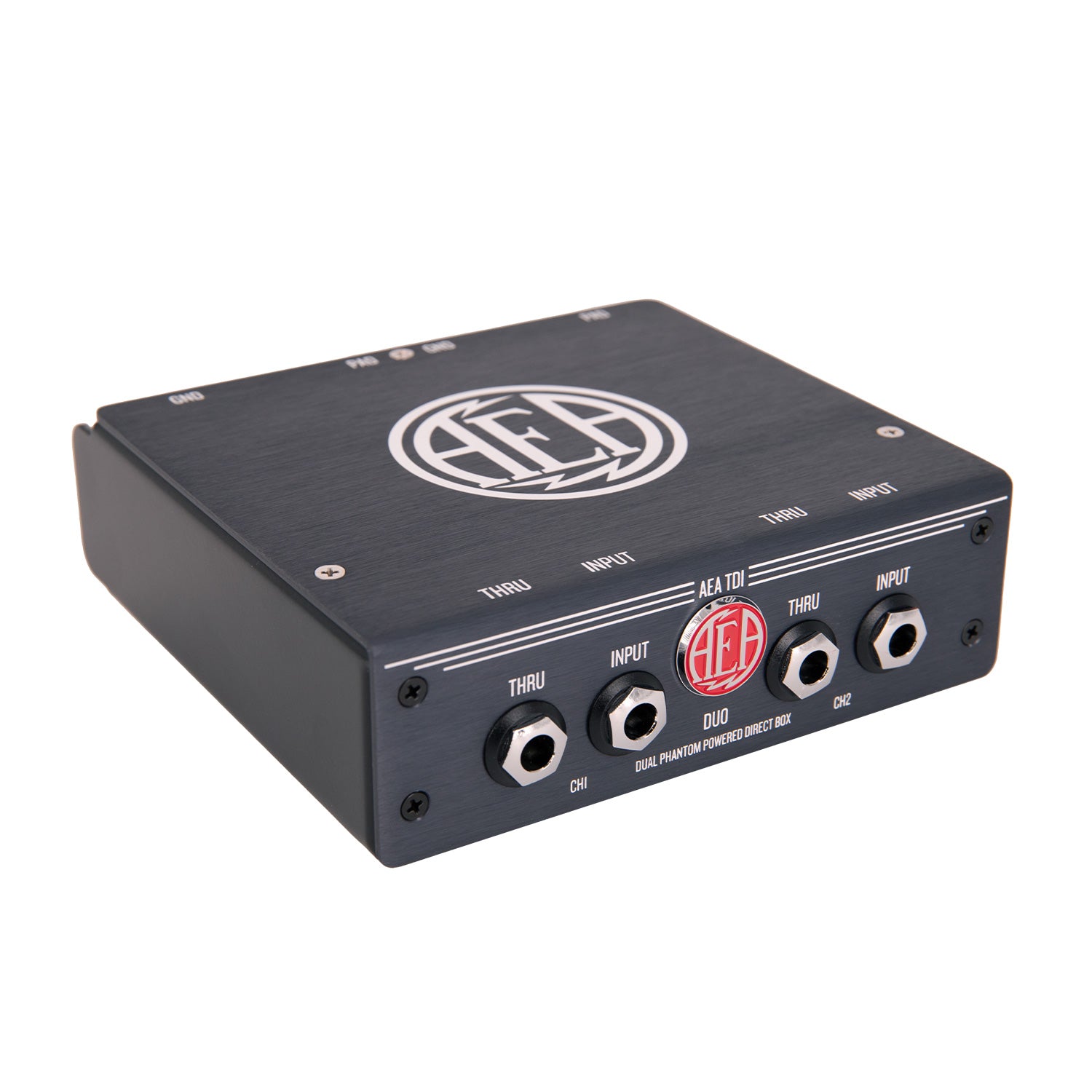

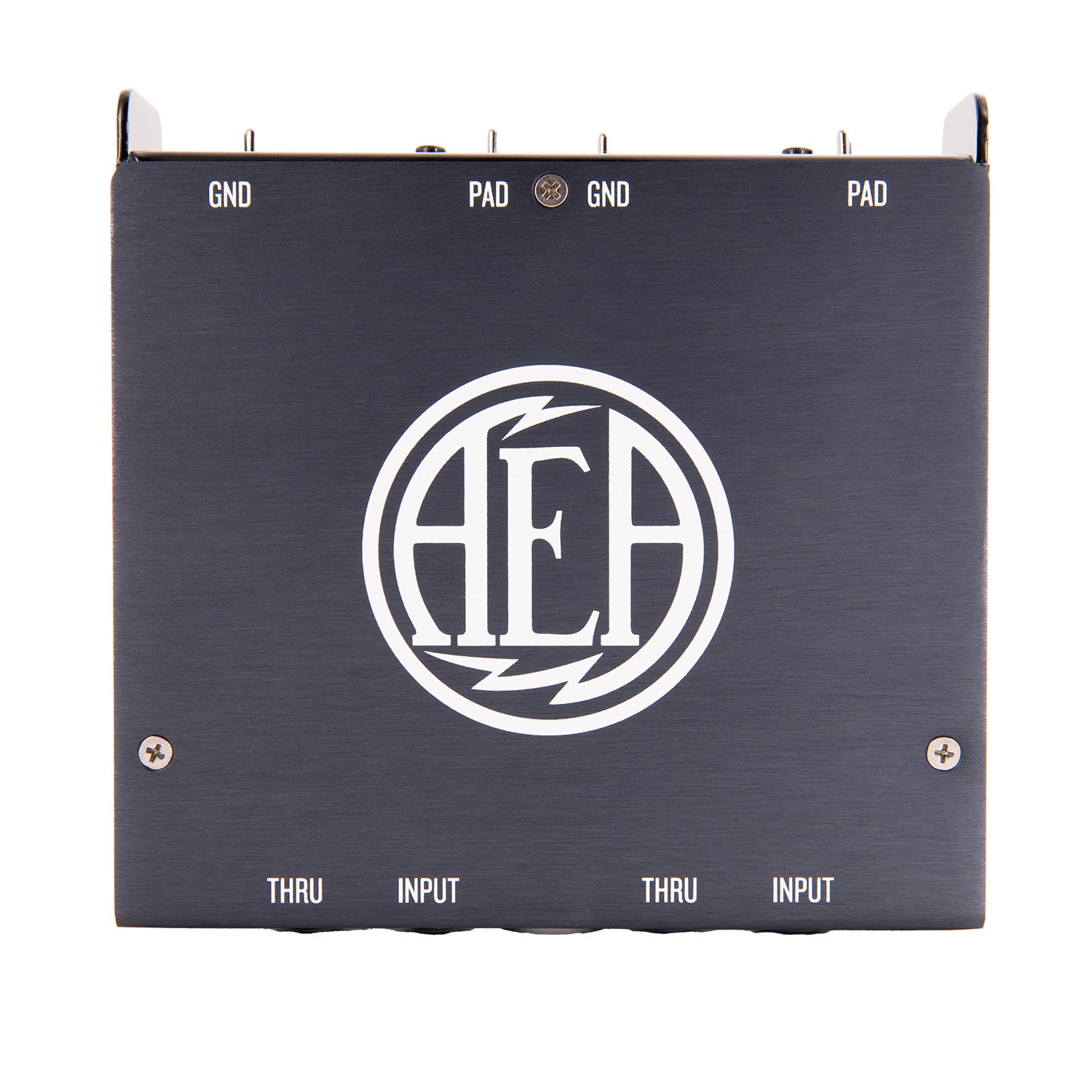

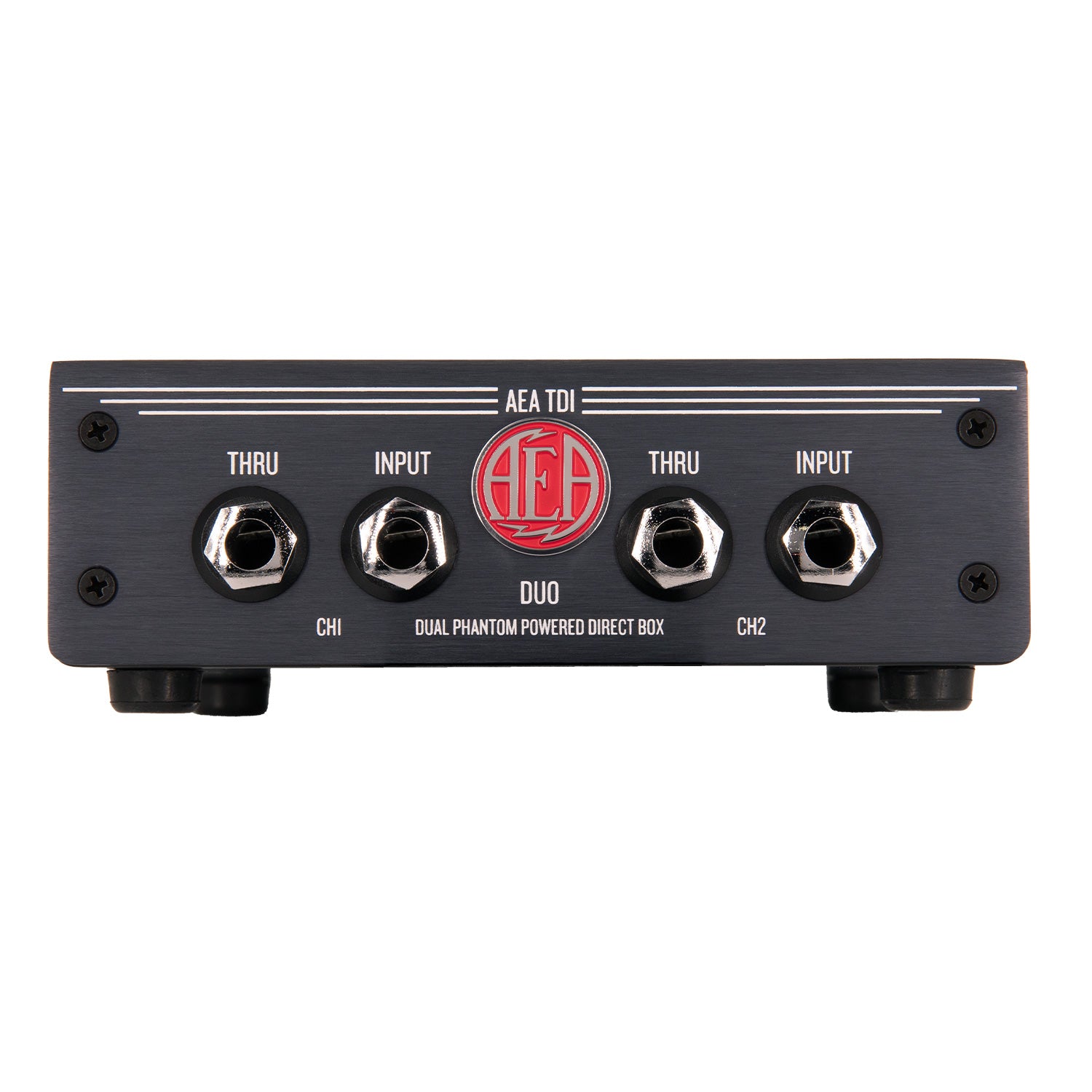

AEA TDI Duo - Dual-Channel Active Phantom Powered Direct Box
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
With a proprietary circuit design by Fred Forssell and a superclean Lehle step-down transformer, the ultra-transparent TDI Duo captures outstanding sonic performances with minimal distortion, noise interference or signal loss from long cable runs.
The Duo's active circuitry delivers top-grade sound quality while minimizing distortion and noise interference and maximizing your signal over long cable runs. A ground-lift switch eliminates any remaining hum or noise that can arise from grounding loops.
Though designed for instrument-level signals generated by passive pickups, the TDI Duo is also perfect for line-level signals from drum machines, samplers, and synths.
The TDI Duo is built to last with a rugged steel chassis, ideal for tours, stage backlines, and years of rigorous studio use. You can also mount three TDI Duos onto a standard 19-inch universal rack tray to create a six-channel 1U DI station.
Features:
- Phantom-powered Stereo DI box with active circuitry
- Ultra-low-noise JFET buffer drives exceptionally clean Lehle step-down transformer
- High-fidelity sound quality with mitigation of distortion and noise interference
- Enhances signal for long cable runs protecting against degradation
- Compact, road-ready design with rugged durability
- -20 dB pad for speaker-level signals and active instruments
- Made in the U.S.A.
| Noise Floor (22 Hz - 22 kHz, unweighted) | Better than -114 dBu |
| Frequency Response | -0.5 dB: <10 Hz - 50 kHz -3 dB: <10 Hz - 120 kHz |
| THD+N: (22 Hz - 22 kHz) | 1 kHz, 0 dBu input: 0.0020% |
| Input Impedance | Instrument: 10 M½ With Pad: 55 k½ |
| Balanced XLR Output Impedance | <50 ½ balanced output |
| Output level (pad out) | Input level -20 dB |
| Output level (pad in) | Input level -40 dB |
| Pad | -20 dB |
| Power Consumption | Phantom Power, +48VDC, less than 8 mA |
| Output XLR Polarity | Pin 2 high |
| Dimensions | 5.2" X 5.2" X 1.8" |
| Weight | 1lb 13oz (~820 g) |
With a proprietary circuit design by Fred Forssell and a superclean Lehle step-down transformer, the ultra-transparent TDI Duo captures outstanding sonic performances with minimal distortion, noise interference or signal loss from long cable runs.
The Duo's active circuitry delivers top-grade sound quality while minimizing distortion and noise interference and maximizing your signal over long cable runs. A ground-lift switch eliminates any remaining hum or noise that can arise from grounding loops.
Though designed for instrument-level signals generated by passive pickups, the TDI Duo is also perfect for line-level signals from drum machines, samplers, and synths.
The TDI Duo is built to last with a rugged steel chassis, ideal for tours, stage backlines, and years of rigorous studio use. You can also mount three TDI Duos onto a standard 19-inch universal rack tray to create a six-channel 1U DI station.
Features:
- Phantom-powered Stereo DI box with active circuitry
- Ultra-low-noise JFET buffer drives exceptionally clean Lehle step-down transformer
- High-fidelity sound quality with mitigation of distortion and noise interference
- Enhances signal for long cable runs protecting against degradation
- Compact, road-ready design with rugged durability
- -20 dB pad for speaker-level signals and active instruments
- Made in the U.S.A.
| Noise Floor (22 Hz - 22 kHz, unweighted) | Better than -114 dBu |
| Frequency Response | -0.5 dB: <10 Hz - 50 kHz -3 dB: <10 Hz - 120 kHz |
| THD+N: (22 Hz - 22 kHz) | 1 kHz, 0 dBu input: 0.0020% |
| Input Impedance | Instrument: 10 M½ With Pad: 55 k½ |
| Balanced XLR Output Impedance | <50 ½ balanced output |
| Output level (pad out) | Input level -20 dB |
| Output level (pad in) | Input level -40 dB |
| Pad | -20 dB |
| Power Consumption | Phantom Power, +48VDC, less than 8 mA |
| Output XLR Polarity | Pin 2 high |
| Dimensions | 5.2" X 5.2" X 1.8" |
| Weight | 1lb 13oz (~820 g) |
