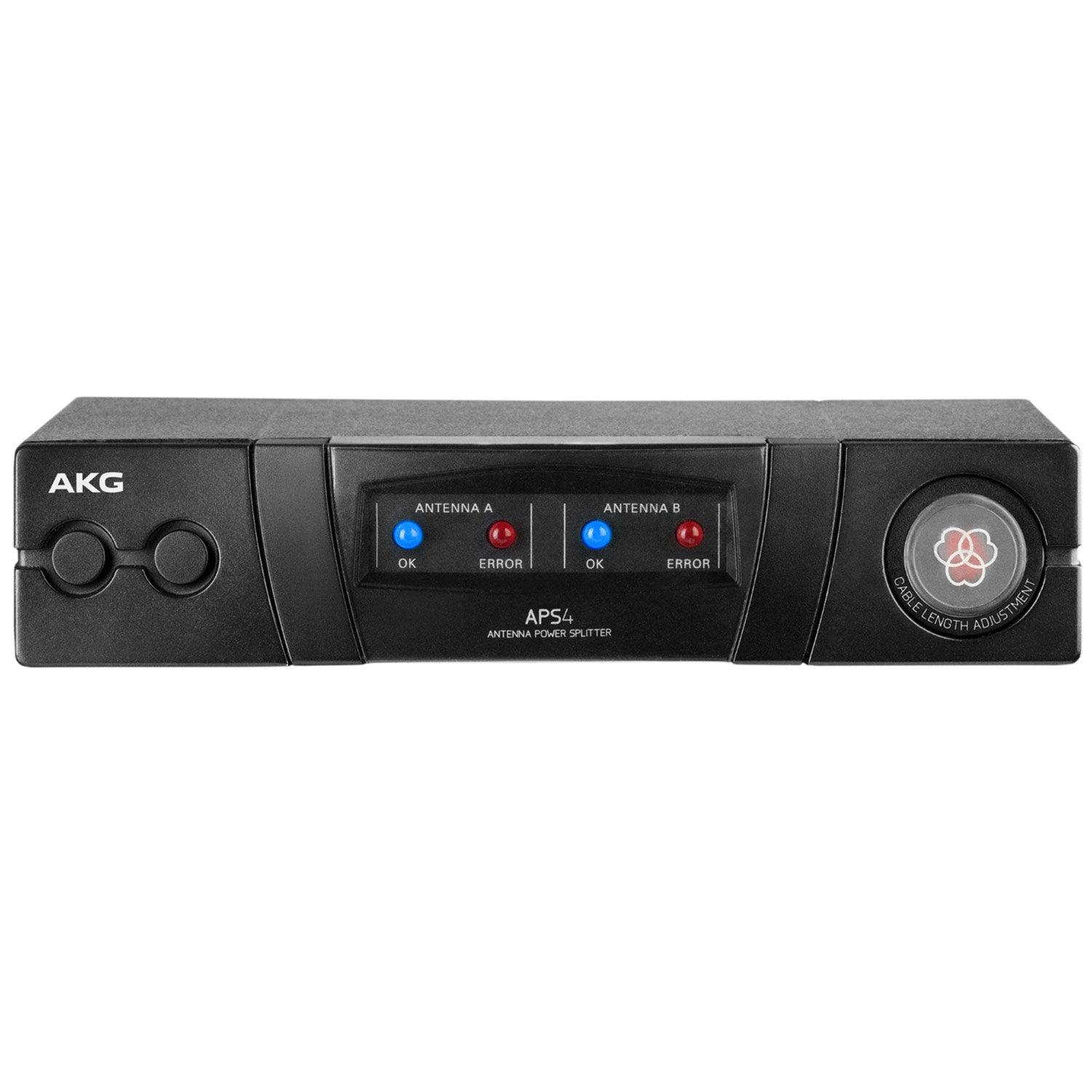

AKG APS4 Antenna Power Splitter (with PSU)

  • Dale #:

    AKG-3296H00050
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The APS4 is a wide-band UHF active Antenna and Power Splitter that can feed up to 4 receivers with the RF signal coming from one pair of antennas and also supplies power to all connected receivers via BNC cables. The splitter operates in an extended frequency range of 470 to 952 MHz. Adjustable R... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The APS4 is a wide-band UHF active Antenna and Power Splitter that can feed up to 4 receivers with the RF signal coming from one pair of antennas and also supplies power to all connected receivers via BNC cables. The splitter operates in an extended frequency range of 470 to 952 MHz. Adjustable RF-level attenuation settings guarantee maximum operating distance even when using different cable lengths and different types of cables. The APS4 comes in a rugged half-rack metal housing and works with all active and passive AKG antennas available on the market (RA4000 B/W, RA4000 W, SRA2 B/W and SRA2 W). The product is shipped with a rack mount kit (RMU4000), two front mount antenna cables and ten BNC cables (MKPS) for an immediate system setup.

The APS4 sets are available in four different power supply variants: EU, US, U.K. or none included. Two rear panel antenna inputs provide a 10 VDC supply voltage for powering up to three active elements per antenna path. E.g. one active antenna (RA4000 B/W or SRA2 B/W) and two AB4000 antenna boosters connected to one RF input. Also located on the rear panel are two sets of four BNC antenna output connectors for feeding up to four diversity receivers and two additional antenna outputs for cascading up to three further APS4 devices.

Features:

  • Operates in an extended frequency range (470 to 952 MHz) for maximum flexibility
  • Cable length adjustment switch for optimizing antenna signal levels
  • Link output to cascade up to three APS4 for larger systems
  • Remote power for antennas and receivers to eliminate any extra installation effort
  • All in one box: Rack mount kit and cables included

More +

Product Specs

Switching bandwidth (from/to) 470 to 952 MHz
Operating temperature range -10 to 50 Celsius
Dimensions Length 190 mm
Heigh t44 mm
Width 200 mm
Net Weight 1062 g
Body metal
Finish black
What's In The Box

1 x APS4 Antenna power splitter

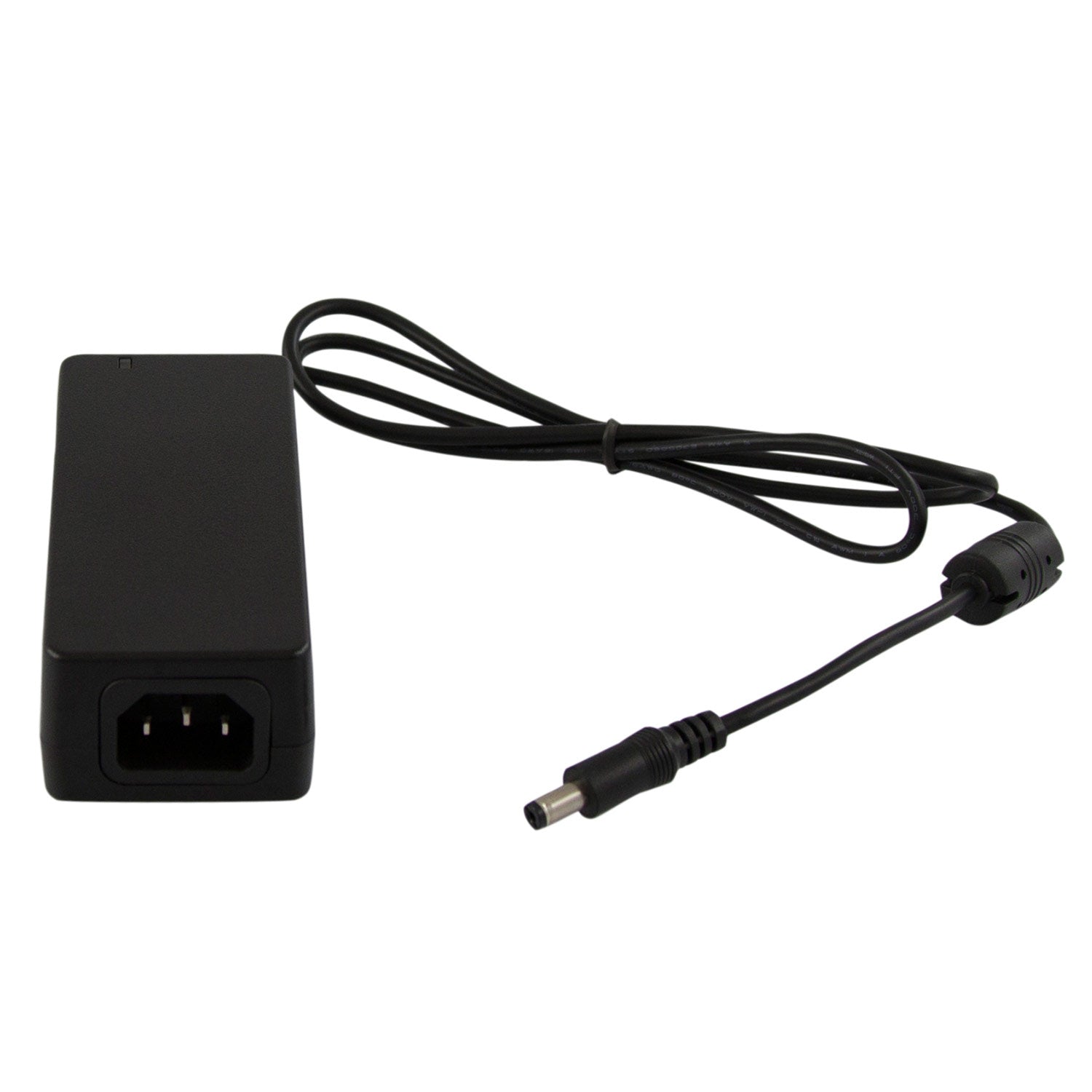

1 x US/EU/UK/AU Power adapter
10 x MK PS Antenna cable
1 x RMU4000 Rack mount kit
2 x Single front mount cable

More +
