AKG CK31 Cardioid Capsule for GN or HM Series Gooseneck Microphones


  • Dale #:

    AKG-2765H00200
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock, but we can usually ship it within 10-20 days after your order is placed. Your payment will be charged after completing checkout.

Description

The CK31 is a high-performance condenser capsule with a wide cardioid polar pattern, especially designed for inexperienced speakers and applications where more than one person uses the microphone in turn. The CK31 capsule is integrated in a rugged metal housing and fits any mounting module of the... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

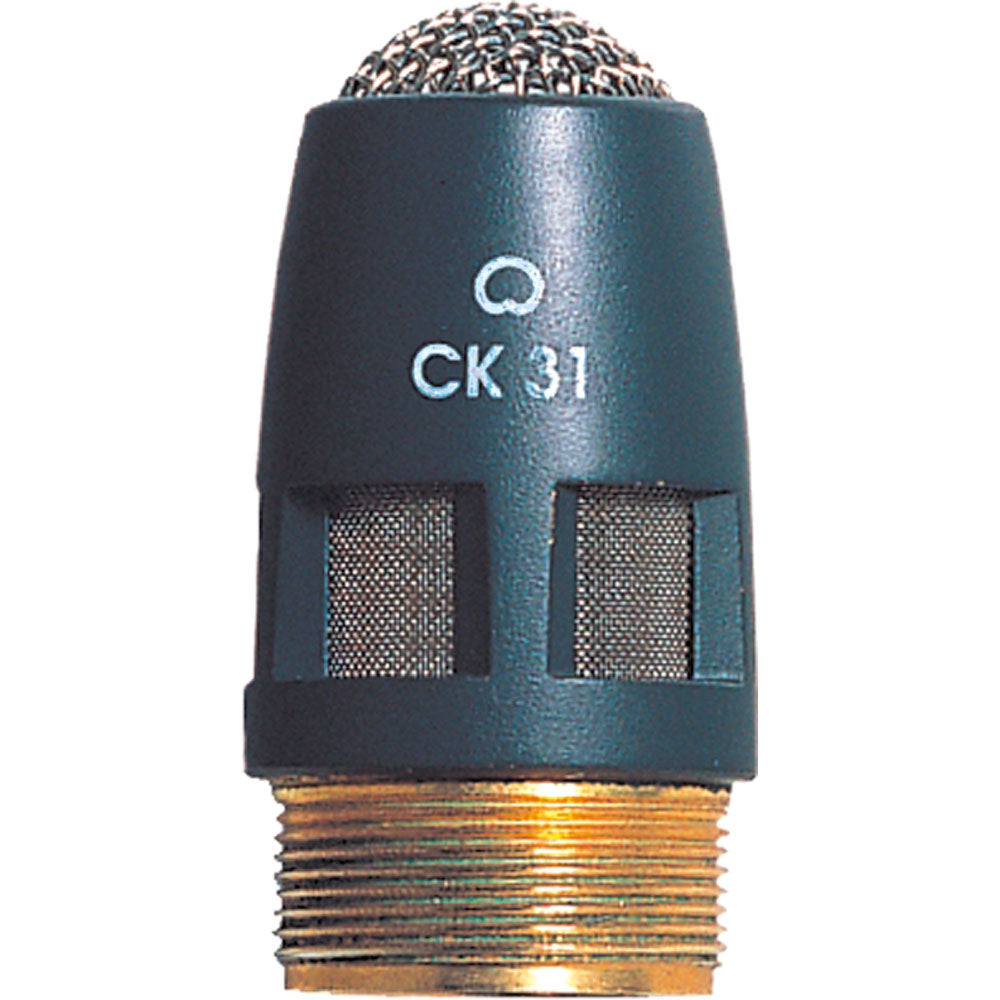

The CK31 is a high-performance condenser capsule with a wide cardioid polar pattern, especially designed for inexperienced speakers and applications where more than one person uses the microphone in turn. The CK31 capsule is integrated in a rugged metal housing and fits any mounting module of the DAM Series. To prevent contact problems, the capsule is equipped with large-area, self-cleaning, gold-plated contacts with deep threads to prevent misalignment and ensure extra-long life. The package includes a special two-part windscreen, which efficiently reduces wind and pop noise.

Features

  • Cardioid polar pattern
  • 125° pickup angle
  • Highly reliable capsule contacts
  • Highly efficient two-in-one windscreen
  • Wide frequency range

More +

Product Specs

GENERAL
Audio Frequency bandwidth50 to 20000 Hz
Sensitivity20 mV/Pa
Max SPL125 db SPL
Equivalent Noise Level21 dB-A
Signal to Noise73 dB-A
Electrical Impedance600 Ohms
Recommended Load Impedance2000 Ohms
POLAR PATTERNS
Polar Patterncardioid
POWERING INTERFACE
Voltage9 to 52 V
Current3 mA
AUDIO OUTPUT
TypeModular Series
GenderMale
Contacts2-pin
DESIGN
Finishmatte dark gray
DIMENSIONS / WEIGHT
Net Weight5 g
Height20 mm
Diameter13.5 mm
