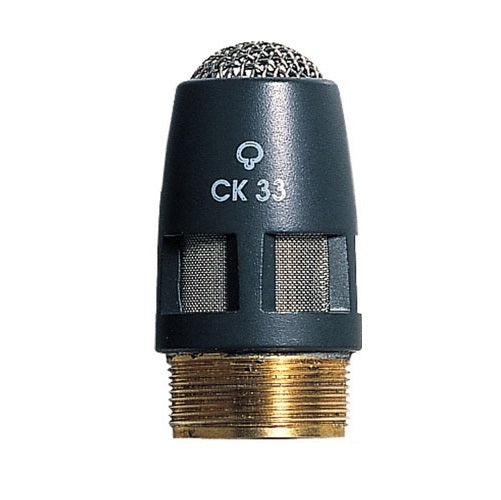

AKG CK33 90 Degree Hypercardioid Microphone Capsule for Discreet Acoustics Modular System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The Discreet Acoustics Modular-Series is a new modular back electret microphone system. It comprises five capsule modules and six installation modules (five gooseneck and one hanging module) which can be used in any combination. The modules screw together for extremely stable and reliable connections. Applications include speech reinforcement and recording in places of worship, conference centers, at panel discussions, etc.
Features- Hypercardioid pickup patternWide frequency rangeScrew on capsuleGold plated contactsHigh performance windscreen
| Transducer Principle | Condenser prepolarized |
| Frequency Range | 50-20,000 Hz |
| Polar Pattern | Hypercardioid |
| Sensitivity at 1kHz | 20 mV/Pa = -37 dBV |
| Equivalent Noise Level | <21 dB-A |
| Sound Pressure Level for 1% THD | 125 dB |
| S/N Ratio (A-weighted) | >73dB |
| Impedance | <600 ohms |
| Power Requirement | 9 to 52 volts phantom power, requires DPA adapter |
| Finish | Dark gray matte |
| Size (dia. x L) | 0.5 x 0.8 |
The Discreet Acoustics Modular-Series is a new modular back electret microphone system. It comprises five capsule modules and six installation modules (five gooseneck and one hanging module) which can be used in any combination. The modules screw together for extremely stable and reliable connections. Applications include speech reinforcement and recording in places of worship, conference centers, at panel discussions, etc.
Features- Hypercardioid pickup patternWide frequency rangeScrew on capsuleGold plated contactsHigh performance windscreen
| Transducer Principle | Condenser prepolarized |
| Frequency Range | 50-20,000 Hz |
| Polar Pattern | Hypercardioid |
| Sensitivity at 1kHz | 20 mV/Pa = -37 dBV |
| Equivalent Noise Level | <21 dB-A |
| Sound Pressure Level for 1% THD | 125 dB |
| S/N Ratio (A-weighted) | >73dB |
| Impedance | <600 ohms |
| Power Requirement | 9 to 52 volts phantom power, requires DPA adapter |
| Finish | Dark gray matte |
| Size (dia. x L) | 0.5 x 0.8 |
