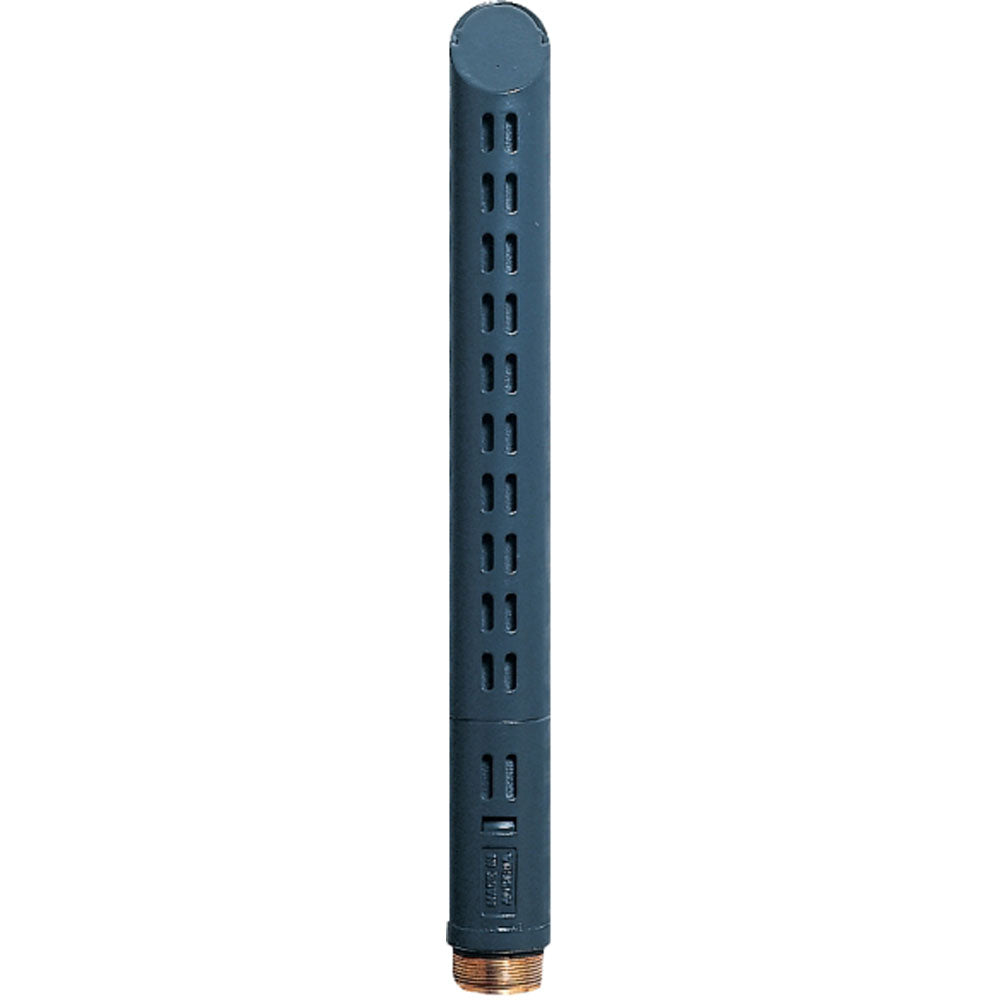

AKG CK80 Hypercardioid Capsule for GN or HM Series Gooseneck Microphones


  • Dale #:

    AKG-2765Z00240
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

The CK80 high-performance shotgun capsule provides an 80° pickup angle and offers a speech-optimized frequency response. It offers an unbeatable price/performance ratio and good speech intelligibility in acoustically critical applications. The CK80 capsule fits any mounting module of the DAM Seri... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

The CK80 high-performance shotgun capsule provides an 80° pickup angle and offers a speech-optimized frequency response. It offers an unbeatable price/performance ratio and good speech intelligibility in acoustically critical applications. The CK80 capsule fits any mounting module of the DAM Series. To prevent contact problems, the capsule is equipped with large-area, self-cleaning, gold-plated contacts with deep threads to prevent misalignment and ensure extra-long life. The CK80 comes complete with a professional windscreen that reduces wind and pop noise.

Features

  • Tight, hypercardioid polar pattern
  • Speech-optimized frequency response
  • Highly reliable contacts for capsule modules

More +

Product Specs

GENERAL
Audio Frequency bandwidth60 to 15000 Hz
Sensitivity30 mV/Pa
Max SPL125 db SPL
Equivalent Noise Level17 dB-A
Signal to Noise77 dB-A
Electrical Impedance600 Ohms
Recommended Load Impedance2000 Ohms
POLAR PATTERNS
Polar Patternhypercardioid
POWERING INTERFACE
Voltage9 to 52 V
Current3 mA
AUDIO OUTPUT
TypeModular Series Standard
GenderMale
Contacts2-pin
DESIGN
Finishmatte dark gray
DIMENSIONS / WEIGHT
Net Weight15 g
Height146 mm
Diameter13.5 mm
