DALE SKU # AKG-3332H00010

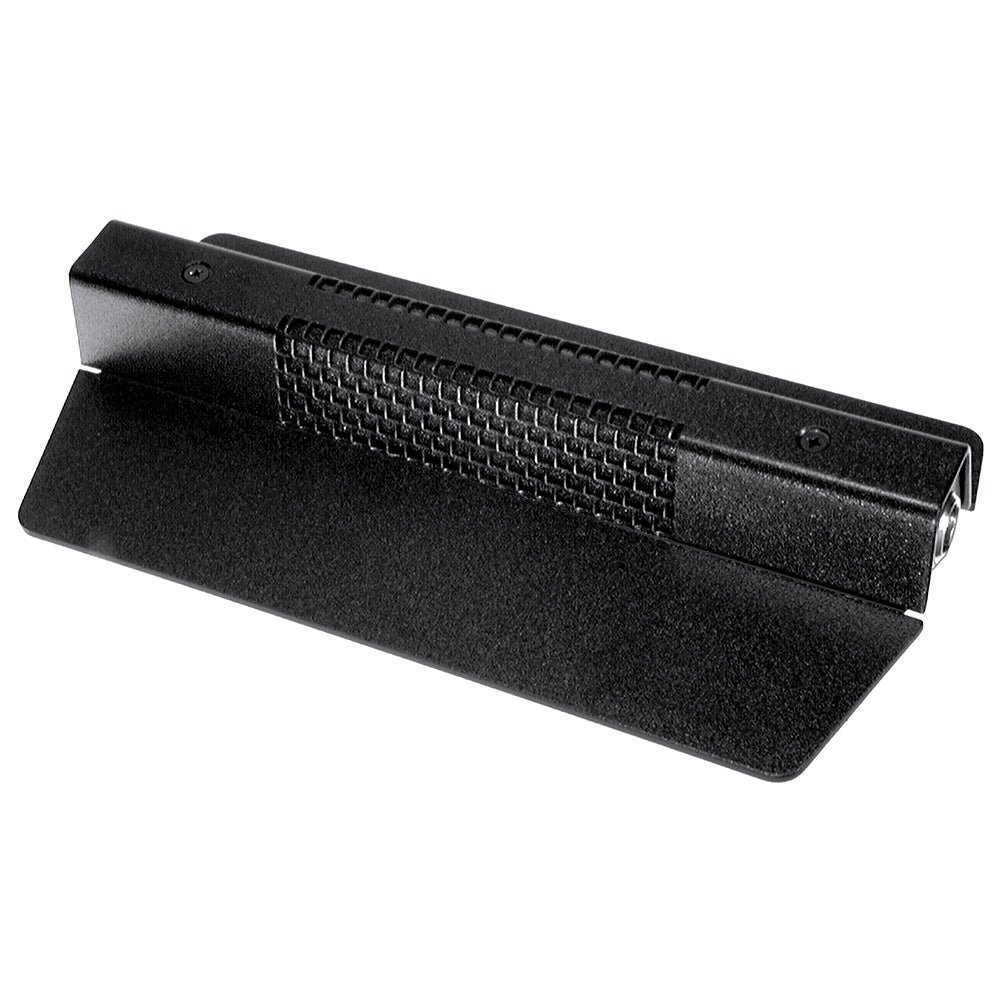

AKG / Crown PCC160 Professional Boundary Layer Microphone

Sale price$505.00
  • Availability:

    Special Order Item
  • This item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.


  • LET OUR TEAM OF EXPERTS ASSIST YOU

    Description

    The PCC160 is a professional boundary layer microphone and an industry standard stage floor microphone. It´s capable of withstanding up to 120dB SPL without distortion. A bass-tilt switch allows the user to tailor the low-end response for particular applications. PCC® (Phase Coherent Cardioid®) technology uses diaphragms so small that any phase cancellations are above the audible range. This results in a wide, smooth frequency response free of phase interference. The PCC160 uses a supercardioid polar pattern that improves gain before feedback and reduces unwanted room noise from the rear.

    Features:

    • Supercardioid polar pattern for impressive gain before feedback
    • PCC® (Phase Coherent Cardioid®) technology for a wide, smooth frequency response
    • Three-position bass-tilt switch for optimized body noise suppression
    • Extremely low profile for inconspicuous placement on the stage floor
    • Finely crafted, rugged housing to withstand the rigors of the stage
    General
    Audio Frequency bandwidth 50 to 18000 Hz
    Sensitivity 22 mV/Pa
    Equivalent Noise Level 22 dB-A
    Signal to Noise 72 dB-A
    Recommended Load Impedance 2000 Ohms
    Powering Interface
    Voltage 12 to 48 V
    Audio Output
    Type Switchcraft TA3F
    Contacts 3-pin
    Design
    Finish black
    Dimensions / Weight
    Length 170 mm
    Width 80 mm
    Height 20 mm

    The PCC160 is a professional boundary layer microphone and an industry standard stage floor microphone. It´s capable of withstanding up to 120dB SPL without distortion. A bass-tilt switch allows the user to tailor the low-end response for particular applications. PCC® (Phase Coherent Cardioid®) technology uses diaphragms so small that any phase cancellations are above the audible range. This results in a wide, smooth frequency response free of phase interference. The PCC160 uses a supercardioid polar pattern that improves gain before feedback and reduces unwanted room noise from the rear.

    Features:

    • Supercardioid polar pattern for impressive gain before feedback
    • PCC® (Phase Coherent Cardioid®) technology for a wide, smooth frequency response
    • Three-position bass-tilt switch for optimized body noise suppression
    • Extremely low profile for inconspicuous placement on the stage floor
    • Finely crafted, rugged housing to withstand the rigors of the stage
    General
    Audio Frequency bandwidth 50 to 18000 Hz
    Sensitivity 22 mV/Pa
    Equivalent Noise Level 22 dB-A
    Signal to Noise 72 dB-A
    Recommended Load Impedance 2000 Ohms
    Powering Interface
    Voltage 12 to 48 V
    Audio Output
    Type Switchcraft TA3F
    Contacts 3-pin
    Design
    Finish black
    Dimensions / Weight
    Length 170 mm
    Width 80 mm
    Height 20 mm
