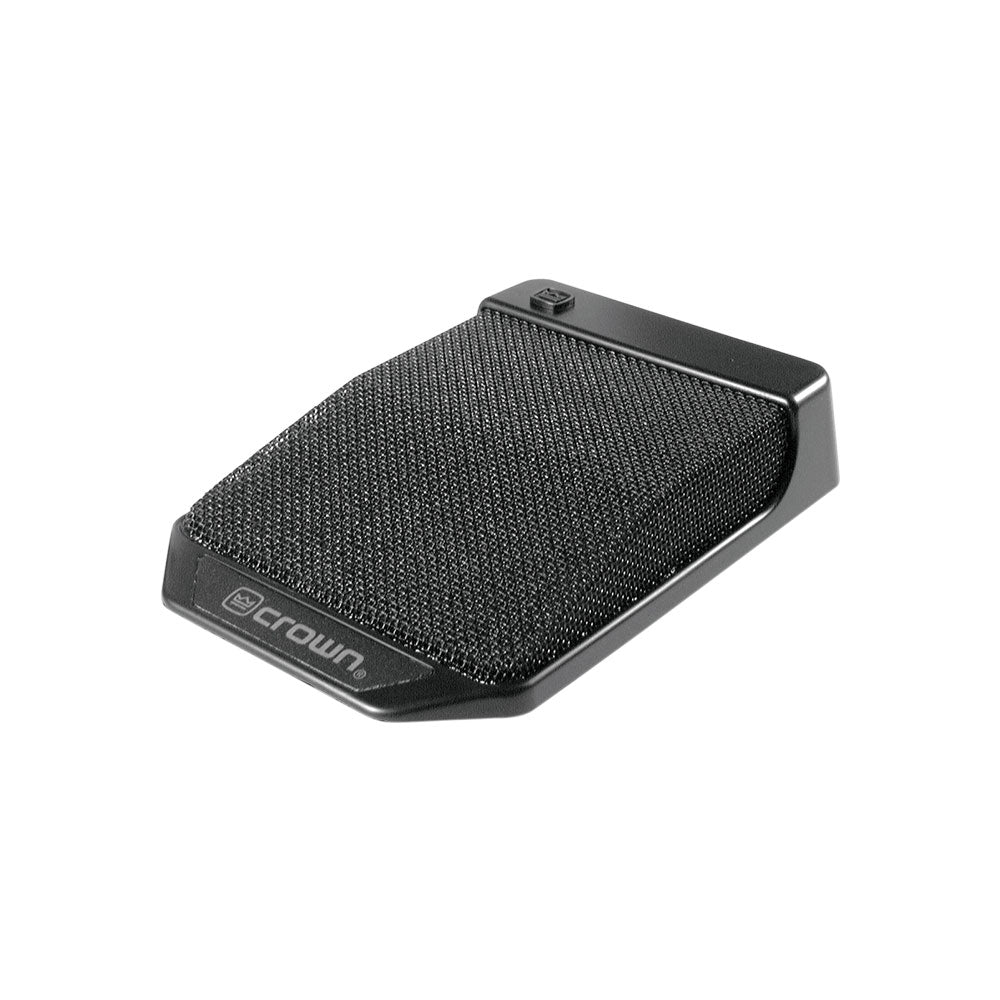

AKG / Crown PCC170 SW Supercardioid Boundary Microphone with On/Off Switch
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The PCC®-170SW is a surface mounted supercardioid microphone of professional quality. This handsomely styled unit is appropriate for use on the most elegant boardroom table or lectern. Other applications include churches, courtrooms and council chambers. Because of its highly directional pickup pattern, the PCC®-170 SW minimizes background noise and feedback. The microphone reproduces the voice with a clean, clear and natural sound.
The PCC®-170SW has a silent-operating membrane switch which is normally off. The switch can be configured for touch on/off, momentary on or momentary off operation. This configuration is set by a bottom-mounted DIP switch. A high-intensity LED lights when the unit is on. The PCC®- 170SW is intended for multiple microphone use on a conference table where each person wants control of his or her microphone. The microphone attenuates 70 dB when the switch is in the off position.
Since the microphone capsule is placed on a boundary or surface, direct and reflected sounds arrive at the diaphragm in-phase. This coherent addition of direct and reflected waves increases sensitivity 6 dB and prevents phase cancellations. The mic capsule is small enough to ensure phase coherency up to the highest frequencies in the audible spectrum, resulting in a wide, smooth frequency response free of phase interference. Clarity and reach are also enhanced.
Self-contained electronics eliminate the need for an in-line preamp. Powered by 12-48 V phantom power, the PCC®-170SW has a low-impedance balanced output which permits long cable runs without hum pickup or high-frequency loss. Self-noise is low and sensitivity is very high and an RFI suppression is included. A bass-tilt switch allows the user to tailor the low-end response for particular applications.
Features:
- Supercardioid polar pattern offers high-gain-before-feedback
- Phase coherent cardioid® design prevents coloration from surface sound reflections
- Silent operating programmable on/off membrane switch
- LED in the microphone housing will light when the mic is on
- Small and inconspicuous
| Type | Phase Coherent Cardioid¨ |
| Element | Electret condenser |
| Frequency response (typical) | 50 Hz to 20,000 Hz at 30 degrees incidence to surface |
| Polar pattern | Half-supercardioid (supercardioid in the hemisphere above the primary boundary) |
| Impedance | 150 ohms, balanced (recommended load impedance 1000 ohms or greater) |
| Open circuit sensitivity (typical) | 22 mV/Pa* (Ð33 dB re 1 volt/Pa) |
| Power sensitivity | Ð30.5 dB re 1 mW/Pa*. EIA rating Ð125 dBm |
| Equivalent noise level (self-noise) | 22 dB SPL typi- cal (0 dB = 0.0002 dyne/cm2), A-weighted |
| S/N ratio | 72 dB at 94 dB SPL. |
| Maximum SPL | 120 dB SPL produces 3% THD. Off Attenuation: 70 dB at 1 kHz |
| Turn-on time | 250 msec |
| Turn-off time | 125 msec |
| Polarity | Positive pressure on the diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Operating voltage | Phantom power, 12 to 48 volts DC on pins 2 and 3 with respect to pin 1 |
| Current drain | 6 mA nominal |
| Connector | Switchcraft TB3M |
| Cable | 15-foot, black, two-conductor shielded cable with Switchcraft TA3F and A3M connectors |
| Materials | High-impact molded plastic and steel mesh grille |
| Finish | Black |
| Net weight | 6 oz. |
| Optional accessories | Crown PH-1A phantom power supply (single channel, battery or AC adapter powered) |
The PCC®-170SW is a surface mounted supercardioid microphone of professional quality. This handsomely styled unit is appropriate for use on the most elegant boardroom table or lectern. Other applications include churches, courtrooms and council chambers. Because of its highly directional pickup pattern, the PCC®-170 SW minimizes background noise and feedback. The microphone reproduces the voice with a clean, clear and natural sound.
The PCC®-170SW has a silent-operating membrane switch which is normally off. The switch can be configured for touch on/off, momentary on or momentary off operation. This configuration is set by a bottom-mounted DIP switch. A high-intensity LED lights when the unit is on. The PCC®- 170SW is intended for multiple microphone use on a conference table where each person wants control of his or her microphone. The microphone attenuates 70 dB when the switch is in the off position.
Since the microphone capsule is placed on a boundary or surface, direct and reflected sounds arrive at the diaphragm in-phase. This coherent addition of direct and reflected waves increases sensitivity 6 dB and prevents phase cancellations. The mic capsule is small enough to ensure phase coherency up to the highest frequencies in the audible spectrum, resulting in a wide, smooth frequency response free of phase interference. Clarity and reach are also enhanced.
Self-contained electronics eliminate the need for an in-line preamp. Powered by 12-48 V phantom power, the PCC®-170SW has a low-impedance balanced output which permits long cable runs without hum pickup or high-frequency loss. Self-noise is low and sensitivity is very high and an RFI suppression is included. A bass-tilt switch allows the user to tailor the low-end response for particular applications.
Features:
- Supercardioid polar pattern offers high-gain-before-feedback
- Phase coherent cardioid® design prevents coloration from surface sound reflections
- Silent operating programmable on/off membrane switch
- LED in the microphone housing will light when the mic is on
- Small and inconspicuous
| Type | Phase Coherent Cardioid¨ |
| Element | Electret condenser |
| Frequency response (typical) | 50 Hz to 20,000 Hz at 30 degrees incidence to surface |
| Polar pattern | Half-supercardioid (supercardioid in the hemisphere above the primary boundary) |
| Impedance | 150 ohms, balanced (recommended load impedance 1000 ohms or greater) |
| Open circuit sensitivity (typical) | 22 mV/Pa* (Ð33 dB re 1 volt/Pa) |
| Power sensitivity | Ð30.5 dB re 1 mW/Pa*. EIA rating Ð125 dBm |
| Equivalent noise level (self-noise) | 22 dB SPL typi- cal (0 dB = 0.0002 dyne/cm2), A-weighted |
| S/N ratio | 72 dB at 94 dB SPL. |
| Maximum SPL | 120 dB SPL produces 3% THD. Off Attenuation: 70 dB at 1 kHz |
| Turn-on time | 250 msec |
| Turn-off time | 125 msec |
| Polarity | Positive pressure on the diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Operating voltage | Phantom power, 12 to 48 volts DC on pins 2 and 3 with respect to pin 1 |
| Current drain | 6 mA nominal |
| Connector | Switchcraft TB3M |
| Cable | 15-foot, black, two-conductor shielded cable with Switchcraft TA3F and A3M connectors |
| Materials | High-impact molded plastic and steel mesh grille |
| Finish | Black |
| Net weight | 6 oz. |
| Optional accessories | Crown PH-1A phantom power supply (single channel, battery or AC adapter powered) |
