AKG CSX BIR10 - 10-Channel Infrared Control Unit and Breakout Box for CSX-IRS10 System
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description

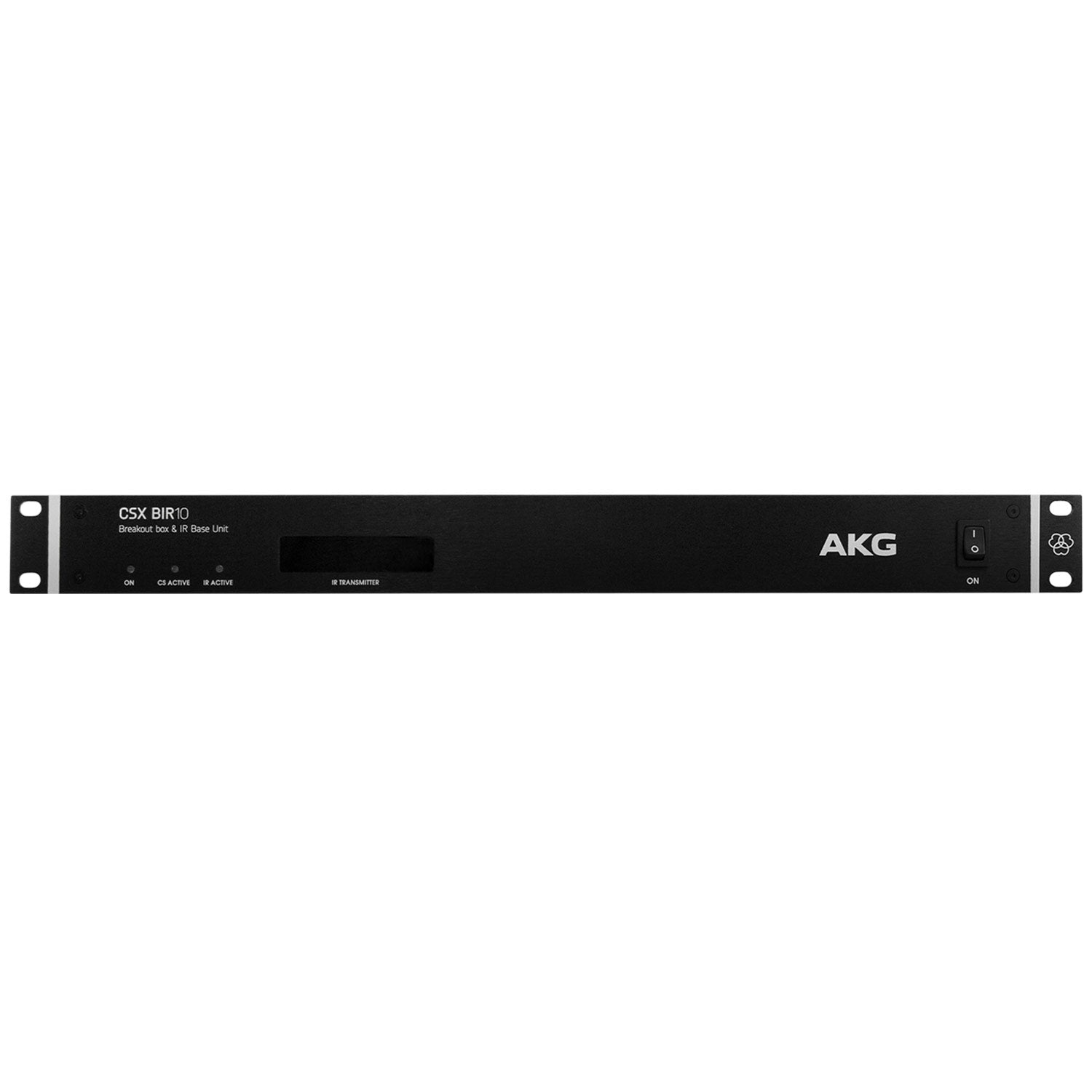

The CSX BIR10 is the infrared central control unit for the CSX IRS10 infrared language distribution system, the core element that provides the utmost security for wireless translation systems.
The system is designed to operate in two modes, both feeding up to 10 channels. First, the CSX BIR10 can be used as part of AKG´s CS5 system. In this mode the unit acts as infrared modulator and/or as breakout box to provide channels of the CS5 data ring to external devices via RCA connectors on the back panel. Second, as a stand alone IR system, to feed external devices (e.g. a wireless system) These signals cannot NOT be fed into a CS5 data ring.
It is also possible to mix inputs – take a few external sources and a few from the CS5 data ring. 4 BNC connectors are used for 4 strings of radiators that can be daisy chained. Four IR LED´s provide the infrared signal in the technician room to enable the technician to control what is transmitted in the venue hall. The CSX BIR10 is easily expandable to handle virtually any size room.
Features:
-
Digital transmission with PPM technology
Effective audio and radiation quality control and easy to install -
For CS5 or standalone system
Works with all kinds of analogue inputs -
Unlimited expansion of radiators
For any room size
| Number of languages | 10 |
| Dimensions | Width 482 mm Height 44 mm Depth 108 mm |
| Net Weight | 1450 g |
| Body | metal |
| Finish | matte black |
The CSX BIR10 is the infrared central control unit for the CSX IRS10 infrared language distribution system, the core element that provides the utmost security for wireless translation systems.
The system is designed to operate in two modes, both feeding up to 10 channels. First, the CSX BIR10 can be used as part of AKG´s CS5 system. In this mode the unit acts as infrared modulator and/or as breakout box to provide channels of the CS5 data ring to external devices via RCA connectors on the back panel. Second, as a stand alone IR system, to feed external devices (e.g. a wireless system) These signals cannot NOT be fed into a CS5 data ring.
It is also possible to mix inputs – take a few external sources and a few from the CS5 data ring. 4 BNC connectors are used for 4 strings of radiators that can be daisy chained. Four IR LED´s provide the infrared signal in the technician room to enable the technician to control what is transmitted in the venue hall. The CSX BIR10 is easily expandable to handle virtually any size room.
Features:
-
Digital transmission with PPM technology
Effective audio and radiation quality control and easy to install -
For CS5 or standalone system
Works with all kinds of analogue inputs -
Unlimited expansion of radiators
For any room size
| Number of languages | 10 |
| Dimensions | Width 482 mm Height 44 mm Depth 108 mm |
| Net Weight | 1450 g |
| Body | metal |
| Finish | matte black |
