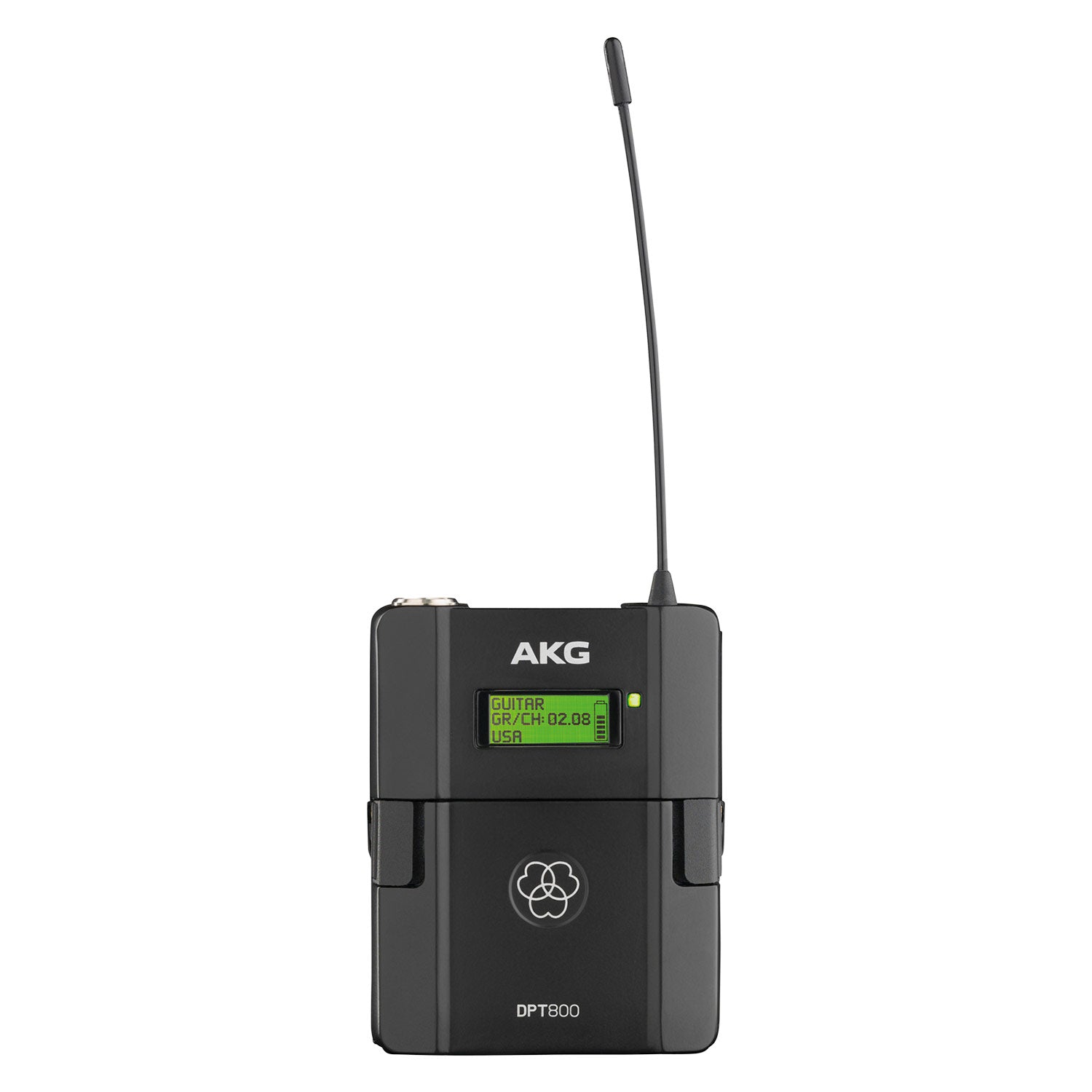

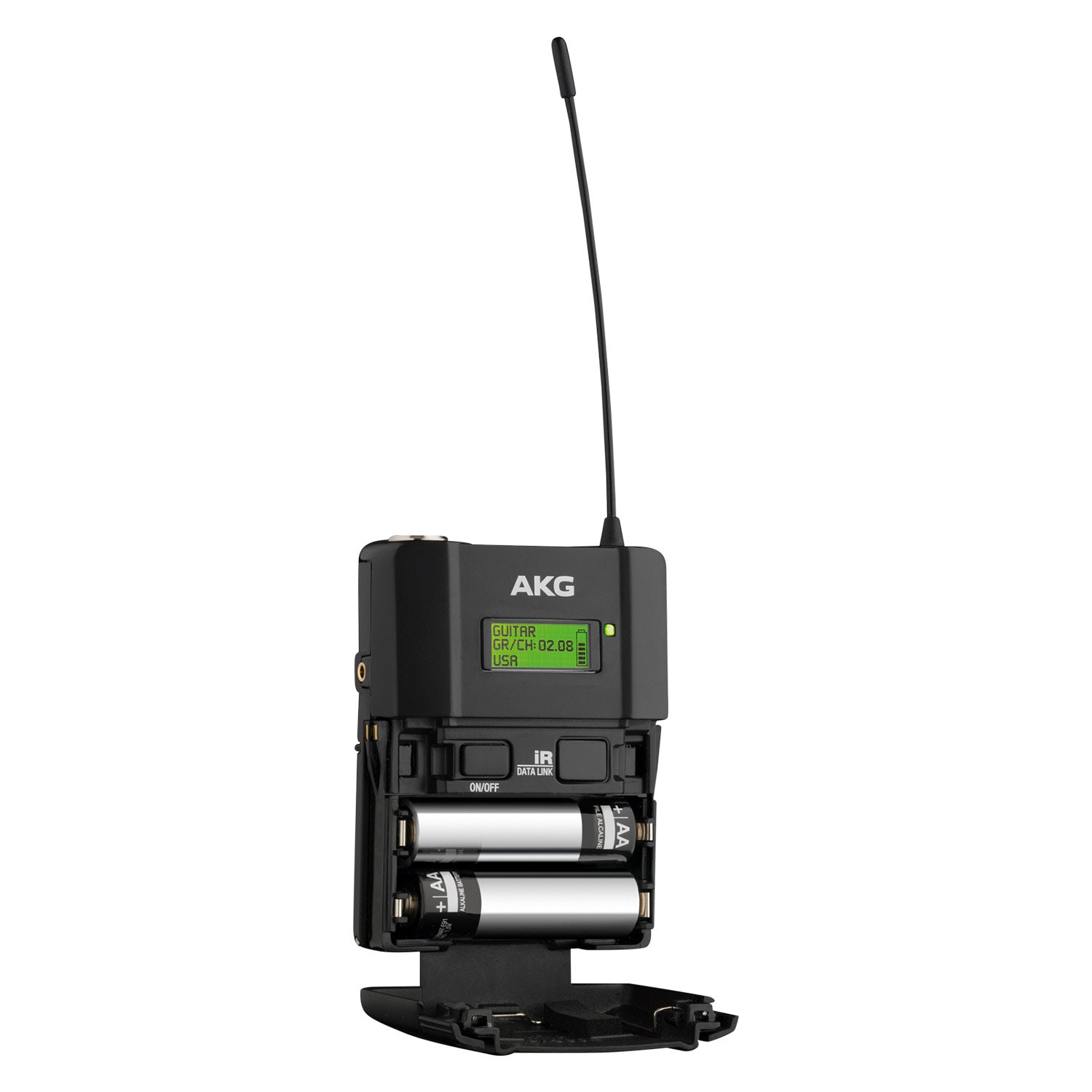

AKG DPT800 - Bodypack Transmitter for DMS800 Wireless (Band 1 / 550-663 MHz)
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DPT800 reference digital wireless body-pack transmitter, for use with the DSR800 wireless receiver, provides an ultra-wide bandwidth of 150 MHz and a selectable radio output power of 10- 50mW (depending on frequency band). For convenience and versatility, the transmitter can be programmed remotely via infrared data transmission from the DSR800 receiver, and signal security is ensured through the use of 512-bit encryption technology. The DPT800 features an optional external mute/power switch that allows muting and on/off operation even when the transmitter is hard to access. The three-pin mini XLR audio input is compatible with any AKG lavalier and head-worn microphone and provides a bias voltage of 5V.
| Finish | Black |
| Carrier frequency range | Band 1 = 550.1 Ð 662.9 MHz |
| Switching bandwidth | ² 150 MHz (country-dependent) |
| Transmission power | 10, 20 mW (ERP max.), can be set via menu (country-dependent) |
| Scatter | ² -70 dBc |
| Antenna | 1/4 Wave |
| Audio input | 3_pol. Mini_XLR socket (3.0 Vrms max.) |
| Audio input gain | 0 dB, +10 dB, +20 dB switchable |
| Operating time | Up to 6.5 hours |
| Dimensions | Length 82 mm Height 65 mm Width 28 mm |
| Net Weight | 150 g |
The DPT800 reference digital wireless body-pack transmitter, for use with the DSR800 wireless receiver, provides an ultra-wide bandwidth of 150 MHz and a selectable radio output power of 10- 50mW (depending on frequency band). For convenience and versatility, the transmitter can be programmed remotely via infrared data transmission from the DSR800 receiver, and signal security is ensured through the use of 512-bit encryption technology. The DPT800 features an optional external mute/power switch that allows muting and on/off operation even when the transmitter is hard to access. The three-pin mini XLR audio input is compatible with any AKG lavalier and head-worn microphone and provides a bias voltage of 5V.
| Finish | Black |
| Carrier frequency range | Band 1 = 550.1 Ð 662.9 MHz |
| Switching bandwidth | ² 150 MHz (country-dependent) |
| Transmission power | 10, 20 mW (ERP max.), can be set via menu (country-dependent) |
| Scatter | ² -70 dBc |
| Antenna | 1/4 Wave |
| Audio input | 3_pol. Mini_XLR socket (3.0 Vrms max.) |
| Audio input gain | 0 dB, +10 dB, +20 dB switchable |
| Operating time | Up to 6.5 hours |
| Dimensions | Length 82 mm Height 65 mm Width 28 mm |
| Net Weight | 150 g |
