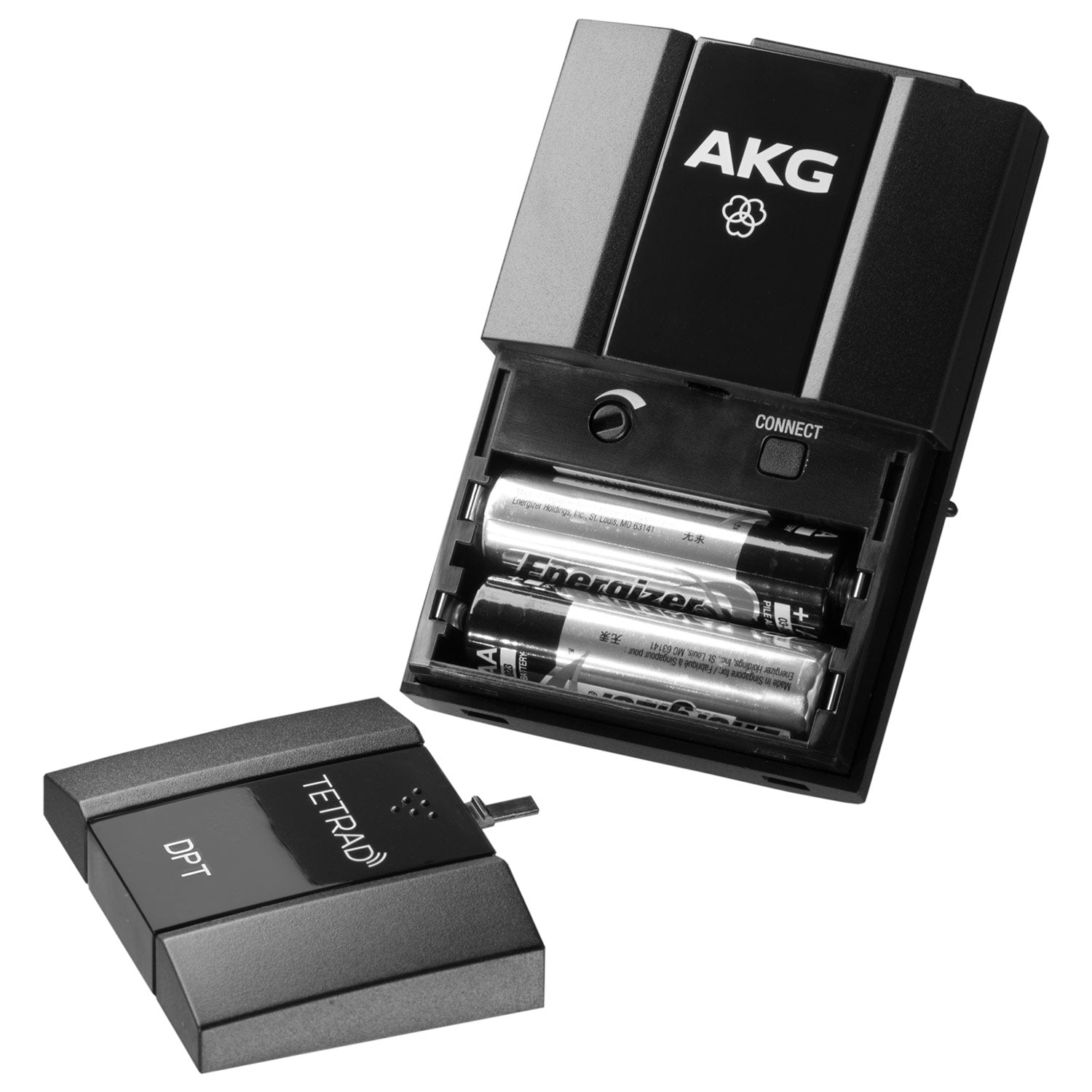

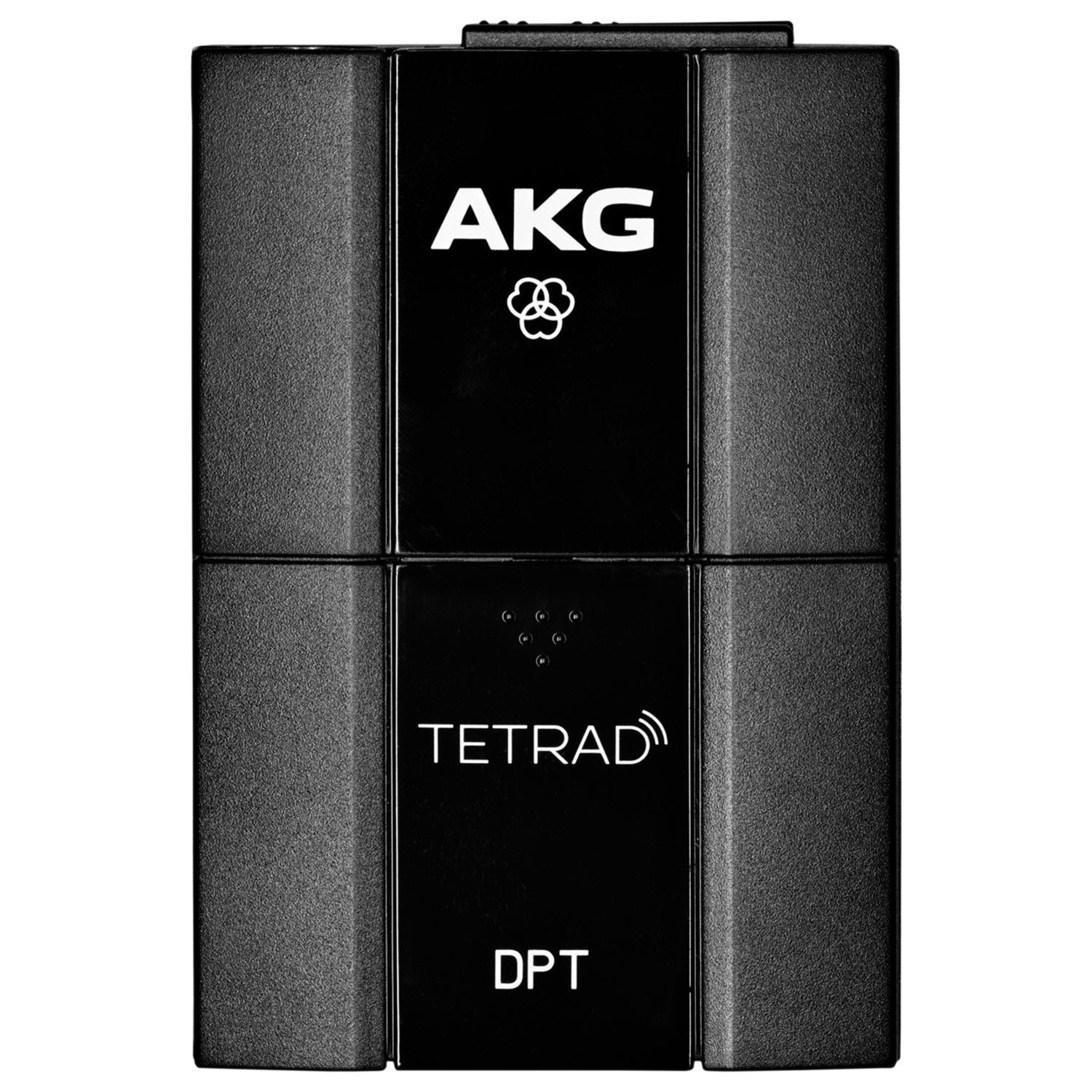

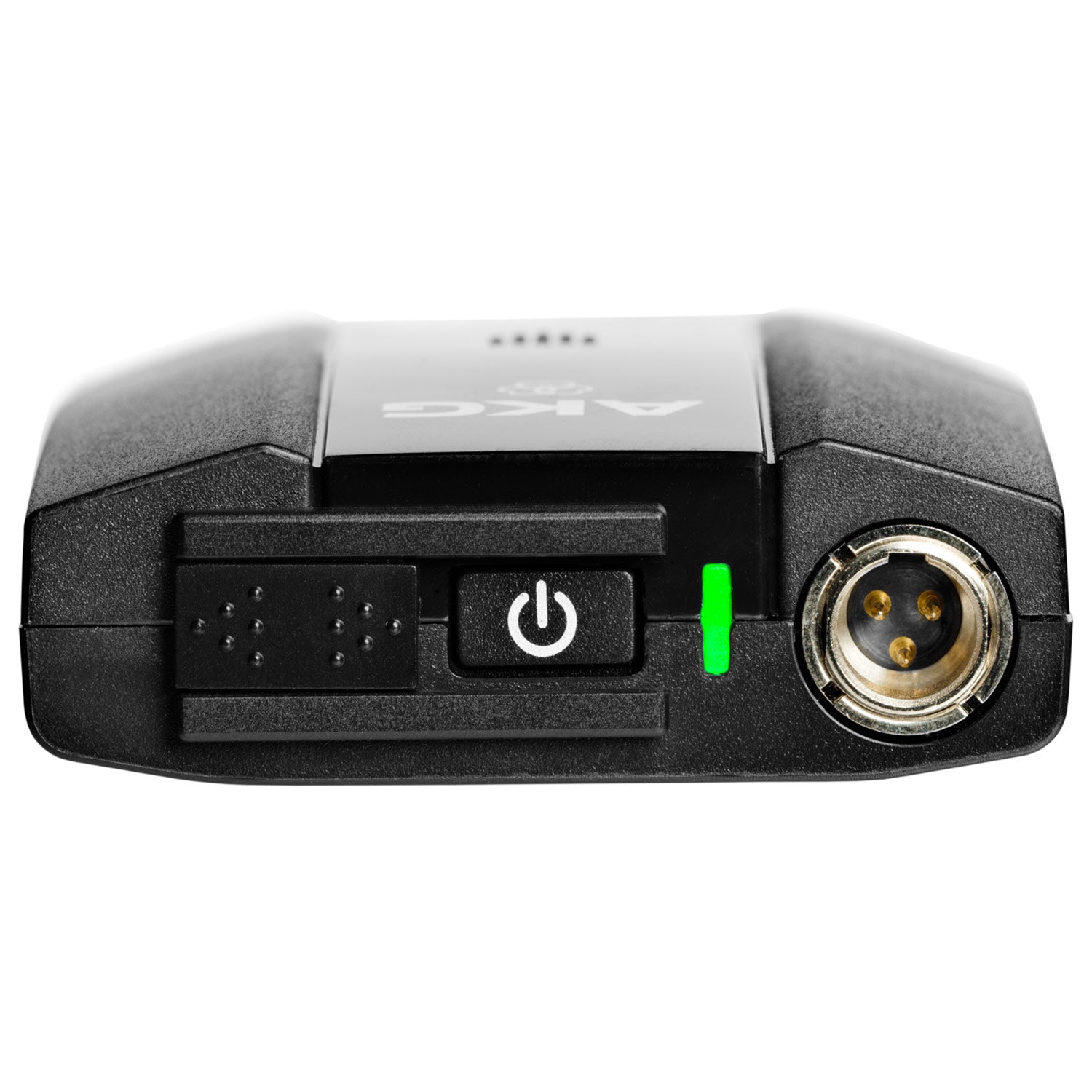

AKG DPTTetrad Pocket Transmitter for DMSTetrad Wireless
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DMSTetrad is a professional digital 2.4GHz wireless microphone system for license free operation with 10mW in Europe and 100mW outside of Europe. With 24bit, 48kHz audio coding, it provides uncompressed studio-quality transmission and a linear frequency response - great for uncompromising vocal and instrumental performances. With 128bit AES standard encryption to prevent tapping of the audio signal, it is also a perfect companion for high-security conferences.
The system can be set up very quickly and can be ready to be use in seconds. The DSRTetrad receiver can work with up to four channels of audio in parallel which can be mixed down directly to its balanced XLR sum output. Together with the dynamic frequency selection (DFS), time and antenna diversity function, and the world's first implemented innovative DROCON technology, the system promises to deliver a clean and uncompromising vocal and instrumental performance.
Features:
- Belt clip upside/down
- Easy setup functions designed for less experienced operators
- Auto power off
- Low battery warning
- Adjustable input level (mic-guitar)
- Integrated screw driver for gain control
- 5 V phantom power
- Recommended microphones: C111 L, CK97 C/L, HC577 L and CK77 WR-L
| RF Output | Max. 100 mW, 10 mW for EU |
| Gain control | 0 (2,2 Vrms) Ð 30 dB (70 mVrms) max input-level: < 3 Vrms (gain = min) |
| Overall dynamic range | Typ. 120 dB(A) |
| Powering | 2x AA Alkaline ~6h , 2x AA NiMH ~7h |
| Dimensions | 92 mm _ 64 mm _ 22 mm |
| Net / Shipping Weight | 70 g |
| Standard Accessories | 2x AA batteries, 1x instrument cable MKG L, 1x ear hook microphone C111 LP |
The DMSTetrad is a professional digital 2.4GHz wireless microphone system for license free operation with 10mW in Europe and 100mW outside of Europe. With 24bit, 48kHz audio coding, it provides uncompressed studio-quality transmission and a linear frequency response - great for uncompromising vocal and instrumental performances. With 128bit AES standard encryption to prevent tapping of the audio signal, it is also a perfect companion for high-security conferences.
The system can be set up very quickly and can be ready to be use in seconds. The DSRTetrad receiver can work with up to four channels of audio in parallel which can be mixed down directly to its balanced XLR sum output. Together with the dynamic frequency selection (DFS), time and antenna diversity function, and the world's first implemented innovative DROCON technology, the system promises to deliver a clean and uncompromising vocal and instrumental performance.
Features:
- Belt clip upside/down
- Easy setup functions designed for less experienced operators
- Auto power off
- Low battery warning
- Adjustable input level (mic-guitar)
- Integrated screw driver for gain control
- 5 V phantom power
- Recommended microphones: C111 L, CK97 C/L, HC577 L and CK77 WR-L
| RF Output | Max. 100 mW, 10 mW for EU |
| Gain control | 0 (2,2 Vrms) Ð 30 dB (70 mVrms) max input-level: < 3 Vrms (gain = min) |
| Overall dynamic range | Typ. 120 dB(A) |
| Powering | 2x AA Alkaline ~6h , 2x AA NiMH ~7h |
| Dimensions | 92 mm _ 64 mm _ 22 mm |
| Net / Shipping Weight | 70 g |
| Standard Accessories | 2x AA batteries, 1x instrument cable MKG L, 1x ear hook microphone C111 LP |
