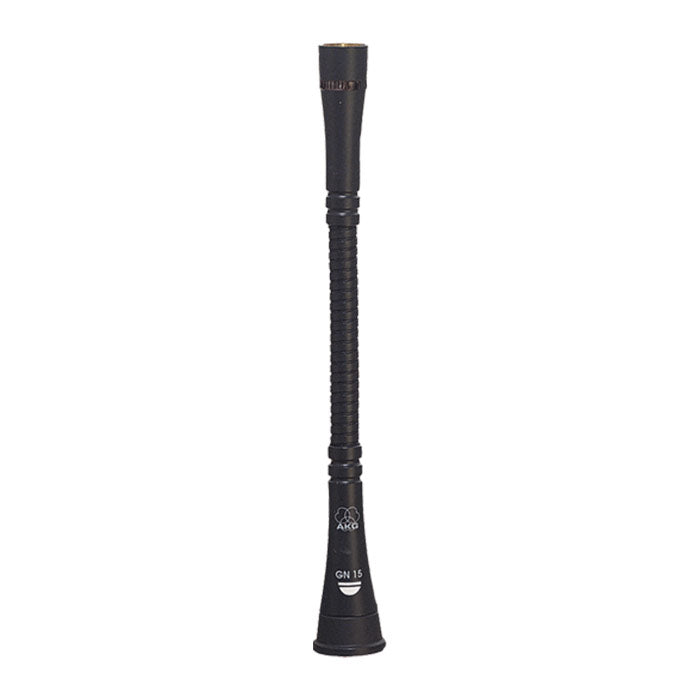

AKG GN15 6" Permanent Screw-on Installation Gooseneck Module for CK Series Capsules
Availability:
Special Order ItemThis item is not stocked and needs to be ordered from the manufacturer. Please contact our sales team for more information.
Description
The DAM Series GN gooseneck modules for permanent screw-on installation are available in three different lengths: 15cm (6in), 30cm (12in), 50cm (20in). Except for the GN30 OC with unterminated cable ends, all come with an in-line XLR phantom power adapter with integrated 250Hz bass rolloff, LED ring and ON/OFF jumper. A mini XLR connector eliminates the need for large holes in the furniture or time-consuming soldering work during installation. The gooseneck module fits all DAM Series capsules, CK31, CK32, CK33, CK47 and CK80, via highly reliable contacts.
The external phantom power adapter of the GN series makes setting up the goosenecks much easier, since a small hole will suffice for threading through a mini XLR connector. Having disconnected the cable, the integrated bass cut can be set quite easily inside the phantom power adapter. The phantom power adapter will operate off any available phantom power supply from 9 to 52 V, powering both the condenser capsule and the LED ring.
| Bass filter | 250 Hz, -10 dB at 50 Hz |
| Impedance | <=600 ohms |
| Recommended load impedance | >=2,000 ohms |
| Supply voltage | 9 to 52 V phantom power to DIN/IEC |
| Powering | <3 mA |
| Connector | 3-pin male XLR; GN 30 oc: stripped and tinned leads |
| Cable | 1.5 m (5 ft.) |
| Finish | matte dark grey |
| Net weight | GN 15: 72 g (2.5 oz.), |
| Shipping weight | GN 15: 400 g (14.1 oz.) |
The DAM Series GN gooseneck modules for permanent screw-on installation are available in three different lengths: 15cm (6in), 30cm (12in), 50cm (20in). Except for the GN30 OC with unterminated cable ends, all come with an in-line XLR phantom power adapter with integrated 250Hz bass rolloff, LED ring and ON/OFF jumper. A mini XLR connector eliminates the need for large holes in the furniture or time-consuming soldering work during installation. The gooseneck module fits all DAM Series capsules, CK31, CK32, CK33, CK47 and CK80, via highly reliable contacts.
The external phantom power adapter of the GN series makes setting up the goosenecks much easier, since a small hole will suffice for threading through a mini XLR connector. Having disconnected the cable, the integrated bass cut can be set quite easily inside the phantom power adapter. The phantom power adapter will operate off any available phantom power supply from 9 to 52 V, powering both the condenser capsule and the LED ring.
| Bass filter | 250 Hz, -10 dB at 50 Hz |
| Impedance | <=600 ohms |
| Recommended load impedance | >=2,000 ohms |
| Supply voltage | 9 to 52 V phantom power to DIN/IEC |
| Powering | <3 mA |
| Connector | 3-pin male XLR; GN 30 oc: stripped and tinned leads |
| Cable | 1.5 m (5 ft.) |
| Finish | matte dark grey |
| Net weight | GN 15: 72 g (2.5 oz.), |
| Shipping weight | GN 15: 400 g (14.1 oz.) |
