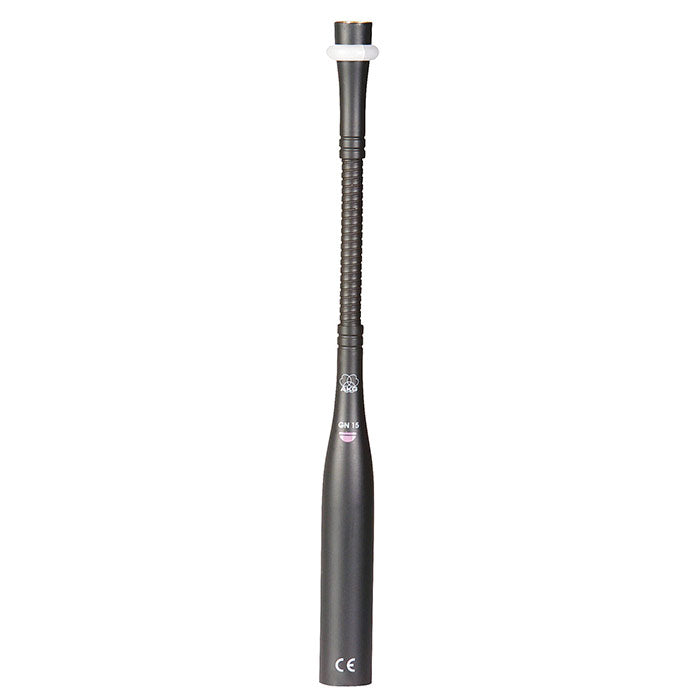

AKG GN15E 6" Gooseneck Module for CK Series Capsules - XLR Connector


  • Dale #:

    AKG-2765H00020
  • Availability:

    Not in Stock - Reserve Yours
  • This item is not in stock and needs to be ordered from the manufacturer. Your payment will be charged after completing checkout. We will strive to ship as soon as possible, pending availability.

Description

All E-Series modules come with an integrated connector for quick setup and takedown. The goosenecks are available in various lengths. GN 15 E: 23.5 cm (9.2 in.); GN 30 E: 38 cm (15 in.); GN 50 E: 57.2 cm (22.3 in.). Of course the series also has an integrated 200 Hz bass rolloff filter and LED ON... Read More

Free Shipping (Continental US)

Have a Question?

Call Toll Free: 888-462-7828 Live Chat Email Us

Suggested Accessories

Description

All E-Series modules come with an integrated connector for quick setup and takedown. The goosenecks are available in various lengths. GN 15 E: 23.5 cm (9.2 in.); GN 30 E: 38 cm (15 in.); GN 50 E: 57.2 cm (22.3 in.). Of course the series also has an integrated 200 Hz bass rolloff filter and LED ON/OFF jumper. See product images for mounting examples.

Features

  • Rugged construction
  • Highly reliable contacts for capsule modules
  • Integrated LED ring status indicator
  • Integrated, switchable bass cut
  • Integrated XLR connector

    An essential feature of the installation hardware described below is the attenuation of structureborne noise that prevents the transmission of unwanted noise (footfall etc.). The amount of attenuation is determined by the material mix of the rubber shock mount. Modular Series installation modules usea mixture that is extremely efficient at frequencies below 200 Hz (e.g., knocking noise). Unlike standard rubber mixturees that respond to vibrations very slowly, the special AKG rubber mixture absorbs vibrations practically immediately. This prevents successive shocks from adding up. This rubber mixture is used in the H 600 and H 500.

More +

Product Specs

Bass filter250 Hz, -10 dB at 50 Hz
Impedance <=600 ohms
Recommended load impedance>=2,000 ohms
Supply voltage 9 to 52 V phantom power to DIN/IEC
Powering<3 mA
Connector 3-pin male XLR
Finish matte dark grey
Net weightGN 15 E: 112 g (3.9 oz.)
Shipping weightGN 15 E: 396 g (13.9 oz.)

More +
